Zodiak — User Manual 75
E-MEM (Effects Memory)
300 Mode E-MEM Operation
The proceeding discussion explained the Normal E-MEM operating mode.
300 Mode is an alternative Master E-MEM method of operation that
mimics the behavior of the Grass Valley Group Model 300 switcher. In this
mode, Master E-MEM Learn operations store the register numbers of the
individual M/Es, allowing the recall of different combinations of M/E reg-
isters with a single button press (
Figure 41 ).

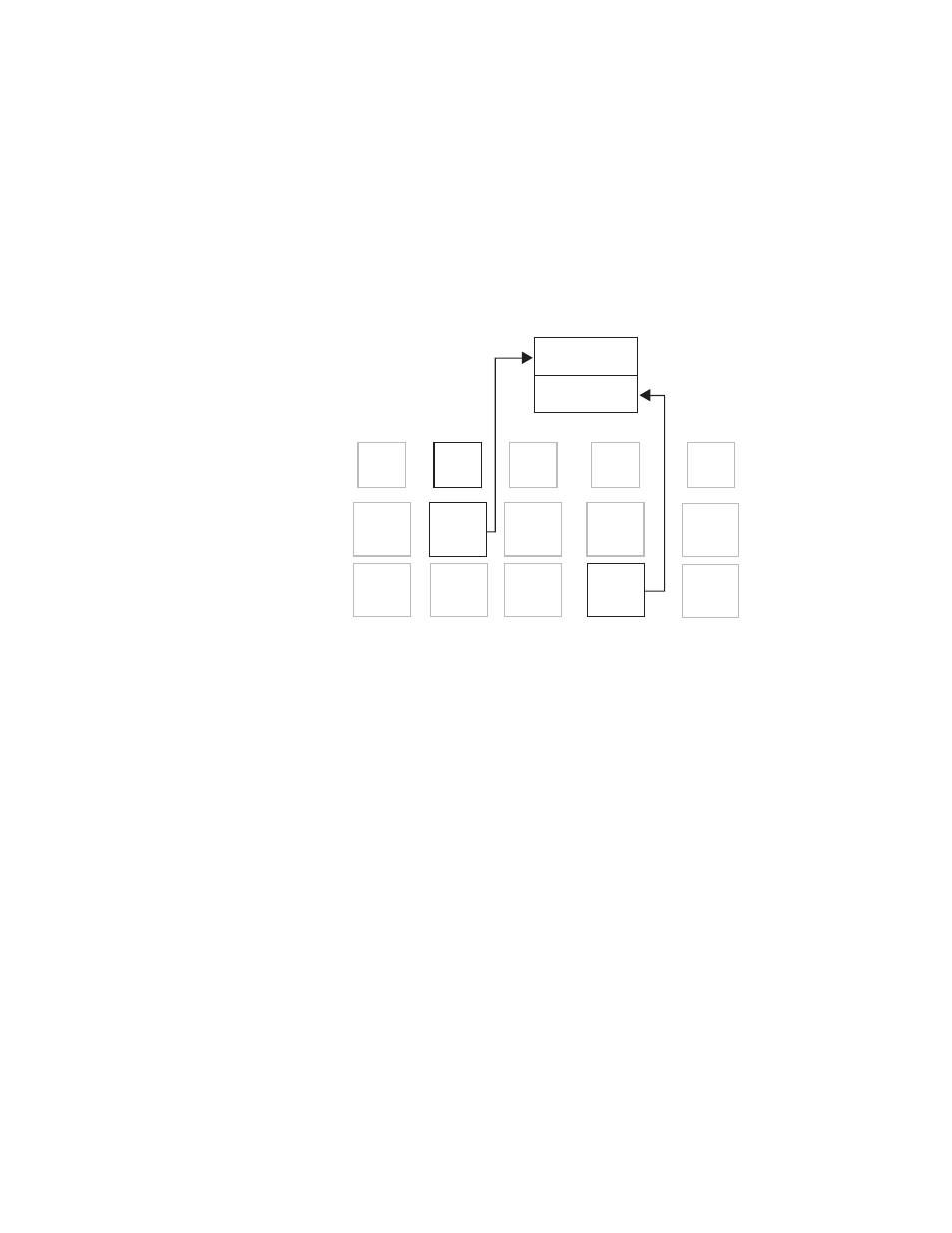

Figure 41. E-MEM 300 Mode Diagram
Effect
1
1
Work Buffer
300 Mode
Operation
Effect
Registers
0 2
M/E 1
M/E 2
8126_07_01_r0
Current
Effect
Master
E-MEM
Effect
3
3
M/E 1
Register 1 Data
M/E 2
Register 3 Data
Effect
Levels
1
3
1 1
3
3 2
3
1 23
13
13 M/E 1 = 1
M/E 2 = 3
M/E 3 = 2
