340 Zodiak — User Manual
Section 4 — Menus Overview
Keyer Mask Menu
Touching the Mask subcategory button takes you to the Keyer Mask Point
of Use menu ( Figure 240 ). The Mask menu allows selection and control of
the keyer mask(s). Key masking defines areas that are protected from
keying (Inhibit) or always key (Force). The shape of the mask can originate
from a wipe pattern generator or by a selected mask signal (typically a key
fill signal delivered via the Utility bus). Masking can only be done on M/E
keyers.
The M/E ( M/E 1 or M/E 2 ) and keyer delegation ( K1 – K4 ) is made at the top
left of the screen. Once a keyer has been delegated, choose the type of mask
(
Force or Inhibit, or both) from the data pad in the lower left corner. The
example shown here is for a Box Inhibit mask on M/E 1 Key 1.

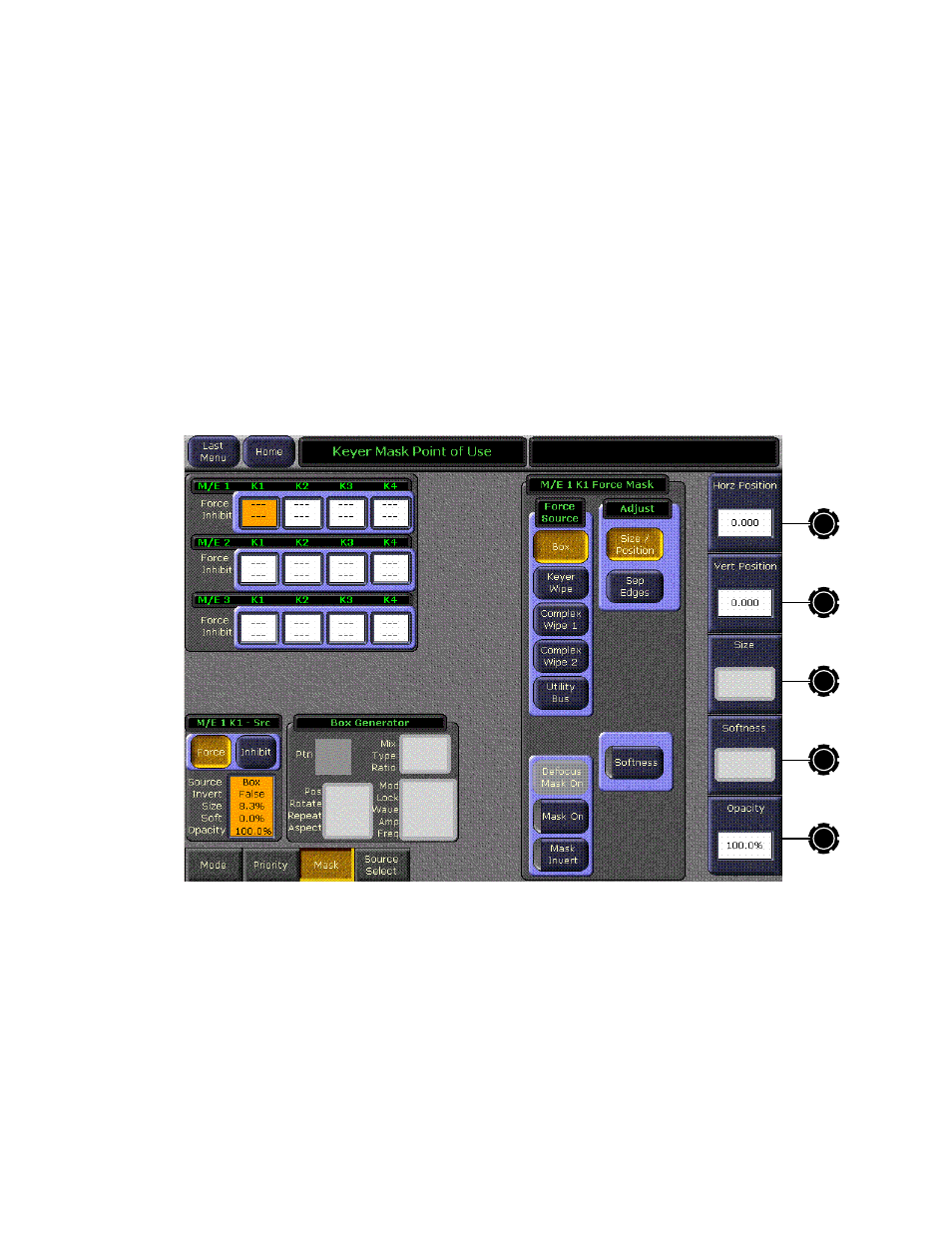

Figure 240. Keyer Mask Point of Use Menu
Mask Sources
For either type of selected mask (Force or Inhibit) five different mask
sources are available and will appear in the data pad on the right of the
screen. Only one mask source can be selected at a time.
