124 Zodiak — User Manual
Section 3 — Control Surface Description
Fade to Black Subpanel
Pressing the Fade To Black button fades the switcher’s Program output to
black at the transition rate shown in the display to the right of the button
(
Figure 81 ). The button will light to indicate that a fade to black transition
is in progress.
When the switcher is fully faded to black, the button remains lit and the
crosspoint buttons on the PGM row low tally.

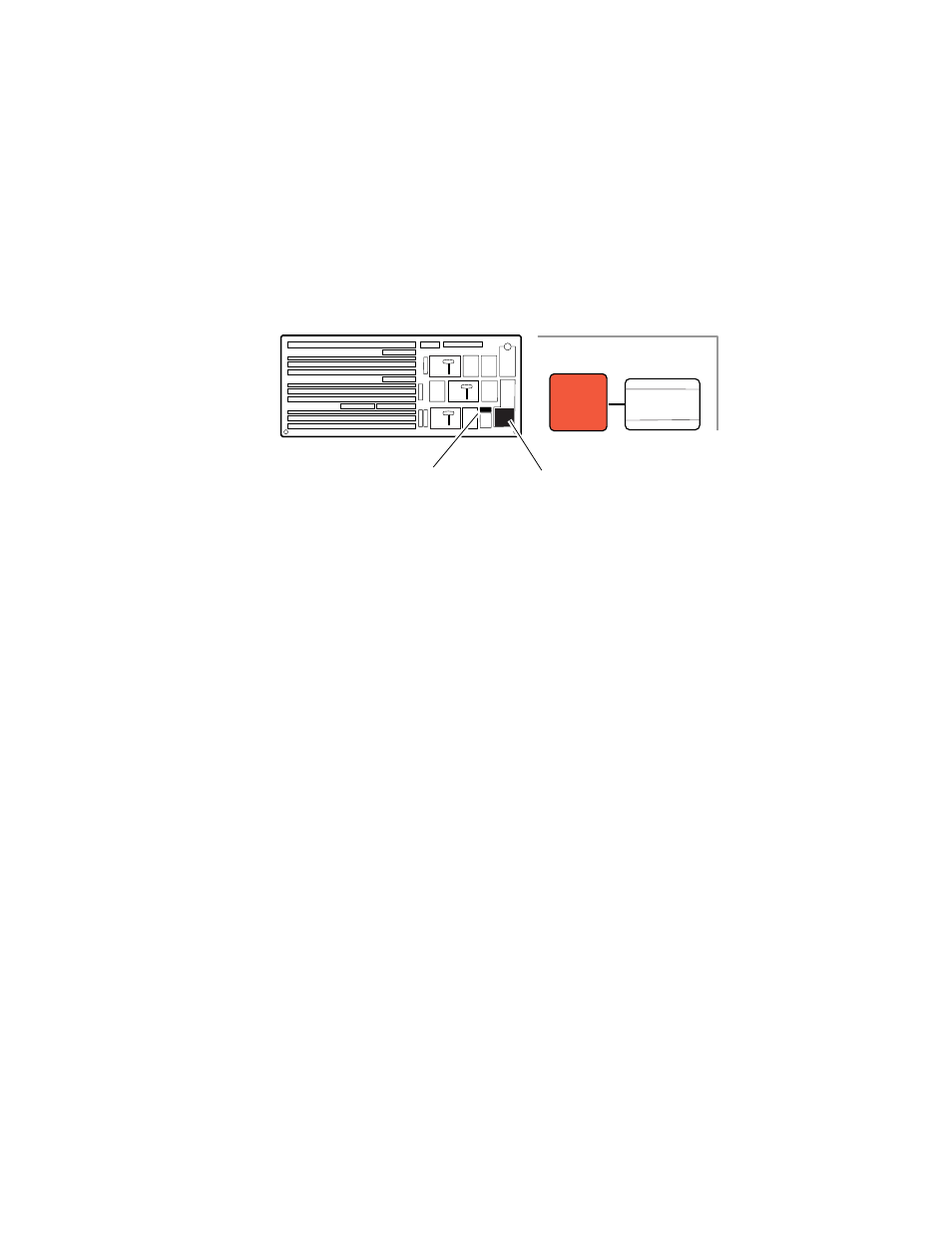

Figure 81. Fade To Black Subpanel
A fade to black transition can be reversed by pressing the Fade To Black
button while it is lit. Pressing the button during a fade to black transition
will immediately reverse the transition towards black and proceed to the
next transition on the PGM bus at the same transition rate.
The fade to black transition rate is set using the Master E-MEM keypad
(
Figure 81 ). To set the fade to black transition rate do the following:
1. Press the Tran Rate button in the Master E-MEM keypad. The Auto Tran
button in the DSK Transition subpanel, the three DSK Mix buttons in the
DSK subpanel, and Fade To Black button will flash to indicate they are in
the rate setting mode.
2. Press the flashing Fade To Black button to delegate the Master E-MEM
keypad to setting the fade to black transition rate. The current rate will
appear in the display.
3. Make a time entry using the keypad and press Enter to finalize the value.
Refer to Time Value Entry on page 101 for complete instructions on how
to make a time value entry.
