SmartServer
2.2 User’s Guide
89

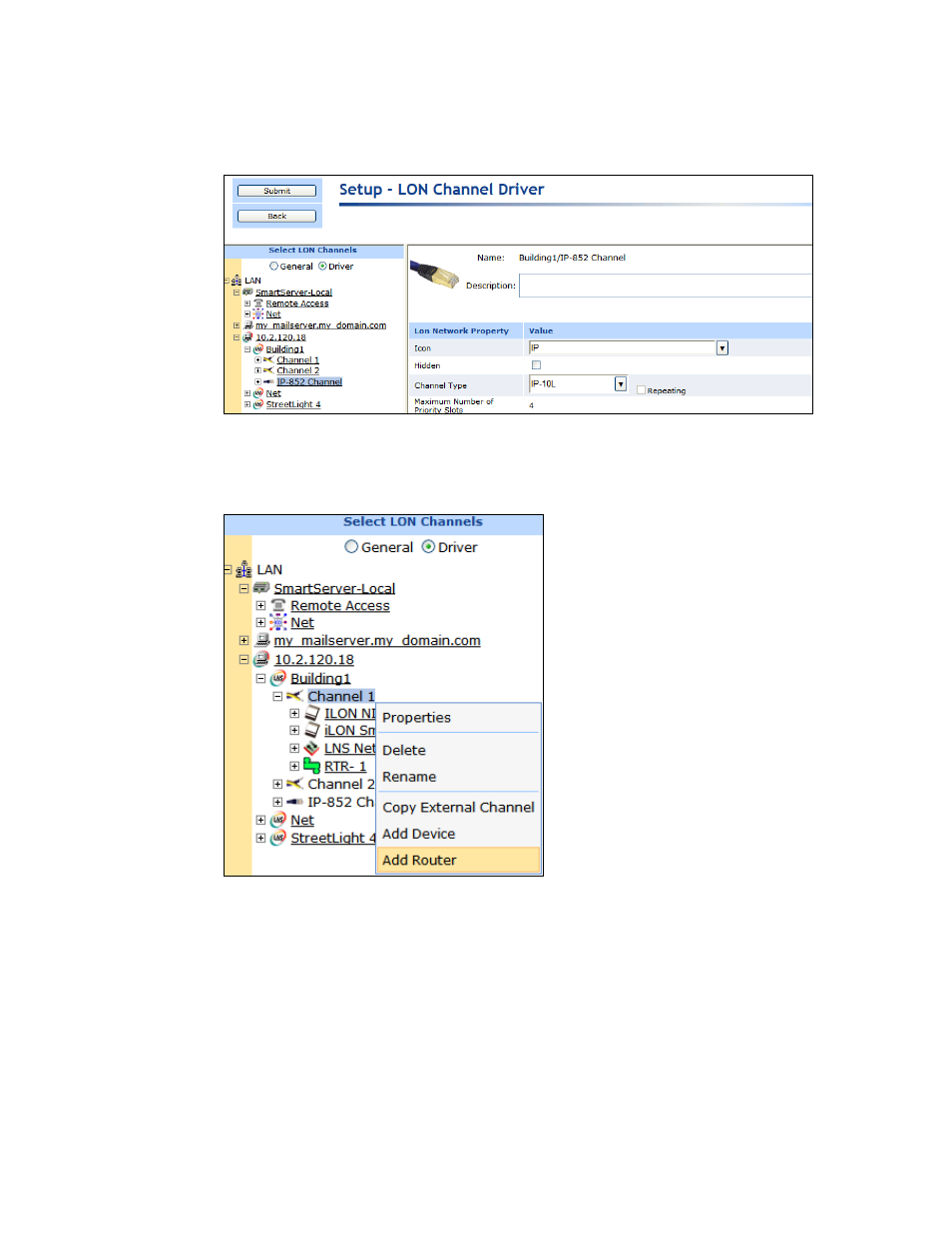

d. In the Icon property, select the IP icon; in the Channel Type property, select IP-10L (if
using a local IP network) or IP- 10W (if using a wide area IP network); and then click
Submit.
5. Add a router between the L
ON
W
ORKS
channel closest to the OpenLNS network interface and the
IP-852 channel. To do this follow these steps:
a. Right-click the L
ON
W
ORKS
channel closest to the OpenLNS network interface and then click
Add Router on the shortcut menu.
b. The Add Router dialog opens. Enter a descriptive name for the IP-852 router on the
SmartServer such as “IP-852 Router (SmartServer)”, select the IP-852 channel created in step
4 in the Target Channel property, and then click OK.
