SmartServer 2.2 User’s Guide 287
Creating M-Bus Channels
To add an M-Bus channel to the local SmartServer network, follow these steps:

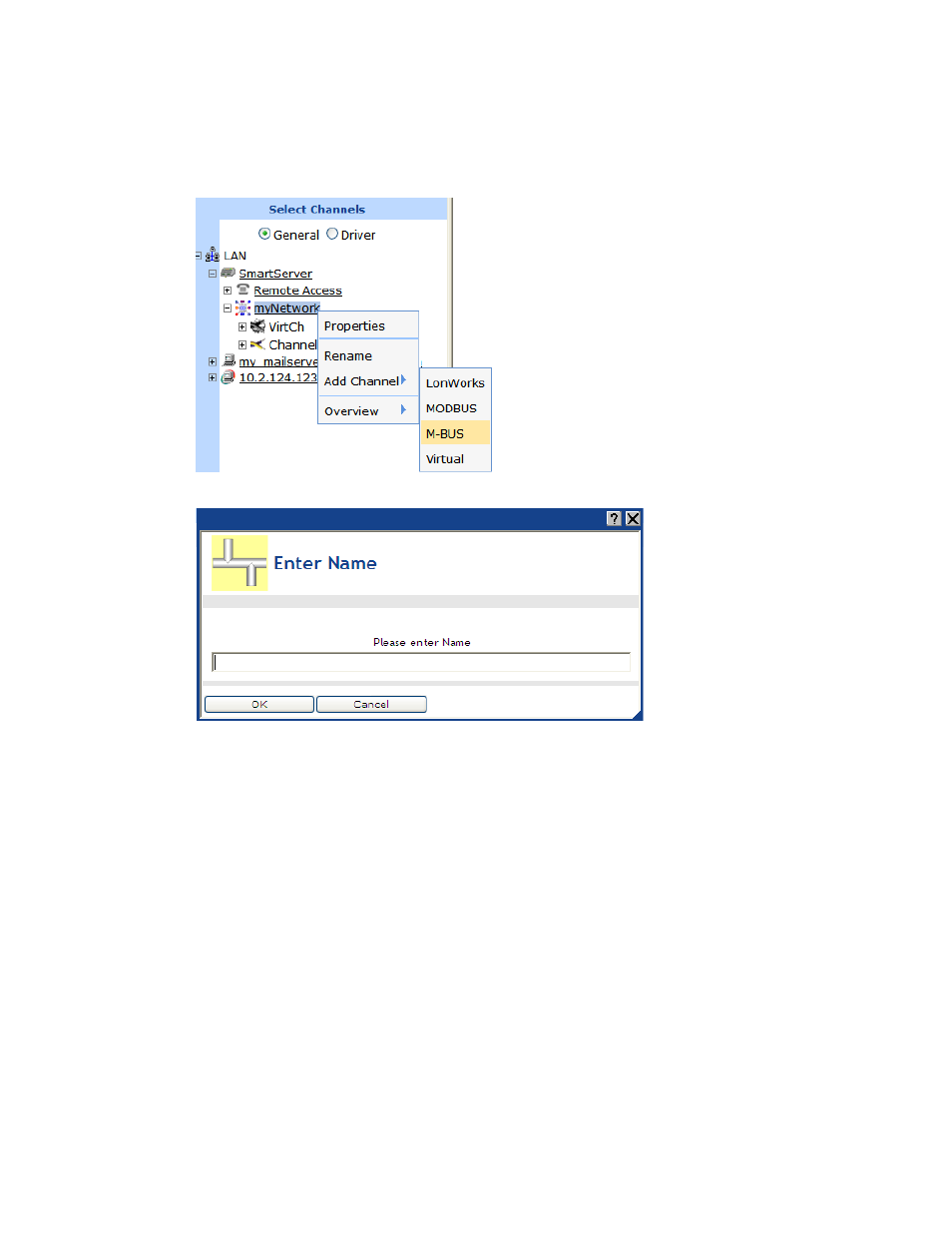

1. Right-click the network icon, point to Add Channel, and then select M-Bus.
2. The Enter Name dialog opens.
3. Enter a name for the M-Bus channel that is unique to the network and then click OK.
4. The M-Bus channel is added to the bottom of the SmartServer tree.
5. Click Submit.
Configuring M-Bus Channels
You can use the M-Bus driver properties to change the transmission mode and properties. To
configure the M-Bus channel properties, follow these steps:
1. Click Driver.
2. Select one or more M-Bus channels to be configured.
3. The Setup - M-Bus Channel Driver Web page opens.
