SmartServer 2.2 User’s Guide 449
3. Select and configure a mathematical or logical operation.
4. Select a scalar or SNVT_switch output point and specify override behavior.
Opening an Analog Functional Block Application
To open an Analog Functional Block application, you must first create an analog functional block.
After you create the analog functional block, it appears on the SmartServer tree below the i.LON App
(internal) device, and you can click the functional block to open the Analog Functional Block
application.
To create an Analog Functional Block and open the application, follow these steps:
1. Click General above the navigation pane in the left frame of the SmartServer Web interface.
2. Expand the network icon in the SmartServer tree, and then expand the LON channel to show the
i.LON App (Internal) device.

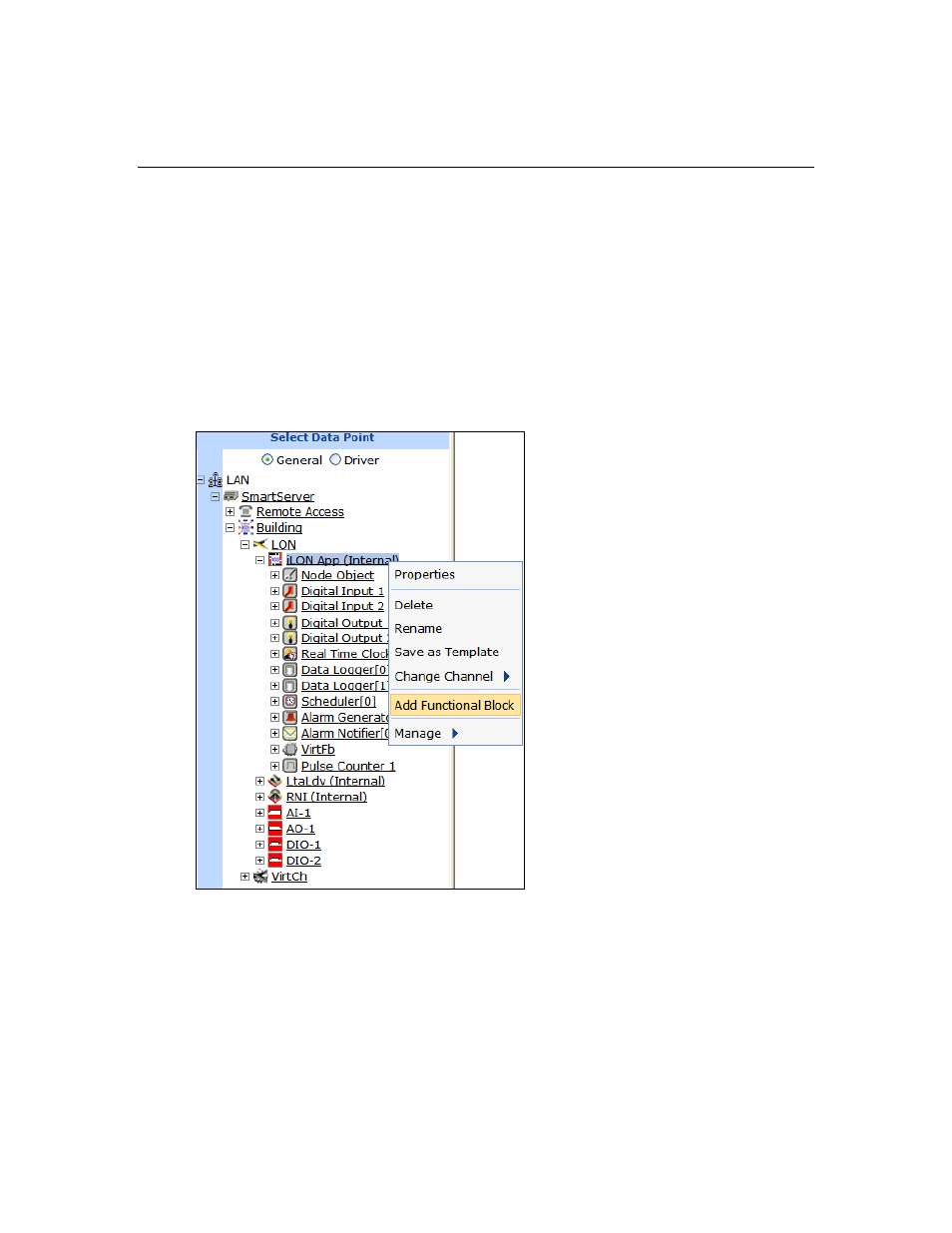

3. Right-click the i.LON App (Internal) device and then select Add Functional Block in the
shortcut menu.
4. The Add Functional Block dialog opens.
