SmartServer 2.2 User’s Guide 59
PIN Number If you are using an External GSM modem, enter the PIN (maximum 30
characters) to be sent to the external modem in order for it to transmit or
receive calls.
3. Click Submit.

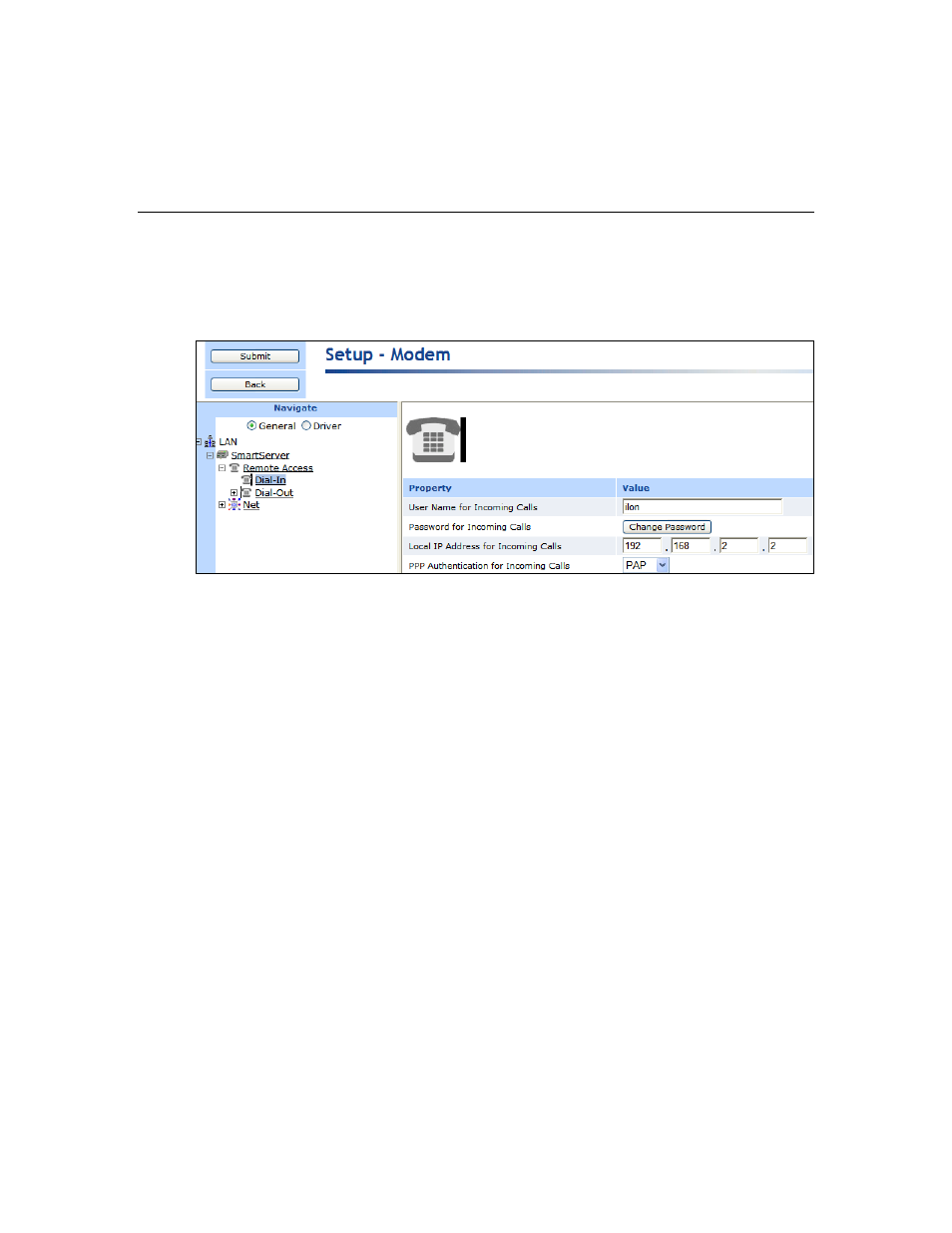

Configuring Dial-in Connections
You can enable the SmartServer to be accessed remotely via a dial-in connection. To do this, follow
these steps:
1. In the navigation pane directly under the Remote Access modem icon, click the Dial-In modem
icon.
2. Set the following properties:
User Name for
Incoming Calls Enter the user name (maximum 30 characters) that a caller must provide to
connect to the SmartServer via modem. The default user name is ilon.
Change this name for enhanced security.
Password for
Incoming Calls Click Change Password to enter and then re-enter the password
(maximum 30 characters) that the caller must provide to connect to the
SmartServer via modem. The default password is ilon. Change this
password for enhanced security.
Local IP Address for
Incoming Calls Enter the IP address that will be assigned to incoming calls by the
SmartServer. The default IP address is 198.162.2.2.
Note: The local IP address must be outside the range of the SmartServer’s
Ethernet IP connection. For example, do not use 192.168.1.0 to
192.168.1.255 for the local IP address if you are using the SmartServer’s
default IPv4 address (192.1.168.222).
In addition, do not enter 0 or 254 in the last field of the IP address because
other services may need to use these values. In addition, do not enter 255
in the last field of the IP address because the modem will not be able to
ping the SmartServer.
