Echelon SmartServer 2.2 - Manual (Page 293)

294 Using the SmartServer as Network Management Tool
Channel Displays the name of the channel on which the M-Bus device is attached.
Device Displays the name of the M-Bus device. In Driver mode, you can change
the name. In General mode, this field is read-only.
6. Click Submit to save any changes.
Creating and Configuring M-Bus Data Points
You can dynamically add configuration properties to the M-Bus devices on the network (you cannot
add static data points).
Creating M-Bus Data Points
To add this type of dynamic data point to an M-Bus device, follow these steps:

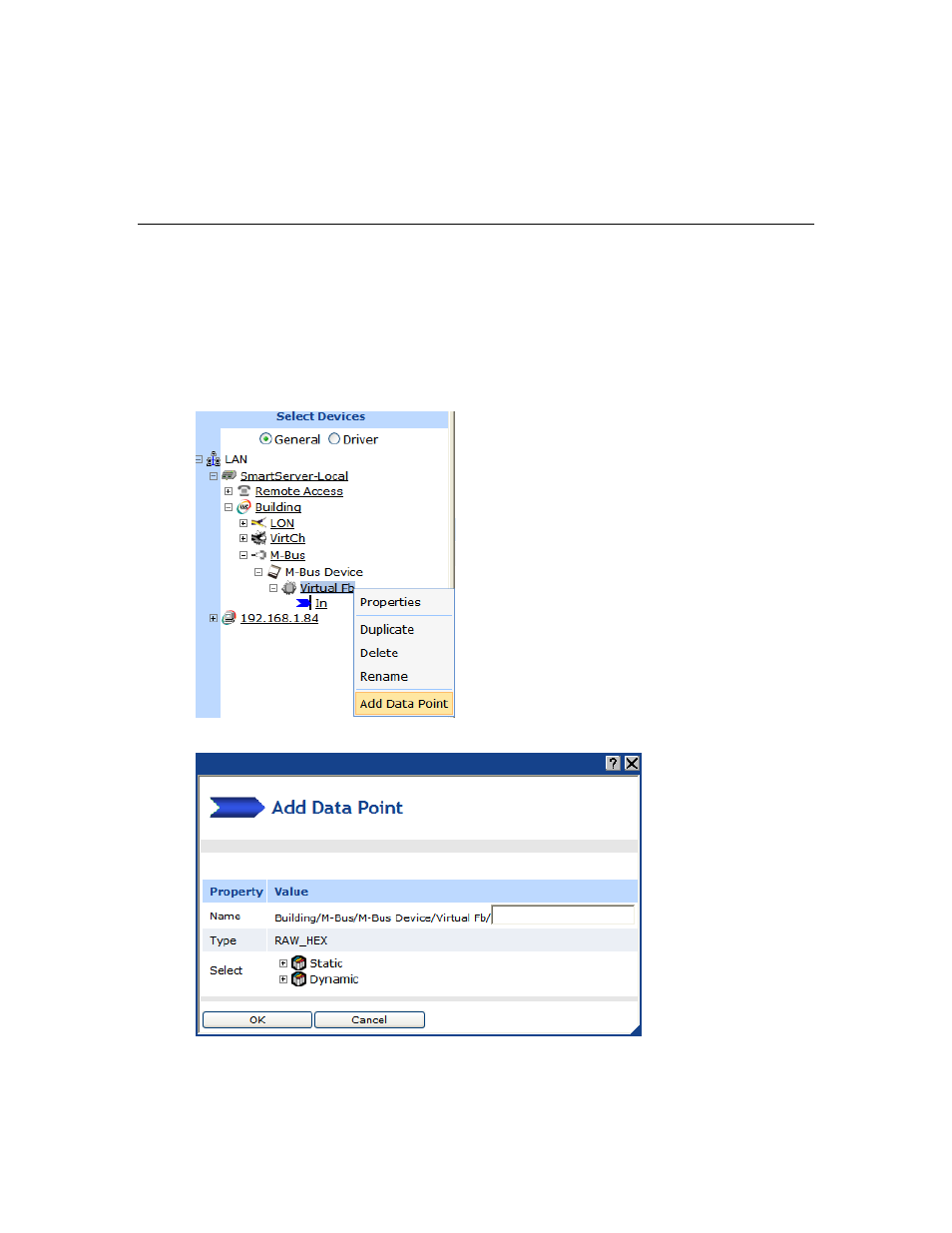

1. Right-click the virtual functional block of an M-Bus device, and then select Add Data Point on
the shortcut menu.
2. The Add Data Point dialog opens:
3. Enter the following data point properties:
Name Enter a name for the data point.
