SmartServer 2.2 User’s Guide 299

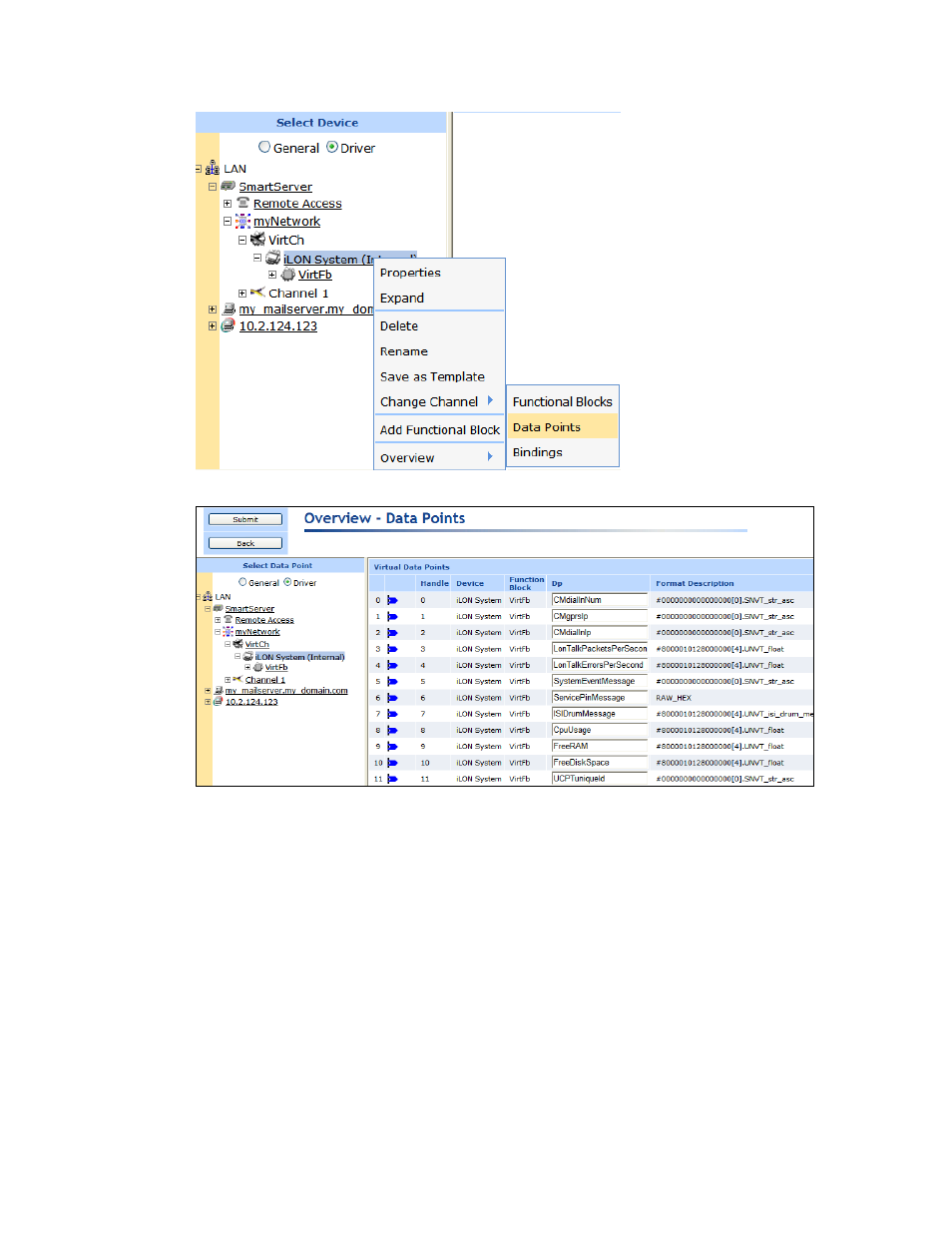

3. The Overview – Data Points Web page opens.
4. You can sort the objects listed by clicking a property header.
5. View and /or configure the following properties:
Icon/Status Displays the icon used to represent the data point in the SmartServer
tree and in the application frame (input, output, or unspecified) . If
the data point is offline, this box is red.
Handle Displays the handle assigned to the Virtual data point by the
SmartServer. This field is read-only, and is only displayed in
Driver mode; it is not displayed in General mode.
Device Displays the name of the data point's parent device, which is iLON
System. This field is read-only.
Functional Block Displays the name of the data point's parent functional block, which
is VirtFb. This field is read-only.
Dp Displays the name of the data point. In Driver mode, you can
change the name. In General mode, this field is read-only.
