Using the SmartServer as Network Management Tool
2. Right-click a L
ON
W
ORKS

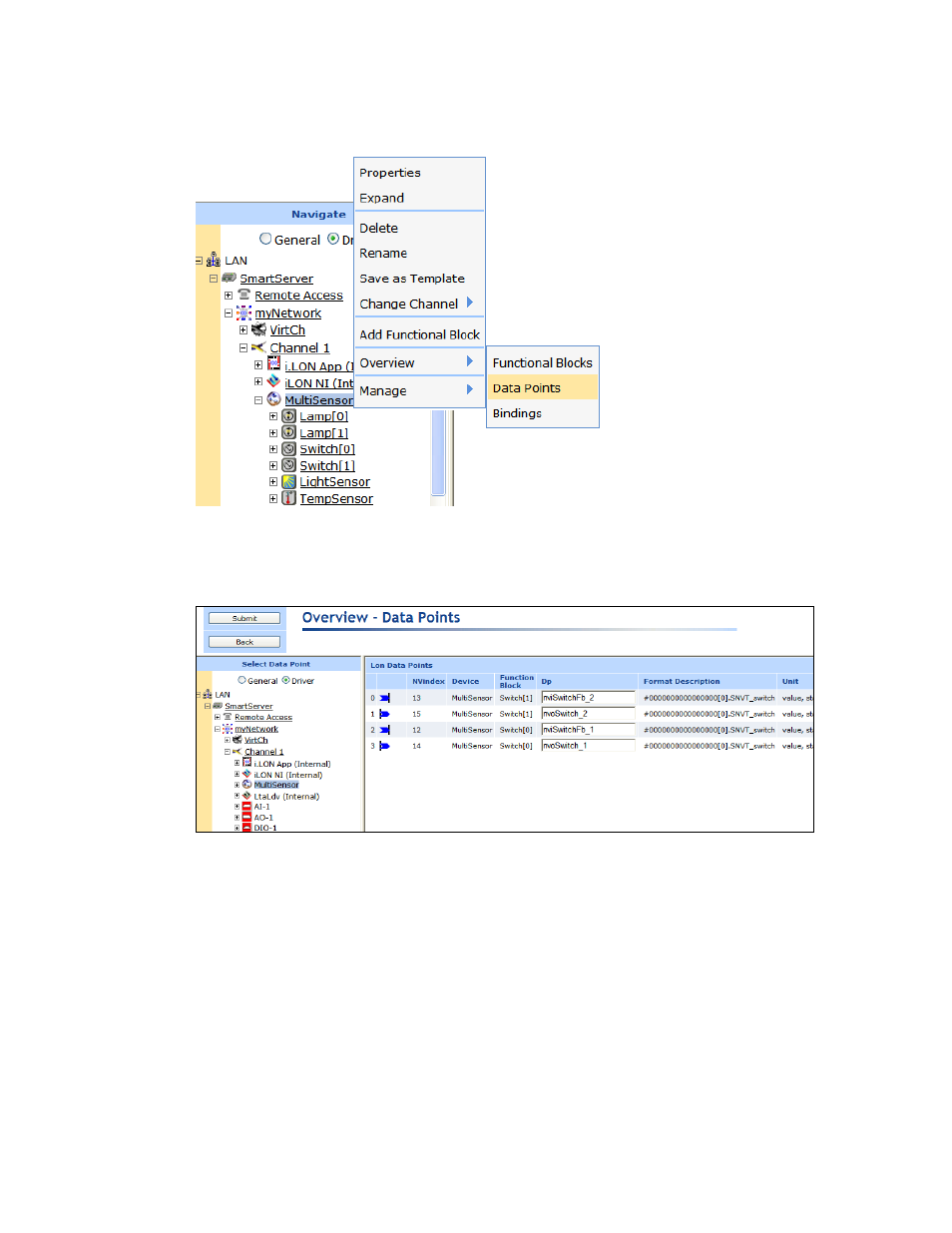

device or functional block in the SmartServer tree or OpenLNS tree,
point to Overview, and then select Data Points.
Note: You can select two or more devices or functional blocks and view all the data points on
those devices or functional blocks in the same Overview – Data Points page; however, the
SmartServer’s performance may be impacted by trying to create large lists of objects.
3. The Overview – Data Points Web page opens.
4. You can sort the objects listed by clicking a property header.
5. View and /or configure the following properties:
Icon/Status
Displays the icon used to represent the data point in the SmartServer
or OpenLNS tree and in the application frame (input, output, or
unspecified) . If the data point is offline or not synchronized with
the OpenLNS network database, this box is red or yellow,
respectively.
NV Index
Displays the index number of the data point within its associated
device. This field is read-only.
This property is only displayed in Driver mode; it is not displayed
in General mode.
Device
Displays the name of the data point's parent device. This field is
