SmartServer 2.2 User’s Guide 227

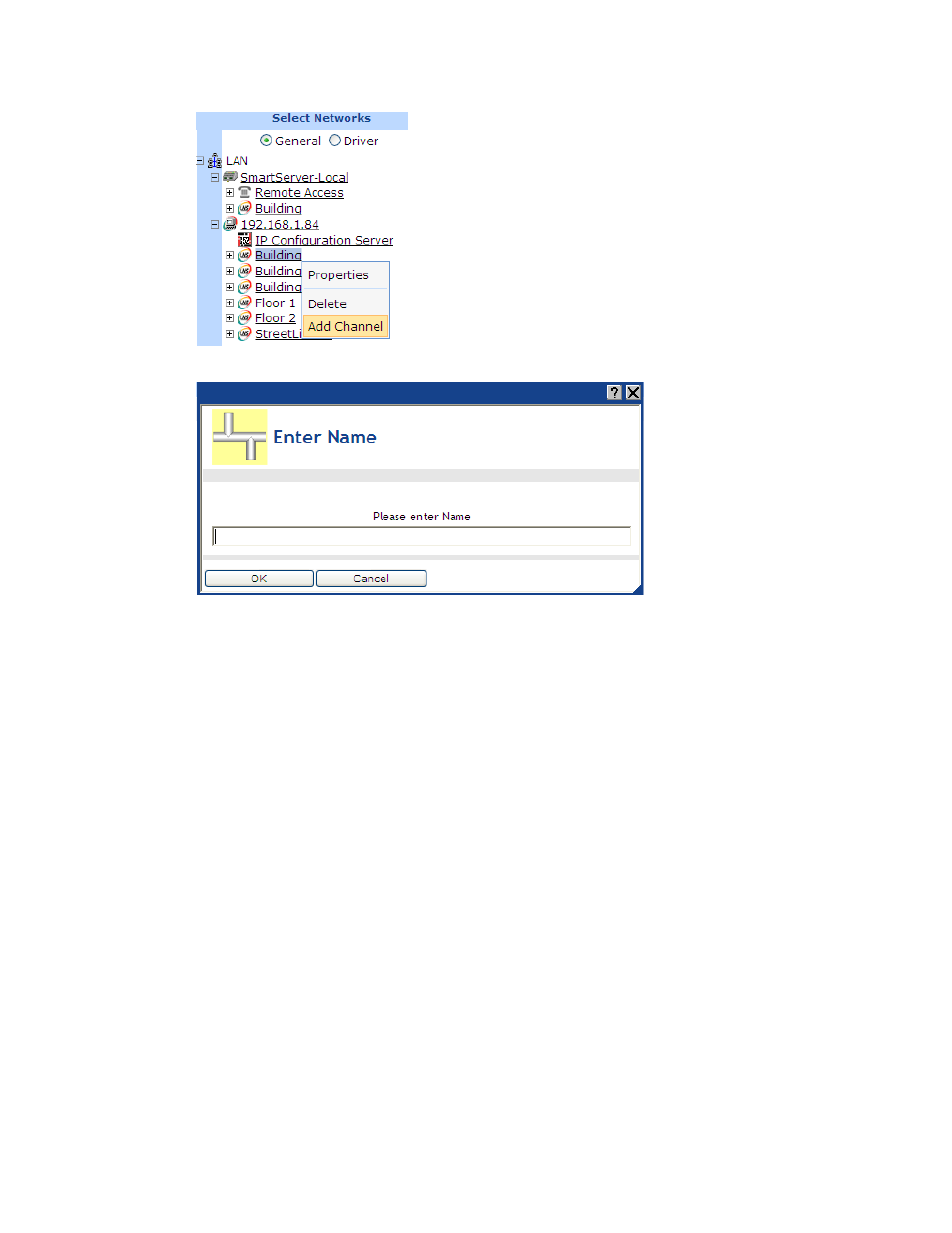

2. The Enter Name dialog opens.
3. Enter a descriptive name for the L ON W ORKS channel that is unique to the network (channel names
are case sensitive) and then click OK.
4. The channel is added to the bottom of the tree of its parent network or OpenLNS network
database.
5. Click Submit.
Configuring L
ON
W
ORKS
Channels
You can use the driver properties to change the channel type, specify behavior of network messages on
the channel, and set advanced timing properties. To configure the channel properties, follow these
steps:
1. Click Driver.
2. Select one or more channels to configure.

To configure one channel, click the channel. Alternatively, you can right-click the channel
and select Properties on the shortcut menu.

To configure two or more channels, click one channel and then either hold down CTRL and
click all other channels to be configured or hold down SHIFT and select another channel to
configure the entire range of channels. Alternatively, you can select multiple channels,
right-click one of the selected channels, and then click Properties on the shortcut menu.
3. The Setup - LON Channel Driver Web page opens.
