Echelon SmartServer 2.2 - Manual (Page 136)

SmartServer 2.2 User’s Guide 137

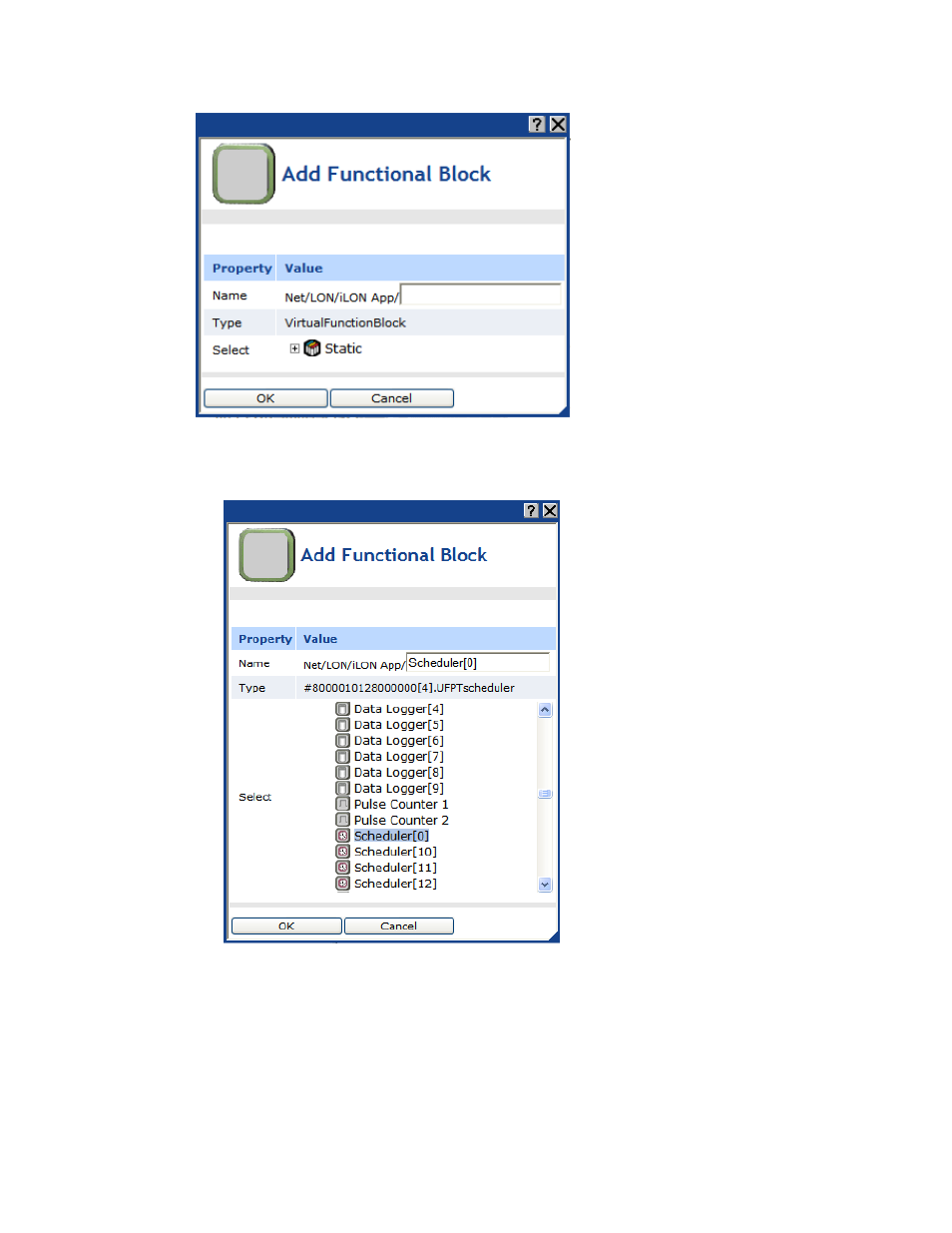

5. Select the functional block representing the application to be opened.

If the SmartServer is using the static v12 interface, expand Static, select an application, and
then click OK.

If you have activated the dynamic v40 interface on the SmartServer and you are managing the
network in Standalone mode, expand Dynamic, expand the /lonworks/types folder, expand
the bas_controller folder, select the user-defined functional profile (UFPT) of the
SmartServer application to be opened, enter a name for the functional block such as “Data
Logger”, and then click OK. See Activating the SmartServer V40 XIF in Chapter 3,
Configuring and Managing the SmartServer, for more information on loading the V40
interface on the SmartServer.
