456 Using Analog Functional Blocks

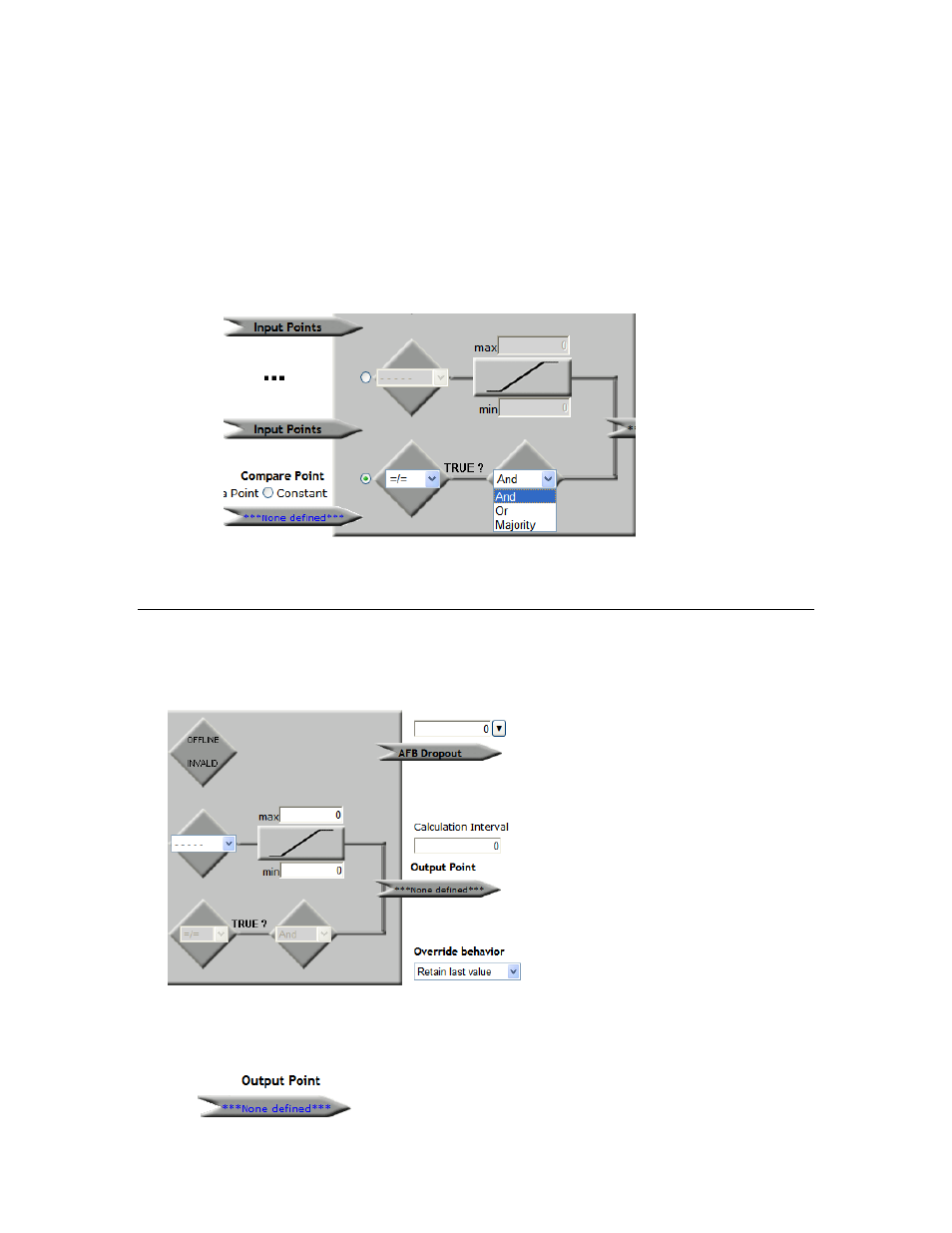

5. From the True? list, select whether one, all, or a minimum percentage of the input points need to
evaluate to TRUE in order for the logical function to send a TRUE value to the output point.

Select And to require that all the selected data points evaluate to TRUE in order for the
logical function to return a TRUE value.

Select Or to require that only one of the selected data points evaluates to TRUE in order for
the logical function to return a TRUE value

Select Majority to specify a minimum percentage of data points that must evaluate to TRUE
in order for the logical function to return a TRUE value. If you select this option, enter a
percentage in the box that appears below the output function box.
6. Click Submit. After you select an output point, the Analog Functional Block will perform the
specified logical function each time any of the input points are updated and store the result in the
specified output data point.
Selecting an Output Point
After you select and configure a mathematical or logical operation, you select an output point. The
output point may be any scalar data point or a SNVT_switch data point. You can then configure how
the output point is updated and overridden.
To select an output point, follow these steps:
1. Click the None Defined icon below the Output Point text on the right side of the application.
The text in the icon is highlighted blue.
