SmartServer 2.2 User’s Guide 425
Attaching a Log File
To attach an alarm or data log file to the Web connection, follow these steps:

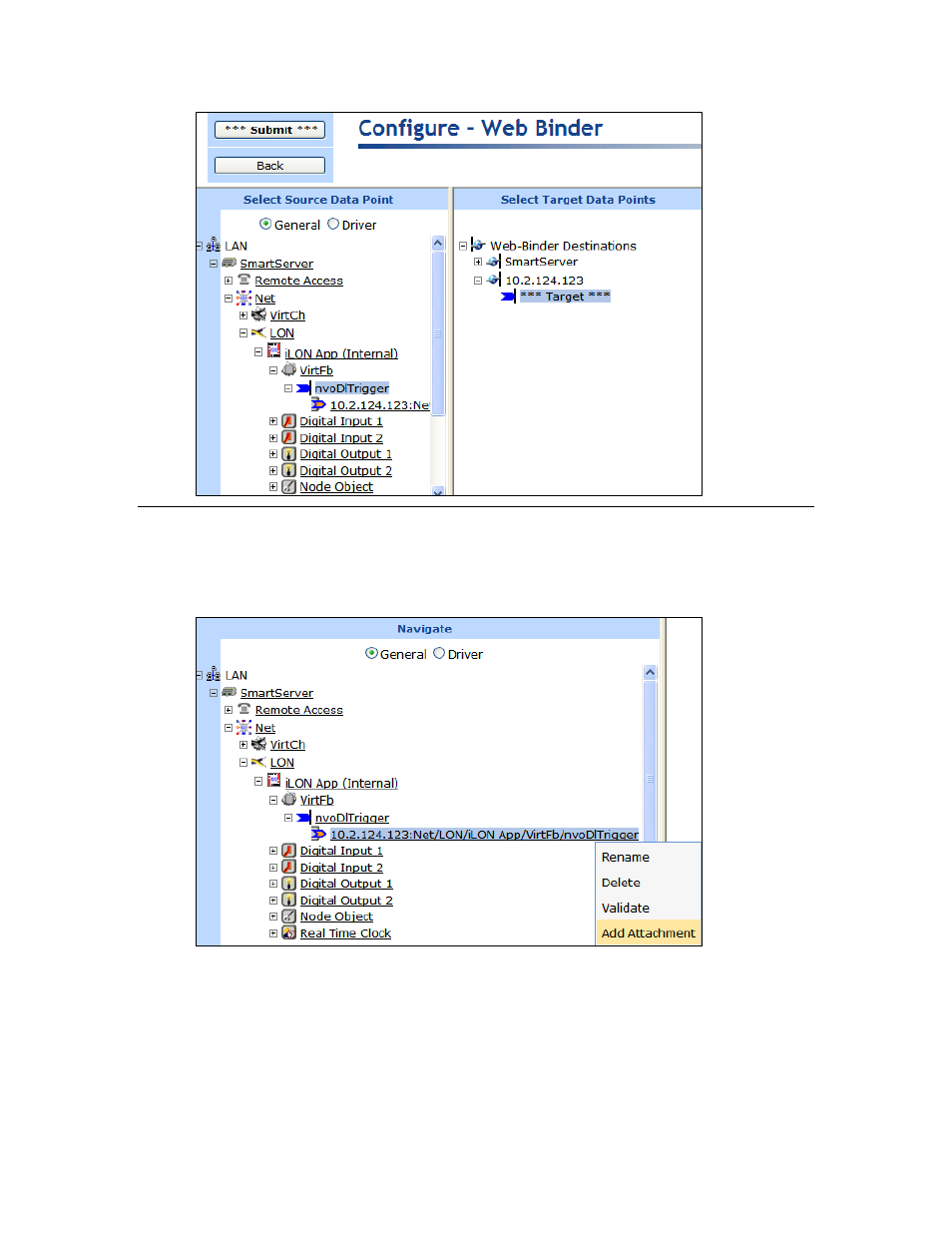

1. Under the source data point icon in the SmartServer tree, right click the reference to the target data
point in the Web connection, and then click Add Attachment on the shortcut menu.
2. The Select Attachment File dialog opens.
3. In the Type box select Alarm Log or Data Log.
4. In the Name box, select the name of the log file to be attached. The names displayed are the
locations of the logs on the SmartServer tree in the following format:
<network>/<channel>/<device>/<functional block>. The Path and File Size properties display
the location of the selected log file on the root directory of the SmartServer flash disk and its size
in bytes.
