SmartServer 2.2 User’s Guide 363

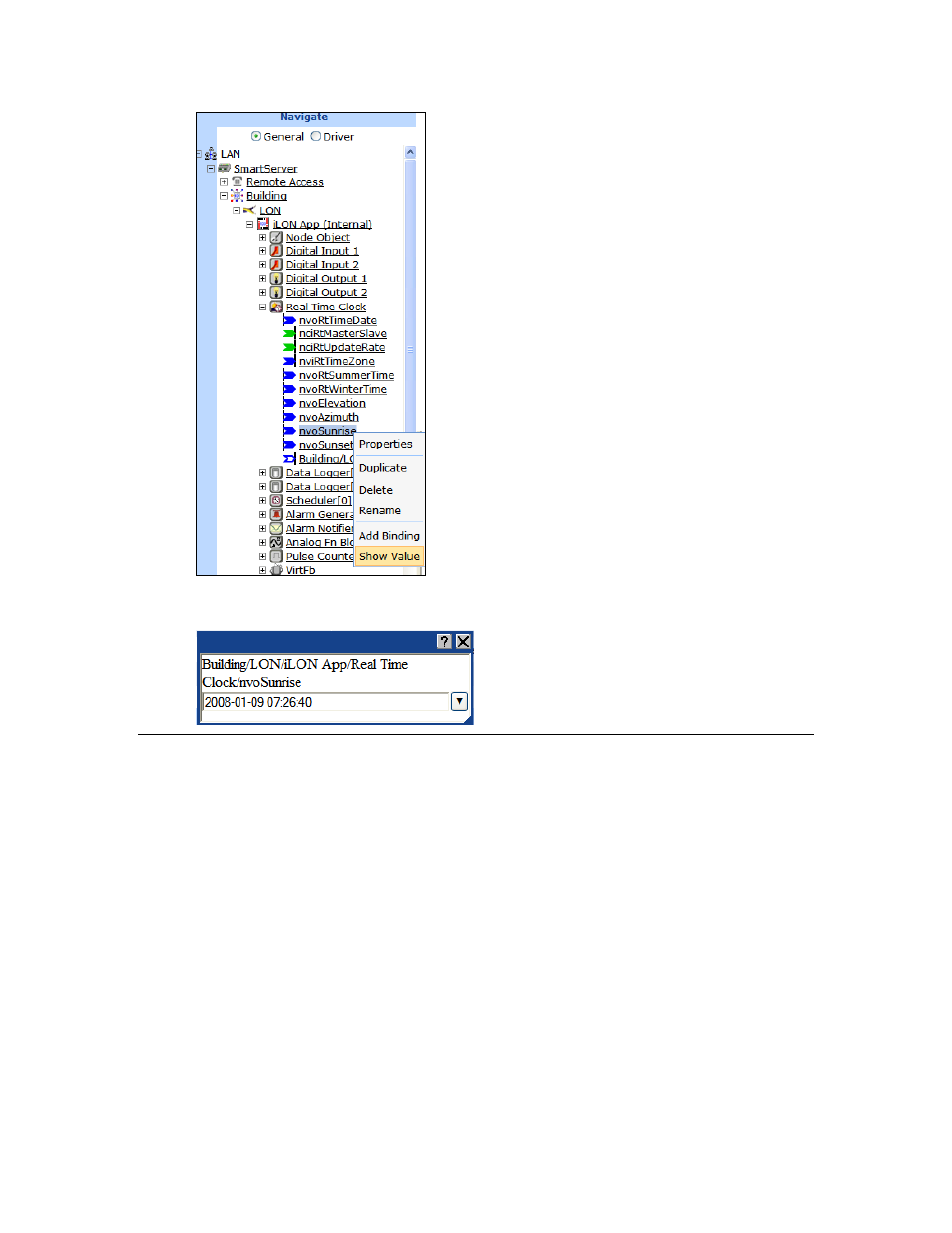

7. A dialog opens and displays the current sunrise or sundown time stored in the data point in the
following format: YYYY-MM-DD hh:mm:ss.
Opening an Event Scheduler Application
To open an Event Scheduler application, you must first create a Scheduler functional block. After you
create the Scheduler functional block, the functional block appears on the SmartServer tree below the
i.LON App (Internal) device, and you can click the functional block to open the Event Scheduler
application. To create a Scheduler functional block and open the application, follow these steps:
1. Click General above the navigation pane in the left frame of the SmartServer Web interface.
2. Expand the network icon in the SmartServer tree, and then expand the LON channel to show the
i.LON App (Internal) device.
3. Right-click the i.LON App (Internal) device and then select Add Functional Block in the
shortcut menu.
