186 Using the SmartServer Web Interface
following format: <network>/<channel>/<device>/<functional block>. The Path and File
Size properties display the location of the selected log file on the root directory of the
SmartServer flash disk and its size in KB.


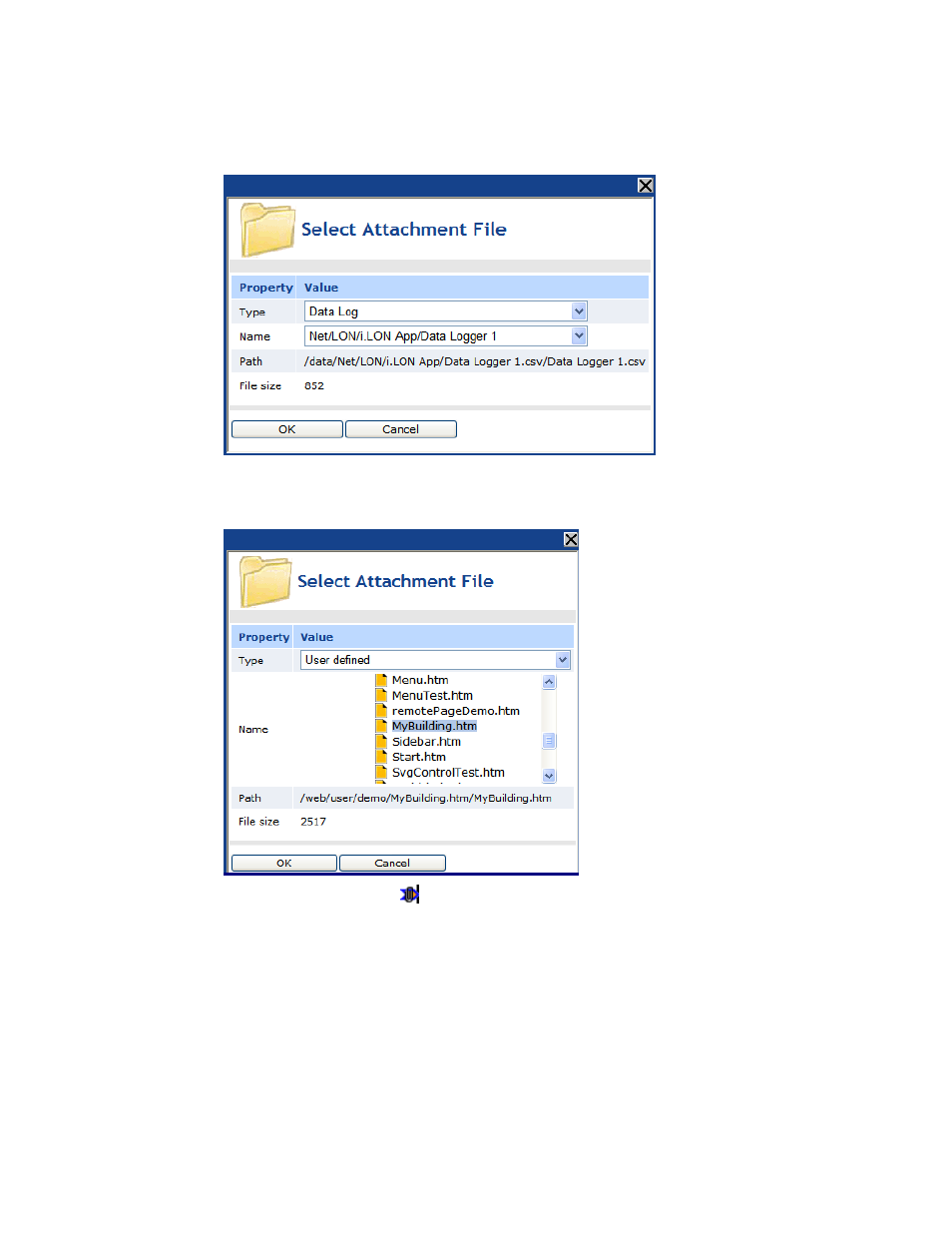

If you select User Defined, browse the root directory of the SmartServer flash disk and select
a file to be attached. The Path and File Size properties display the location of the selected
file and its size in KB.
5. Click OK. An attachment icon ( ) is added to the target data point icon.
6. Click Submit.
Deleting File Attachments
You can delete the files that you have attached to an enterprise connection. To do this, follow these
steps:
1. Right-click the target data point in the Web connection to which a file is attached, and then click
Delete Attachment on the shortcut menu. The attachment icon is removed from the target data
point.
