SmartServer 2.2 User’s Guide 141

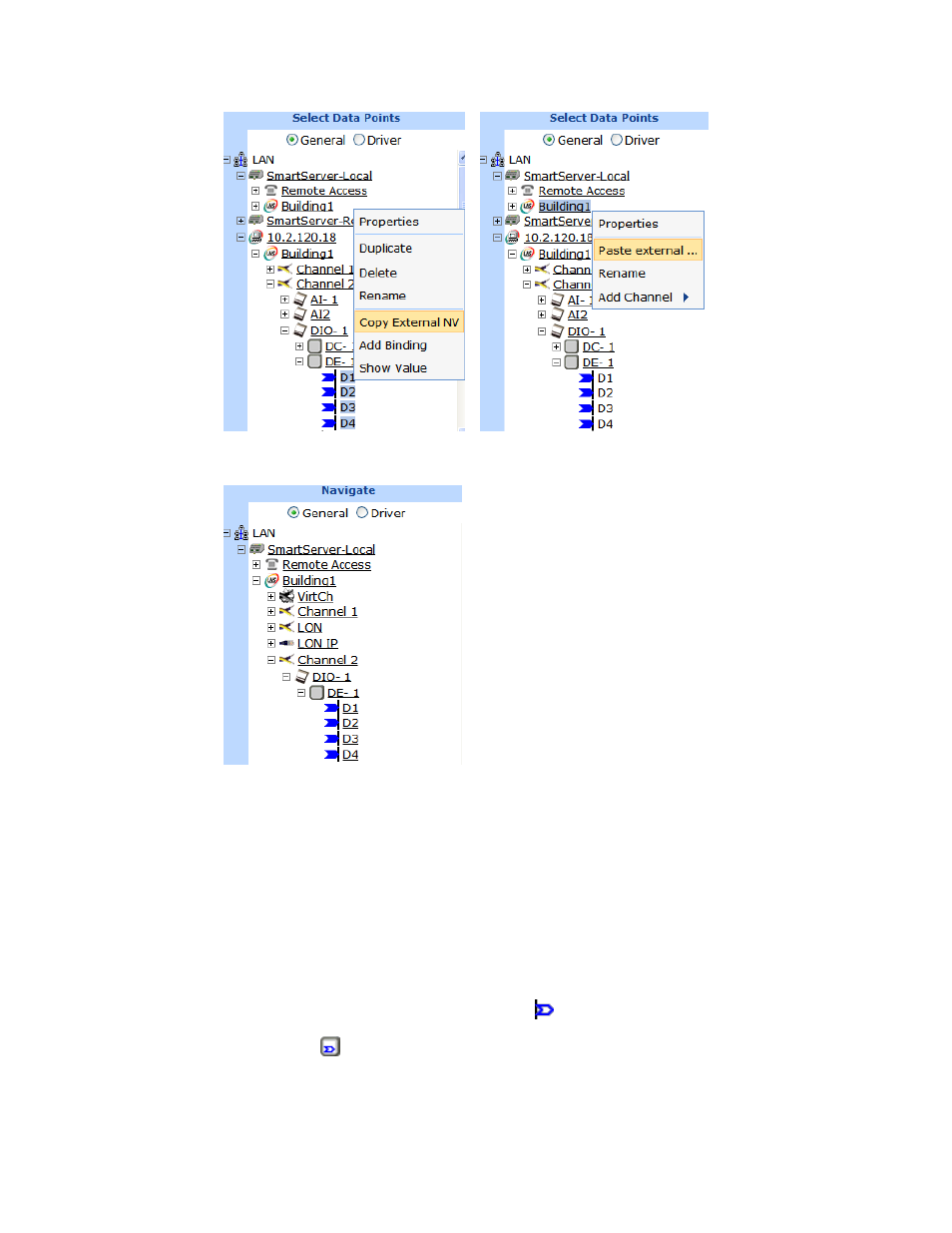

e. The data points and their parent channel, device, and functional block are added to the
network tree of the target SmartServer.
f. Click Submit.
2. Verify that you have created an instance of the functional block that represents the application to
which data points are to be added.
3. Click General at the top of the navigation pane in the left frame of the SmartServer Web interface.
4. From the navigation pane, click the functional block representing the application to which data
points are to be added. The application opens in the details pane to the right.
5. If you are adding the data point to an Alarm Notifier, Data Logger, Scheduler, Analog Functional
Block, or Type Translator, open the Data Points Web page where you add references to the
external data points.
6. From the SmartServer tree, click the data point to be added to the application. The data point is
added to the application, a reference to the data point ( ) is added to the bottom of the
application’s functional block tree, a reference to the functional block is added directly below the
selected data point (
), and you can begin monitoring and controlling the data point with the
application.
