6. In the navigation pane, expand the blue-highlighted Alarm Generator functional block to show its
data points. The data points shown correspond to the dynamic network variables in the functional
block’s LonMaker stencil.

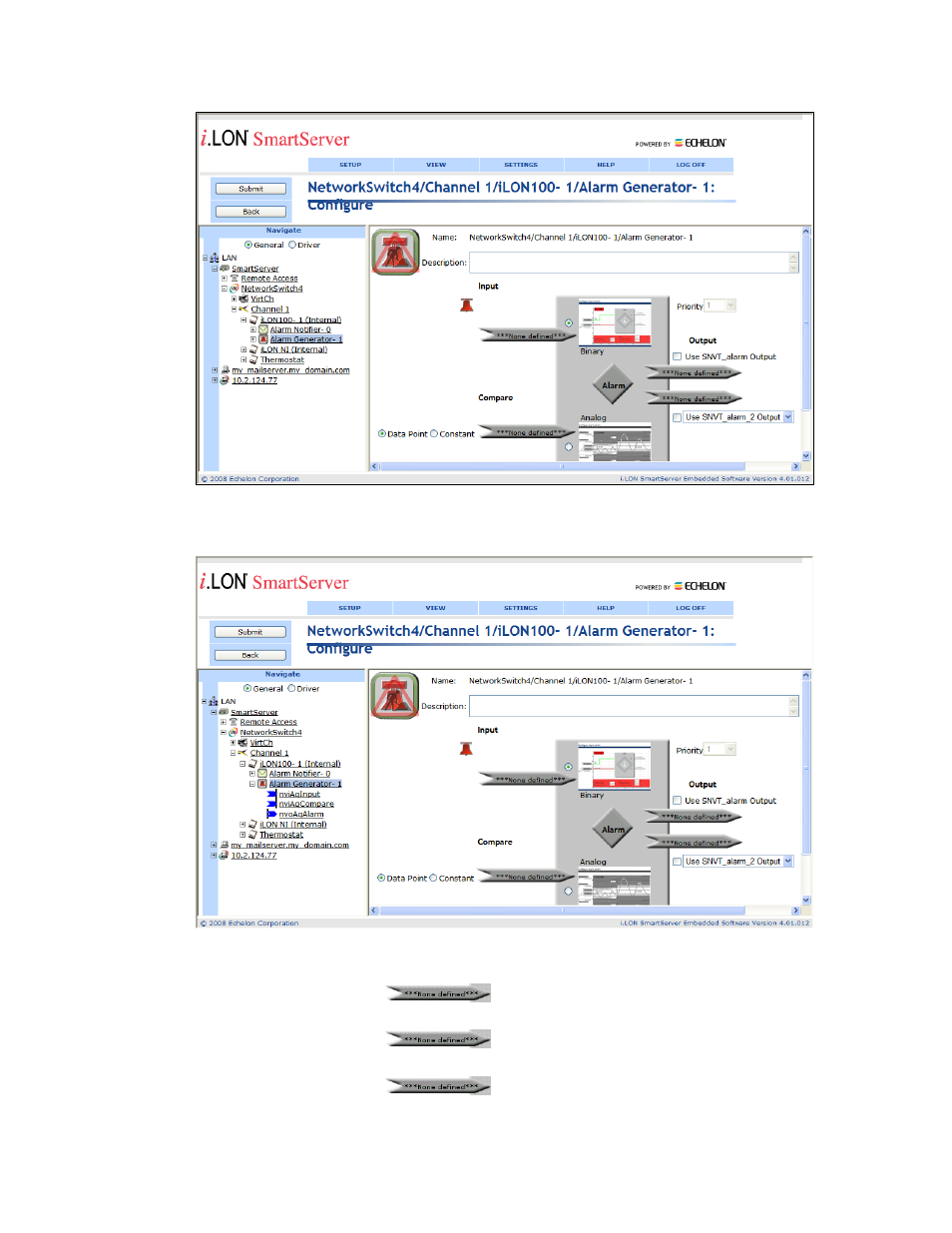

7. Select the input, compare, and output data points to be used by the Alarm Generator following
these steps:
a. Click the data point icon ( ) below Input in the application frame to the right
and then click the nviAgInput data point in the navigation pane to the left.
b. Click the data point icon ( ) below Compare in the application frame and
then click the nviCompare data point in the navigation pane.
c. Click the data point icon ( ) directly below the Use SNVT_alarm Output
check box in the application frame to select a SNVT_alarm data point, or click the data point
