default, the entire structure is evaluated. You can explicitly set the rule to evaluate the entire
structure by selecting * from the list. This is required if you first select a field and then decide
to evaluate the entire structure.
c. To scale the value of the input point, enter a multiplier (a whole or decimal number) in the
multiplier box. The default multiplier is 1. If you are copying an enumerated value to the
output point, this box is unavailable.
d. To add or subtract an offset to the value of the input point, select the desired operator and then
enter the value of the offset in the constant box. The default constant is 0. If you are copying
to an enumerated output point, select the string value (for example, HVAC_HEAT) of an
enumerated data point or field in this box. You cannot copy an index to an enumerated output
point. If you are copying to an enumerated field within a structured data point, you must first
select the enumerated field from the output point box (to the right of the TO operator) as
described in step f.
e. If you added more than one output point, you can change the default output point by clicking
it and then selecting an output point from the list.
f. If the output point is a structured data point, a list box is added to the right of the output data
point. Select whether to evaluate a field within the structure or the entire structure. By
default, the entire structure is evaluated.
8. Click Submit.

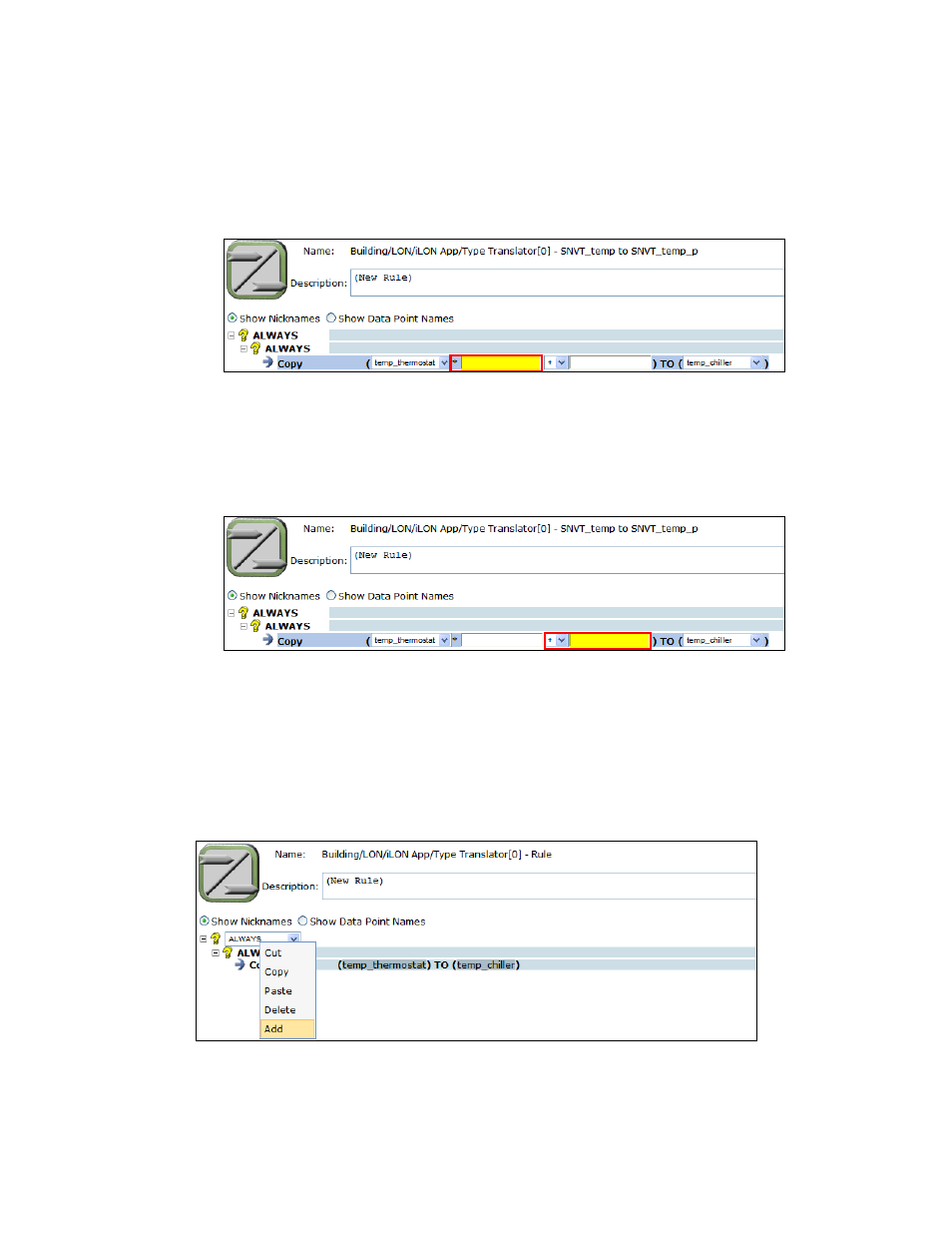

9. To add another case to the type translation, right-click either of the ALWAYS cases or the COPY
rule and then click Add on the shortcut menu.
10. A new case is added to the translation. Click Submit.
