SmartServer 2.2 User’s Guide 47
TCP/IP Property
Ethernet Media
Speed You can select the Ethernet speed (10 or 100 MB per second) and mode
(full-duplex or half-duplex) of the SmartServer. You have five choices:

Automatic. The SmartServer employs autonegotiation to determine
the Ethernet speed and mode to use based upon the device with which
it is communicating. This is the default.

100 MB Full-Duplex. Data streams in both directions
simultaneously at 100 MB/s.

100 MB Half-Duplex. Data streams in one direction at a time at 100
MB/s

10 MB Full-Duplex. Data streams in both directions simultaneously
at 10 MB/s.

10 MB Half-Duplex. Data streams in one direction at a time at 10
MB/s
6. Click Submit to save the changes. If you change the IP address and want to continue to have Web
access to your SmartServer you must change your computer’s TCP/IP settings to place it on the
same subnet as the SmartServer.
7. If you modified a property marked with an asterisk (*), you must reboot your SmartServer. See
the Rebooting the SmartServer section later in this chapter for more information on how to do this.
Configuring SOAP/HTTP Service Properties
You can configure your SmartServer’s SOAP/HTTP service properties, following these steps:

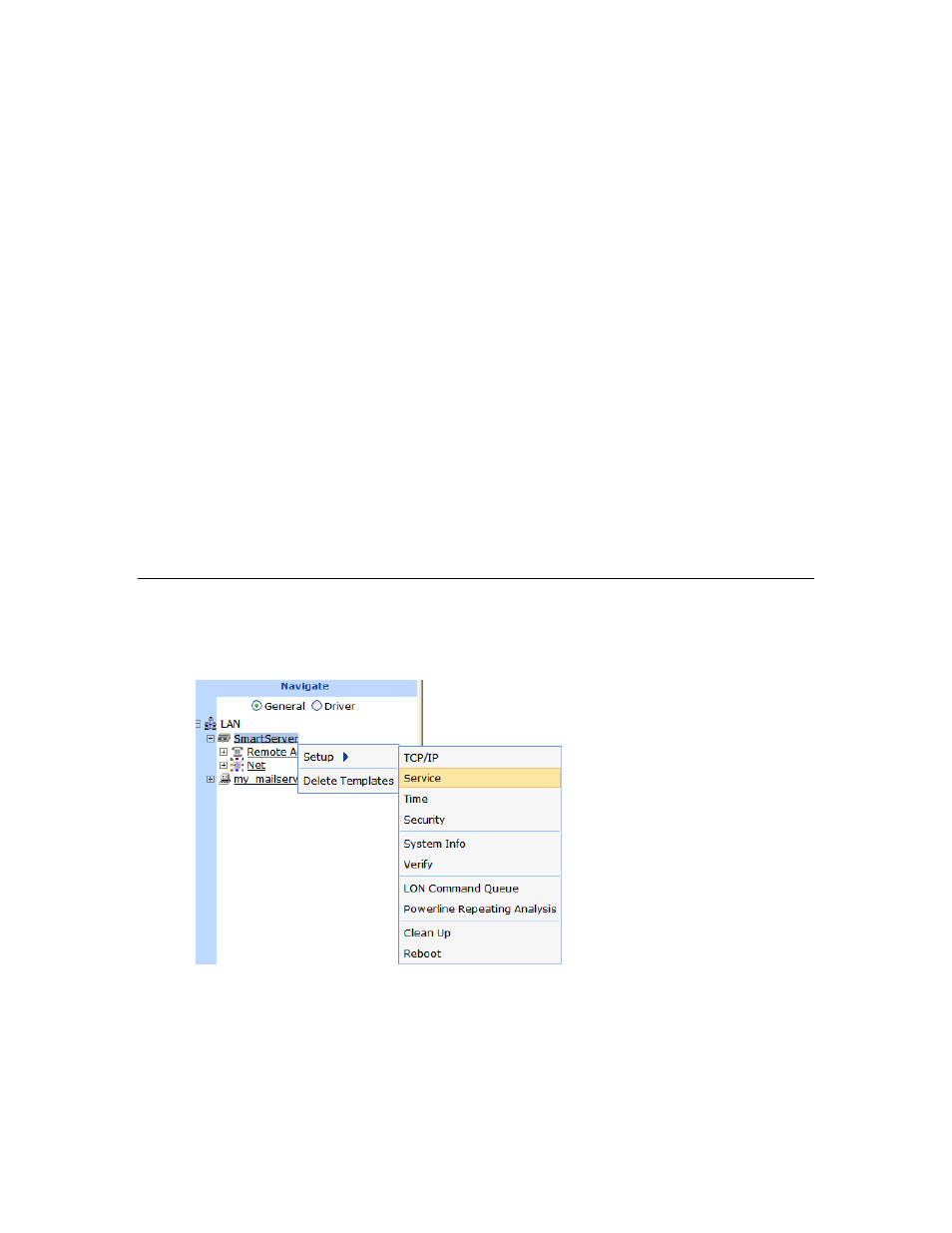

1. Right-click the SmartServer icon, point to Setup, and then click Service on the shortcut menu.
Alternatively, you can click Setup and then click Service to configure the SOAP/HTTP properties
on your local SmartServer.
2. The Setup – Local SmartServer (Service) Web page opens.
