SmartServer

2.2 User’s Guide

439

1. Click General above the navigation pane in the left frame of the SmartServer Web interface.

2. Expand the network icon in the SmartServer tree, and then expand the LON channel to show the

i.LON App (Internal) device.

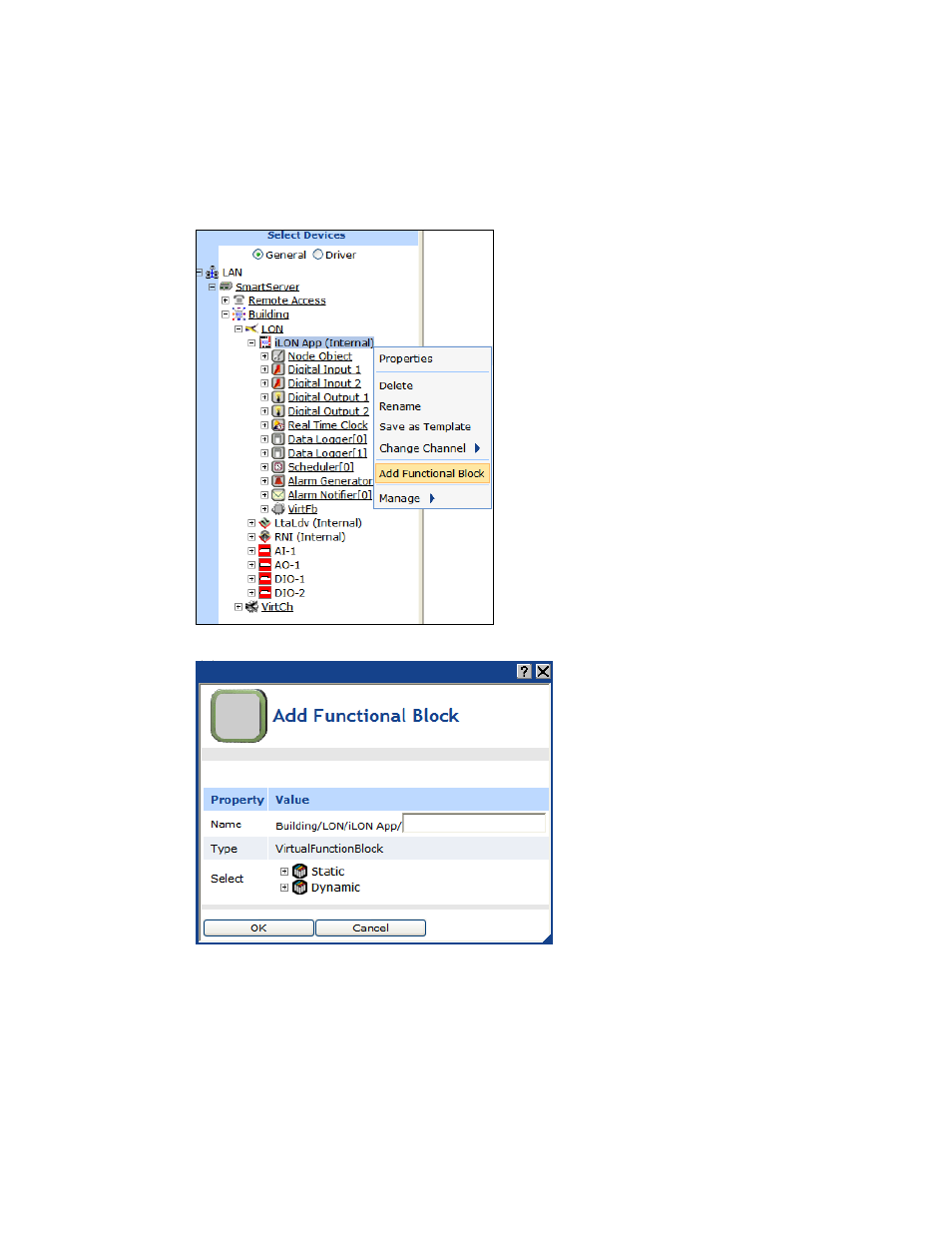

3. Right-click the i.LON App (Internal) device and then select Add Functional Block in the

shortcut menu.

4. The Add Functional Block dialog opens.

5. Select the Pulse Counter functional block from the Static or Dynamic LonMark folder. The

folder available in the dialog depends on whether the SmartServer is using the static v12 interface
or the dynamic v40 interface.



If the SmartServer is using the default static v12 interface, expand the Static icon, select the
Pulse Counter functiona1 block, optionally enter a different name than the default
programmatic functional block name, and then click OK.
