Echelon SmartServer 2.2 - Manual (Page 270)

SmartServer 2.2 User’s Guide 271

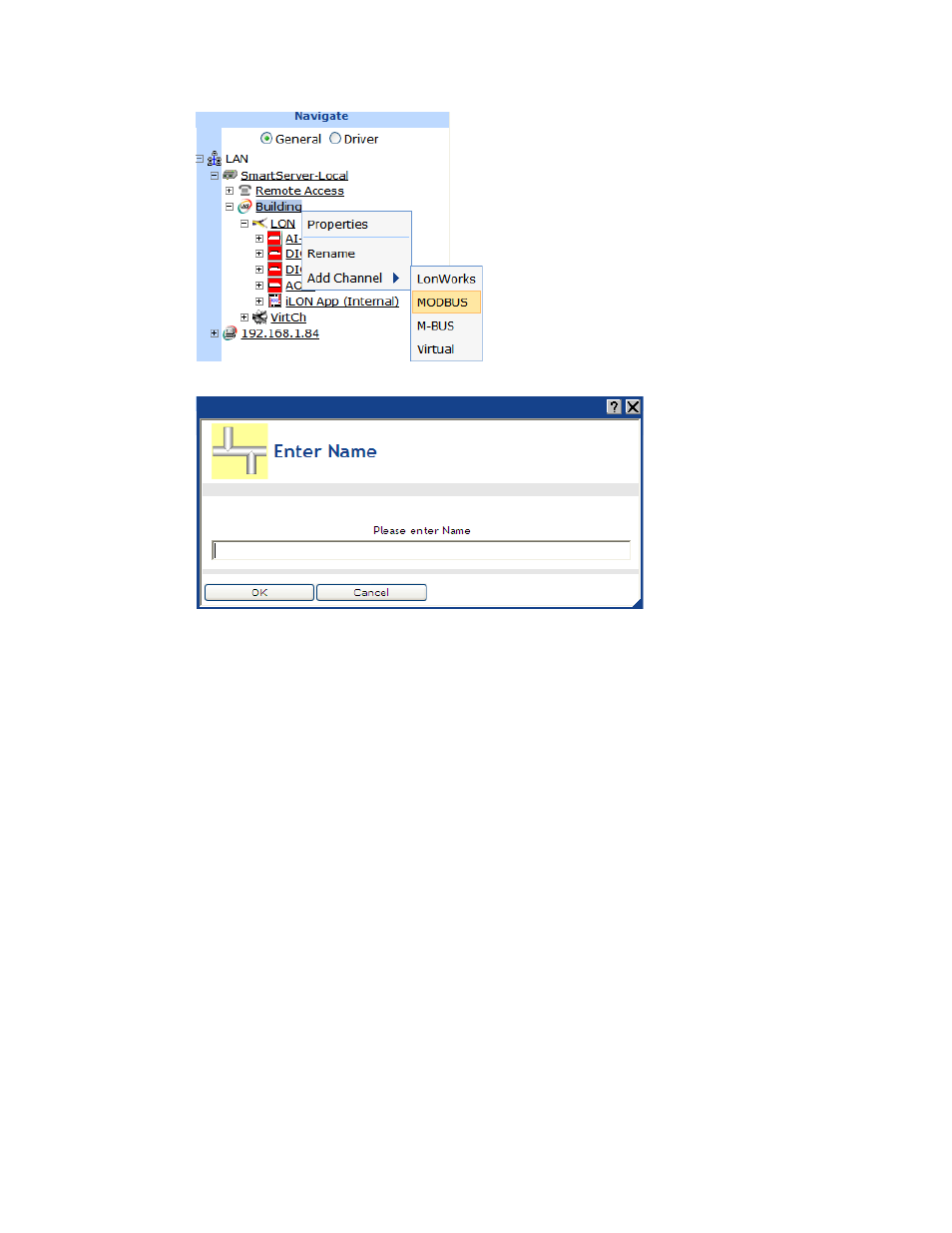

2. The Enter Name dialog opens.
3. Enter a name for the Modbus channel that is unique to the network and then click OK.
4. The Modbus channel is added to the bottom of the SmartServer tree.
5. Click Submit.
Configuring Modbus Channels
You can use the Modbus driver properties to change the transmission mode and properties. To
configure the Modbus channel properties, follow these steps:
1. Click Driver.
2. Select one or more Modbus channels to be configured. The Setup - Modbus Channel Driver
Web page opens.
