316 Using the SmartServer as Network Management Tool

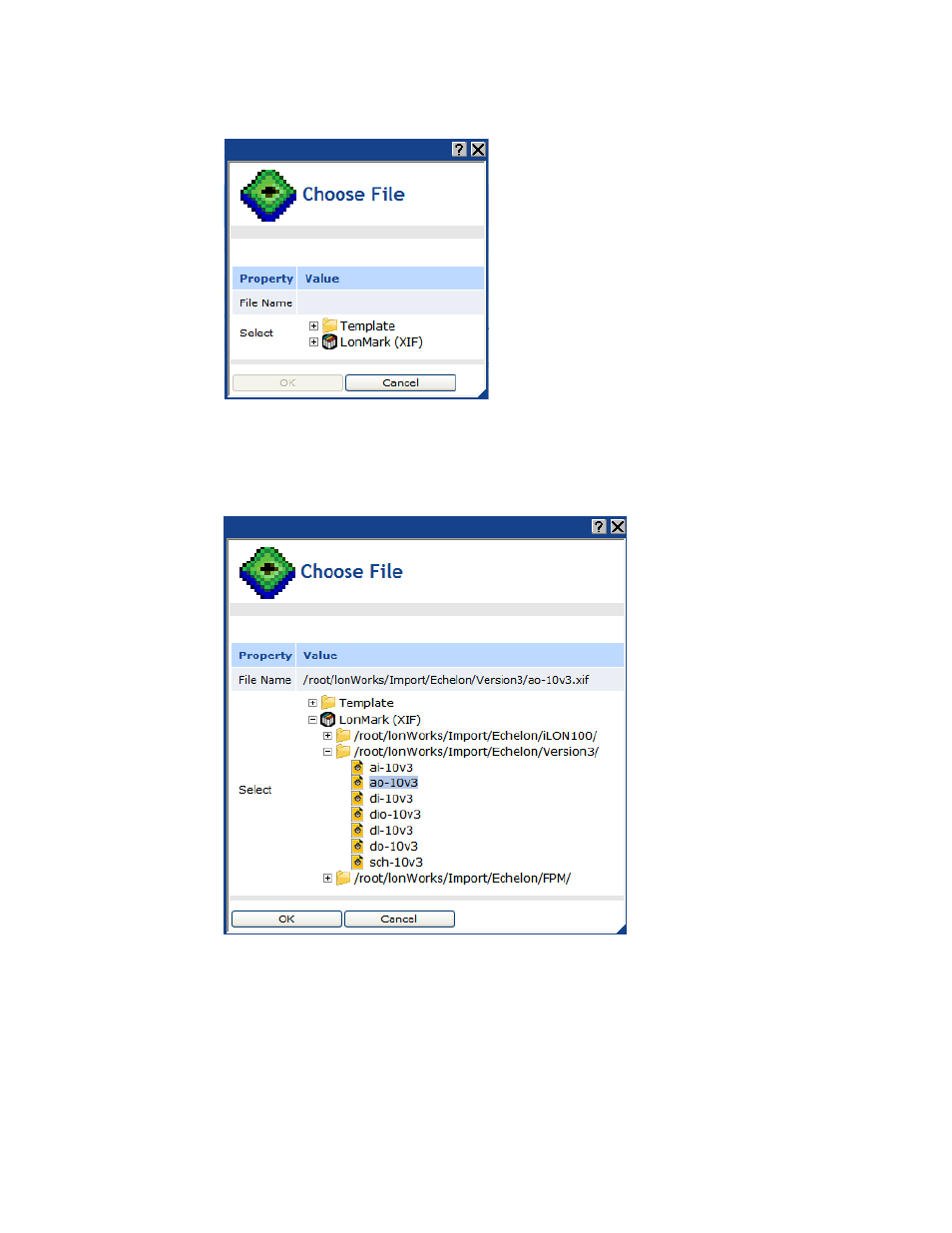

b. The Choose File dialog opens.
c. Expand either the LonMark (XIF) or Template folder depending on whether you are using a
XIF or XML file for the device interface. If the device being loaded is located in the
OpenLNS tree, the Template folder is not available.
d. Expand the subfolders containing the XIF file to be loaded onto the SmartServer and then
click the XIF file.
e. Click OK to return to the Setup - LON Device Driver Web page.
6. Click Submit.
7. Download the application image to the selected devices. To do this, right-click one of the selected
devices in the SmartServer tree or OpenLNS tree, point to Manage, and then click Download
Image in the shortcut menu. Alternatively, you can clear and then select the Smart Network
Management check box to the left of the Application Image property in the Setup -LON Device
Driver Web page and then click Submit.
