SmartServer 2.2 User’s Guide 165

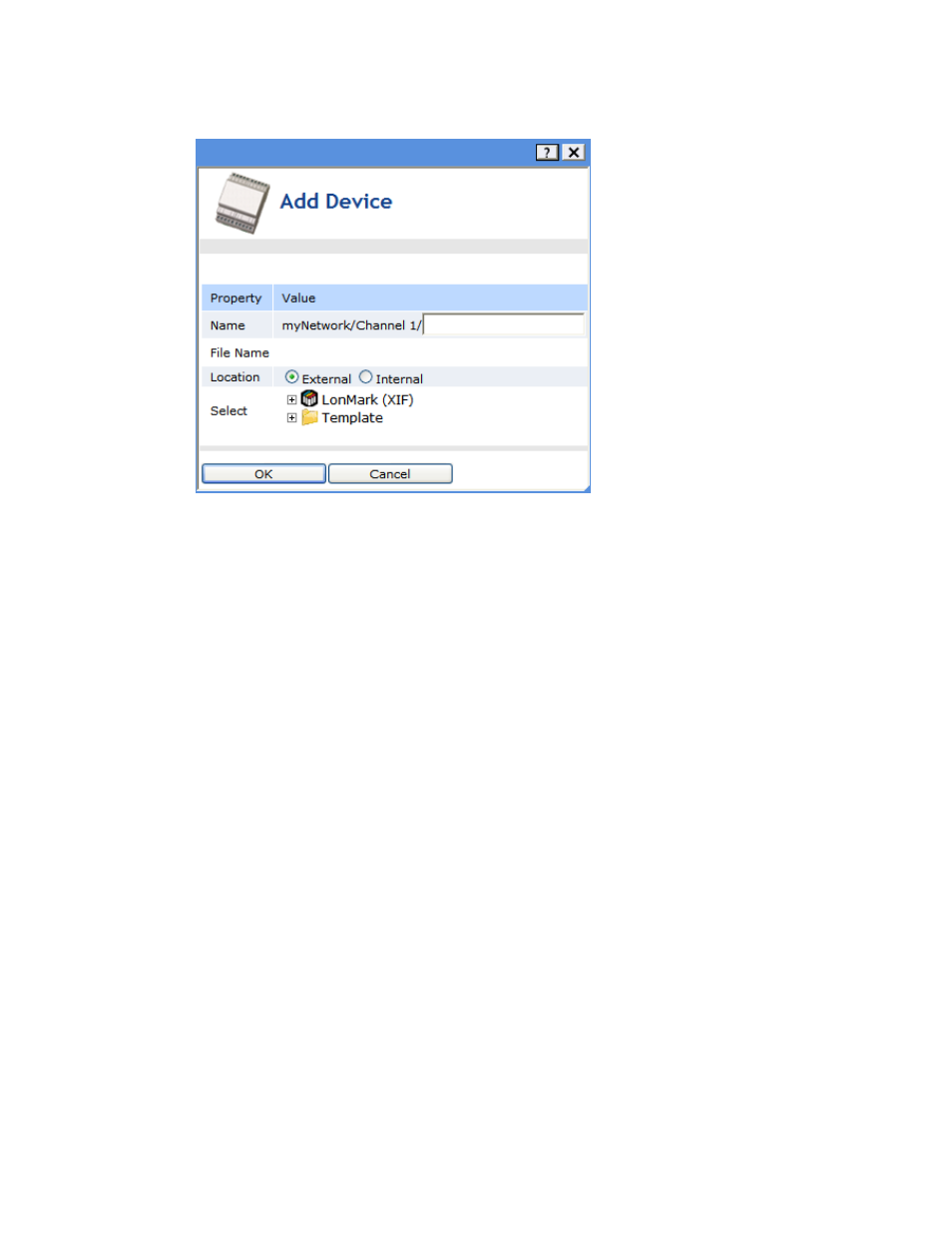

3. The Add Device dialog opens
4. In the Name property, enter a descriptive name for the device.
5. In the Location property, select whether you are creating an external device or an internal device
(custom app device or SmartServer) from a template.
6. Expand the Template folder to show all the folders in the /config/template directory on the
SmartServer flash disk. Expand the folder containing the template to be used to create the device
and then click that template.
Note: The SmartServer includes the two pre-defined L ON W ORKS device templates that are stored
in the /config/template/lonworks folder: a digital input (DI10) device and a SmartServer (i.LON
App). In addition, it includes six pre-defined Modbus device templates that are stored in the
/config/template/modbus folder: ABB_ACH550, BERG_UBN3060, LAE_LCD15, Schneider
PM500, Socomec Diris40, and Wago_8DI_8DO_4AI_4AO_8DI_8DO.
