492 Using the SmartServer with OpenLNS CT

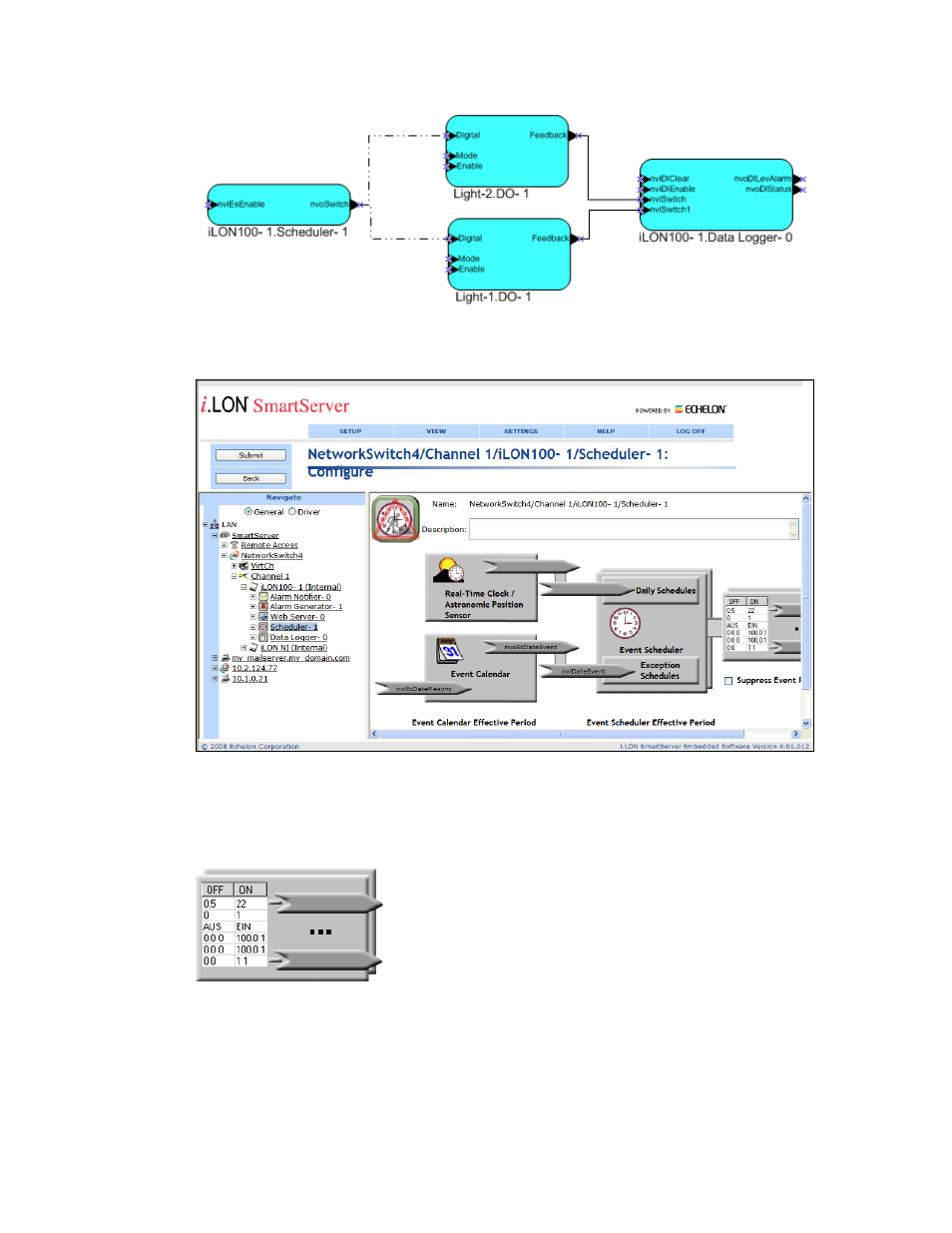

7. Open the Scheduler Configuration Web page on the SmartServer following the steps described in
the previous section, Opening SmartServer Applications with OpenLNS CT. The Scheduler:
Configure Web page opens.
8. In the navigation pane, expand the blue-highlighted Scheduler functional block to show the
dynamic network variable (nvoSwitch) you added to the Scheduler functional block with
OpenLNS CT in step 2.
9. Click the data point box on the right side of the Scheduler: Configure Web page to open the
Scheduler: Data Points Web page.
10. Add the nvoSwitch data point to the Scheduler application. To do this, click the nvoSwitch data
point in the navigation pane to the left. Optionally, you can add or modify the data point’s presets
(see Chapter 7 of the SmartServer User’s Guide for more information for how to do this).
