Echelon SmartServer 2.2 - Manual (Page 413)

414 Scheduling

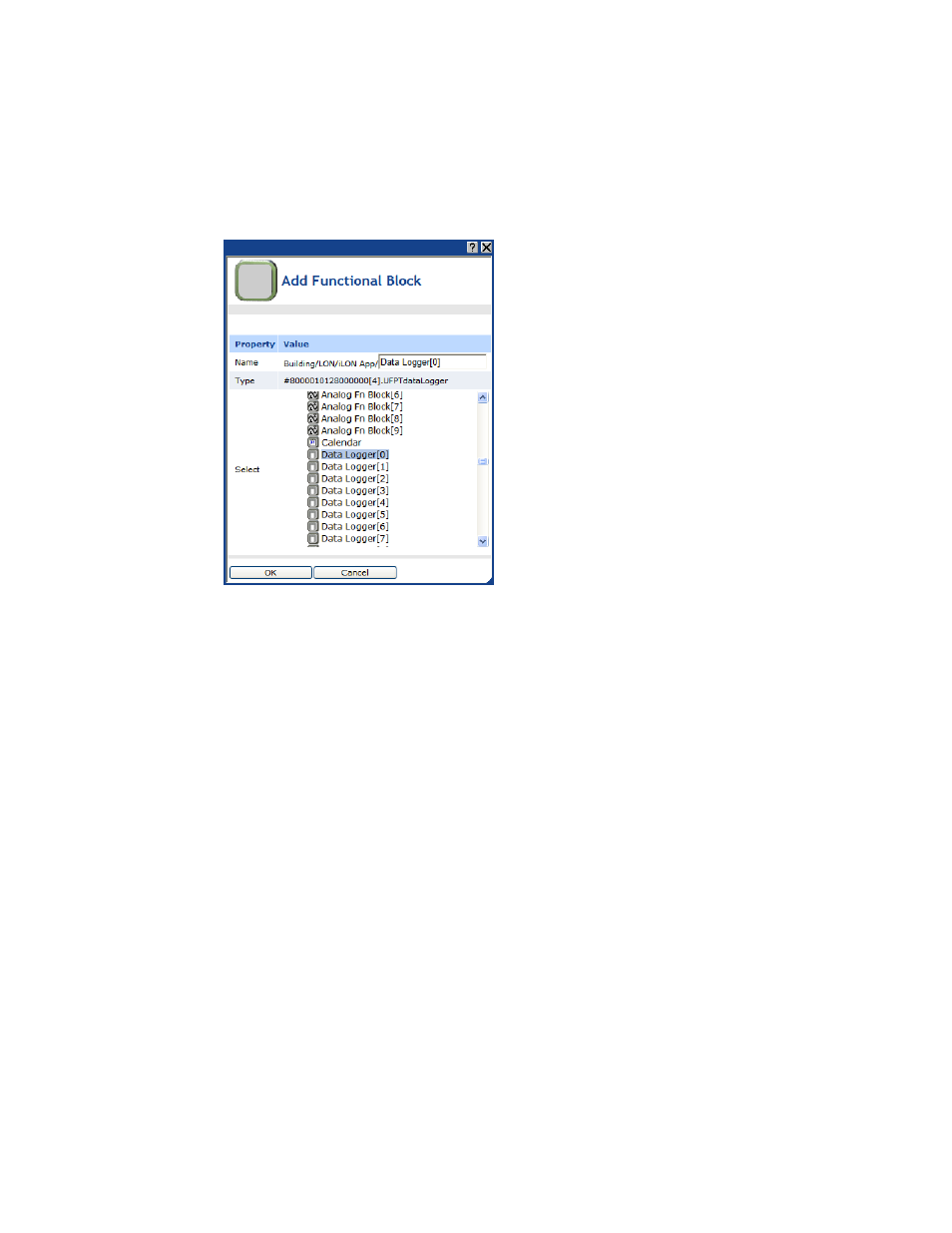

5. Select the Data Logger functional block from the Static or Dynamic LonMark folder. The folder
available in the dialog depends on whether the SmartServer is using the static v12 interface or the
dynamic v40 interface.

If the SmartServer is using the static v12 interface (the default), expand the Static icon, select
the Data Logger functiona1 block, optionally enter a different name than the default
programmatic functional block name, and then click OK.

If you have activated the dynamic v40 interface on the SmartServer and you are managing the
network in Standalone mode, you can select the Data Logger functional block from either the
Static or the Dynamic folder. To select the Data Logger functional block from the Dynamic
folder, expand the Dynamic icon, expand the /lonworks/types folder, expand the
bas_controller folder, select the user-defined functional profile for the Data Logger, enter a
name for the functional block such as “Data Logger 1”, and then click OK.
