SmartServer 2.2 User’s Guide 311
other commands to cancel. You can also use this option to delete inactive
commands from the table.
Installing Routers
To commission a router in a L ON W ORKS network, follow these steps:
1. Click Driver.
2. Click the router shape in the SmartServer tree or OpenLNS tree representing the near side of the
router (the side closest to the OpenLNS network interface)

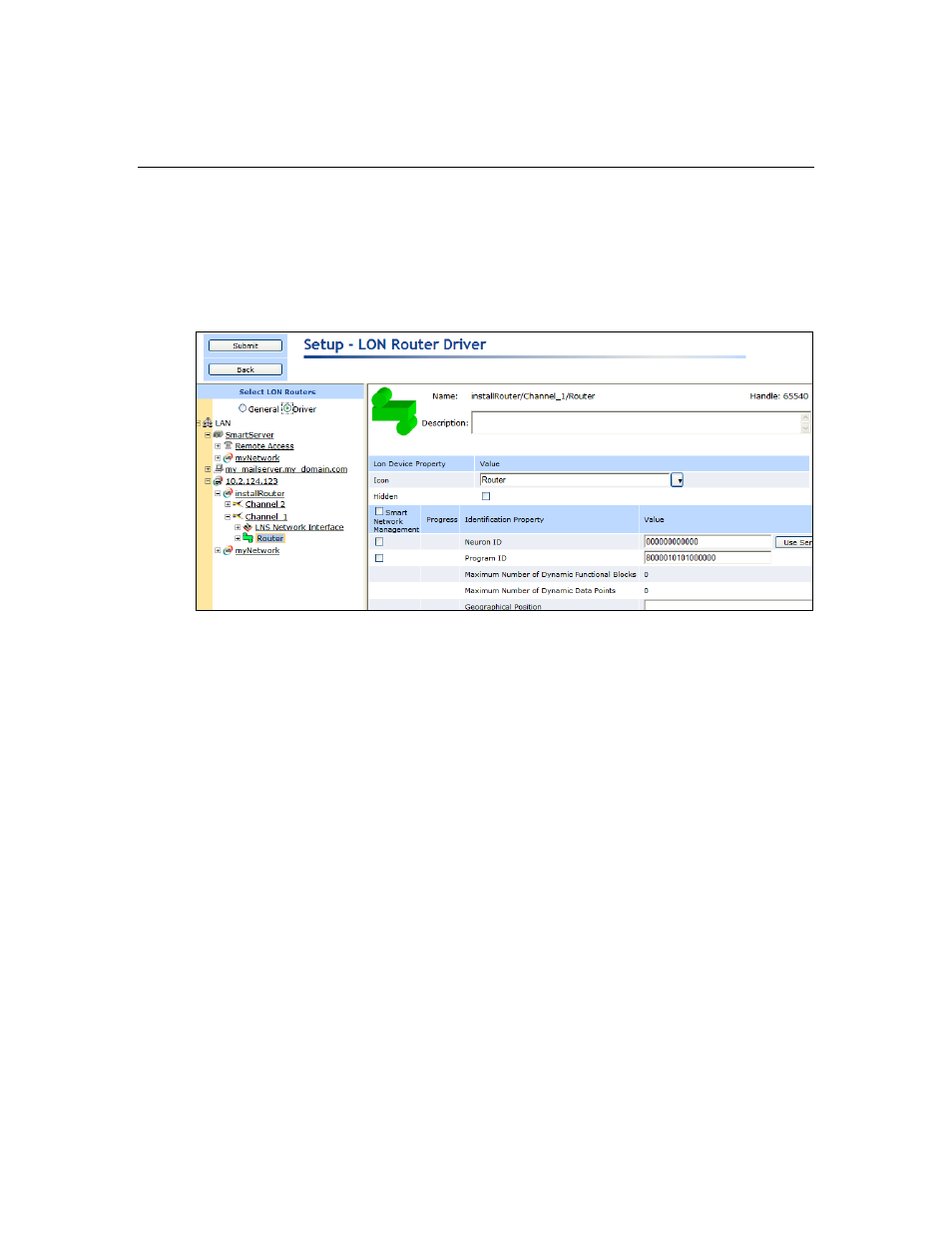

3. The Setup – LON Router Driver Web page opens.
4. Acquire the Neuron ID of the near side of the router, or manually enter the Neuron ID in the
Neuron ID box. You can acquire the Neuron ID automatically using device discovery or
manually by pressing the service pin on the router.

To automatically acquire the Neuron ID of the near side of the router, verify that the router is
uncommissioned, select the Neuron ID check box, and then click Submit. The SmartServer
automatically acquires the Neuron ID using device discovery, and the Neuron ID appears in
the Neuron ID box.

To manually acquire the Neuron ID of the near side of the router, follow these steps:
a. In the Neuron ID property on the Setup – LON Router Driver Web page, select Use
Service Pin.
b. The LON Device Identification dialog opens.
