MCT for VPLS
18
IFL-ID: n/a
VC-Mode: Raw
Total VPLS peers: 2 (2 Operational)
Cluster-Peer address: 12.12.12.12, State: Operational, Uptime: 2 hr 55 min
Tnnl in use: tnl2(3)[RSVP] Peer Index:0
Local VC lbl: 983040, Remote VC lbl: 983040
Local VC MTU: 1500, Remote VC MTU: 1500
Local VC-Type: Ethernet(0x05), Remote VC-Type: Ethernet(0x05)
Peer address: 15.15.15.15, State: Operational, Uptime: 2 hr 55 min
Tnnl in use: tnl1(1024)[RSVP] Peer Index:1
Local VC lbl: 983041, Remote VC lbl: 983043
Local VC MTU: 1500, Remote VC MTU: 1500
Local PW preferential Status:Active, Remote PW preferential Status:Active
Local VC-Type: Ethernet(0x05), Remote VC-Type: Ethernet(0x05)
CPU-Protection: ON, MVID: 0x001, VPLS FIDs: 0x0000a004, 0x0000ffff
Local Switching: Enabled
Extended Counter: ON
Multicast Snooping: Disabled
Cluster-peer: enabled, Role:Active State: VPLS_MCT_STATE_OPER
Syntax: show mpls vpls detail
Use the show mpls vpls brief redundancy command to display PW redundancy.
Syntax: show mpls vpls brief redundancy
Sample MCT configuration with VPLS endpoints
Below is the sample configuration on the two MCT cluster nodes for the topology shown in
Figure 183 .

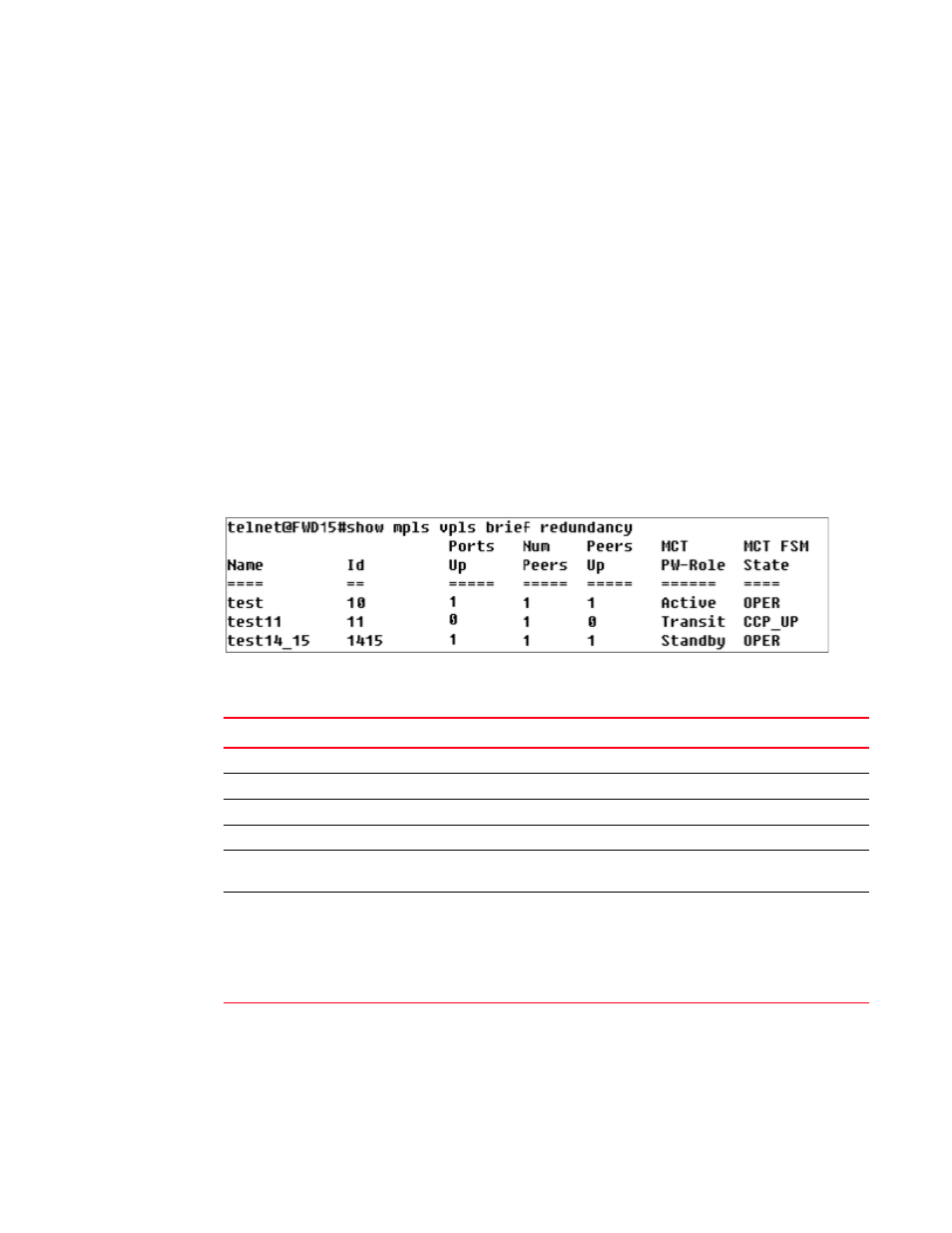

TABLE 84 Output from the show mpls vpls brief redundancy command
Field Description
Name The configured name of the VPLS instance.
Id The ID of this VPLS instance.
Ports Up The number of ports in this VPLS instance that are up.
Num Peers The number of VPLS peers this device has for this VPLS instance.
Peers Up The number of VPLS peers with which a VC connection is completely
operational.
MCT PW- Role Active: Node will start peering with remote peers, signaling Status TLV as
Active.
Standby: Node will start peering with remote peers , signaling Status TLV
as Standby
Transit: MCT VPLS FSM is not in Operation state. Remote Peering is not
yet enabled.
