Multi-Service IronWare Switching Configuration Guide
517
53-1003036-02
Initializing a new ERN
15
•
ERN 4 stays in the Pending state, transmits R-APS (NR) messages, and continues to block the
left interface.

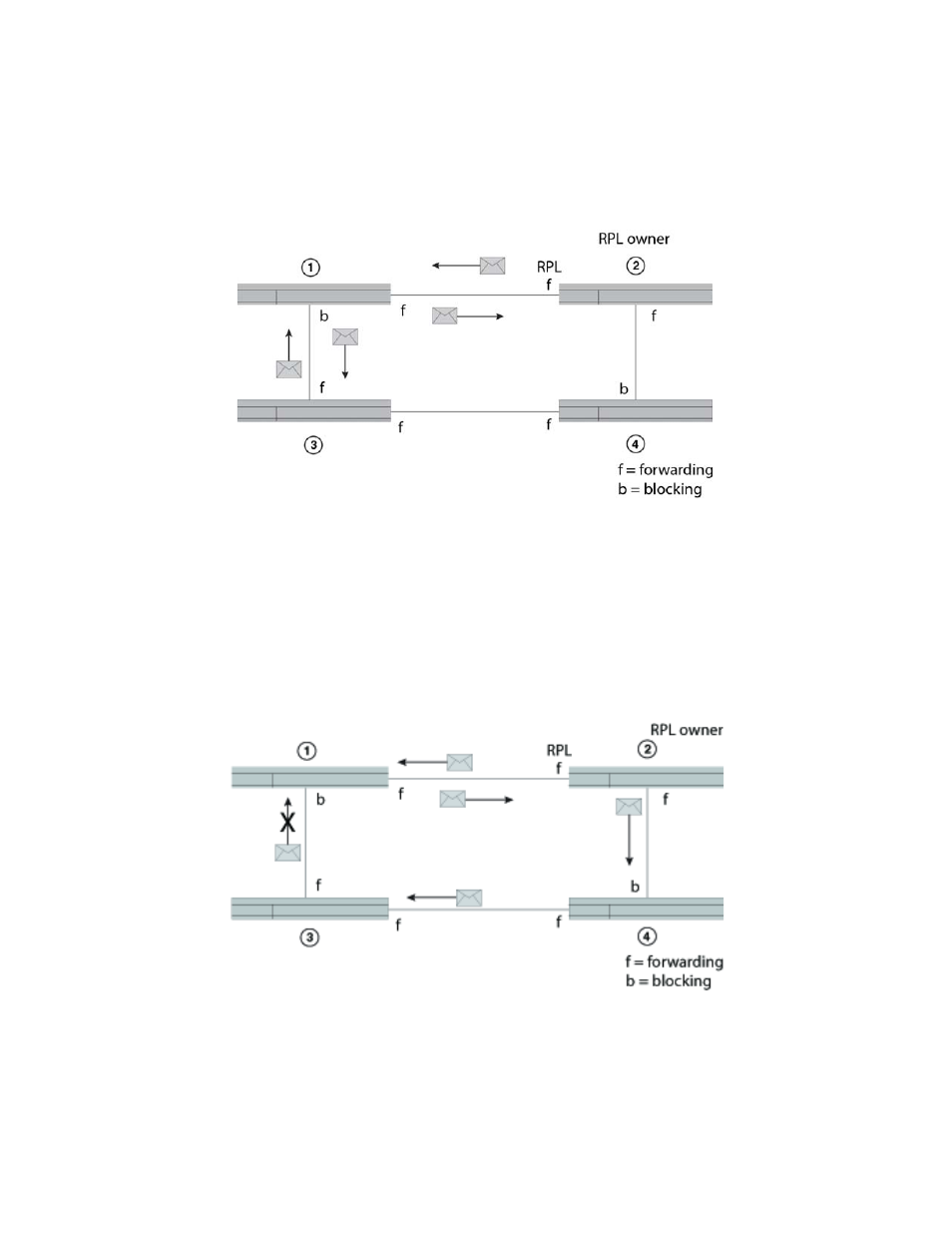

FIGURE 129
Initializing an ERP topology - II
shows the next sequence of events. The actions of each ERN are:
•
ERN 1 terminates R-APS received on the blocked port, unblocks the non-failed port, stops
transmitting R-APS (NR) messages, and enters the Pending state.
•
ERN 2 takes no action.
•
ERN 3 takes no action.
•
ERN 4 stays in the Pending state and transmits R-APS (NR) messages.
FIGURE 130
Initializing an ERP topology - III
