Convergence in a simple topology
13
Convergence after a link failure
What happens if a link in the RSTP topology fails?
For example, Port2/Switch, which is the port that connects Switch 2 to the root bridge (Switch 1),
fails. Both Switch 2 and Switch 1 notice the topology change (
Figure 88 ).

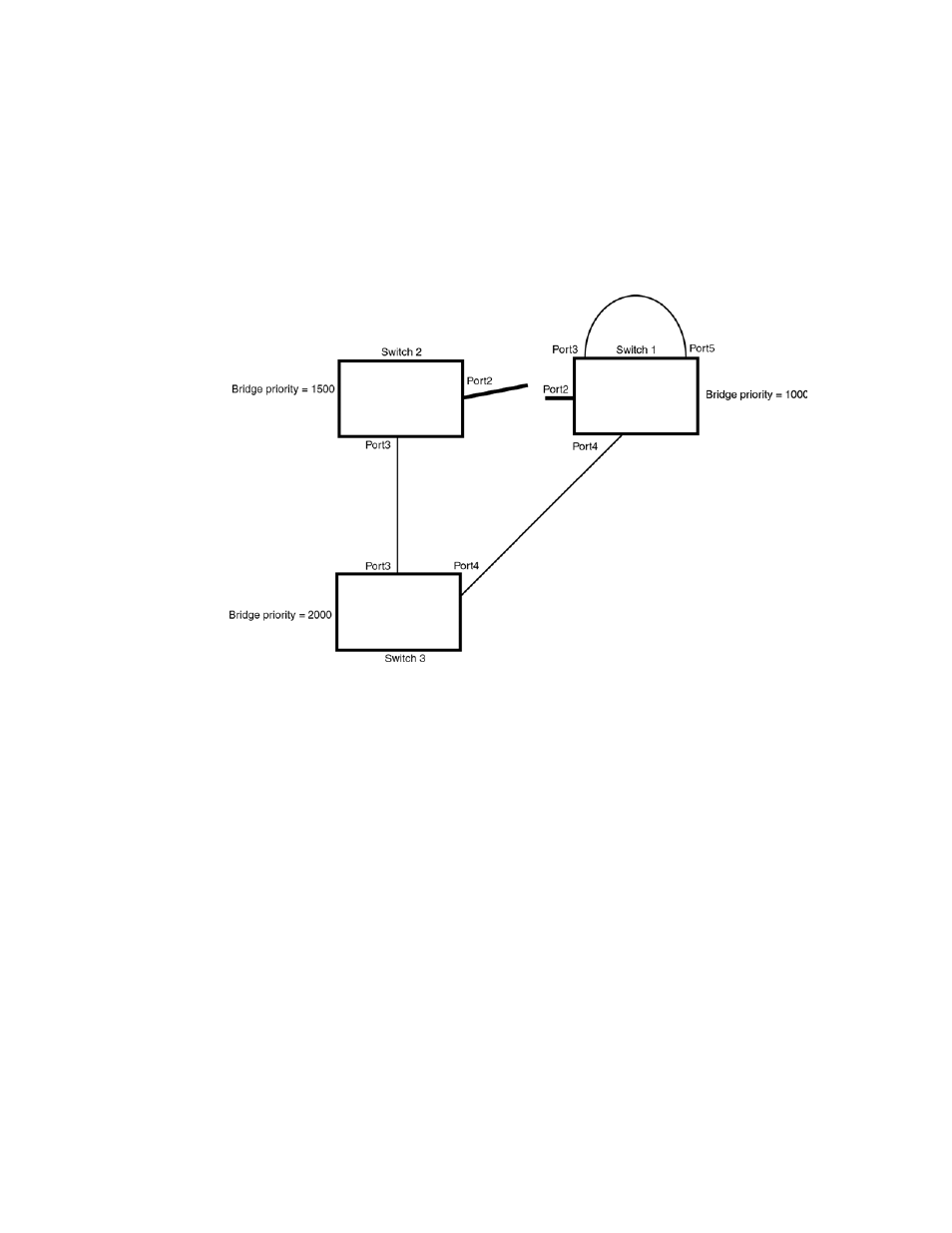

FIGURE 88 Link failure in the topology
Switch 1 sets its Port2 into a discarding state.
At the same time, Switch 2 assumes the role of a root bridge since its root port failed and it has no
operational Alternate port. Port3/Switch 2, which currently has a Designated port role, sends an
RST BPDU to Switch 3. The RST BPDU contains a proposal flag and a bridge ID of Switch 2 as its
root bridge ID.
When Port3/Switch 3 receives the RST BPDUs, RSTP algorithm determines that they are inferior to
those that the port can transmit. Therefore, Port3/Switch 3 is given a new role, that of a
Designated port. Port3/Switch 3 then sends an RST BPDU with a proposal flag to Switch 2, along
with the new role information. However, the root bridge ID transmitted in the RST BPDU is still
Switch 1.
When Port3/Switch 2 receives the RST BPDU, RSTP algorithm determines that it is superior to the
RST BPDU that it can transmit; therefore, Port3/Switch 2 receives a new role; that of a Root port.
Port3/Switch 2 then sends an RST BPDU with an agreed flag to Port3/Switch 3. Port3/Switch 2
goes into a forwarding state.
When Port3/Switch 3 receives the RST BPDU that Port3/Switch 2 sent, Port3/Switch 3 changes
into a forwarding state, which then completes the full convergence of the topology.
