EDIUS NEO — User Reference Guide 93
Hardware Settings
Preview Device
If you have a preview device that is not the same device as a device used
for capturing, it may be separately configured with the Preview Device set-
tings. The input and output (preview) settings are configured in the Device
Preset settings for those devices capable of both source capture (input) and
preview/tape out (output). See Device Presets
on page 83 for more informa-
tion.
To configure a preview device, follow these steps after attaching the device
to the EDIUS NEO computer and making sure it is powered on:
1. Select Settings>System Settings>Hardware>Preview Device from the
Preview window menu bar (click the ”+” to expand the Hardware
section if it is collapsed).
The Preview Device dialog depicted in Figure 88 appears.

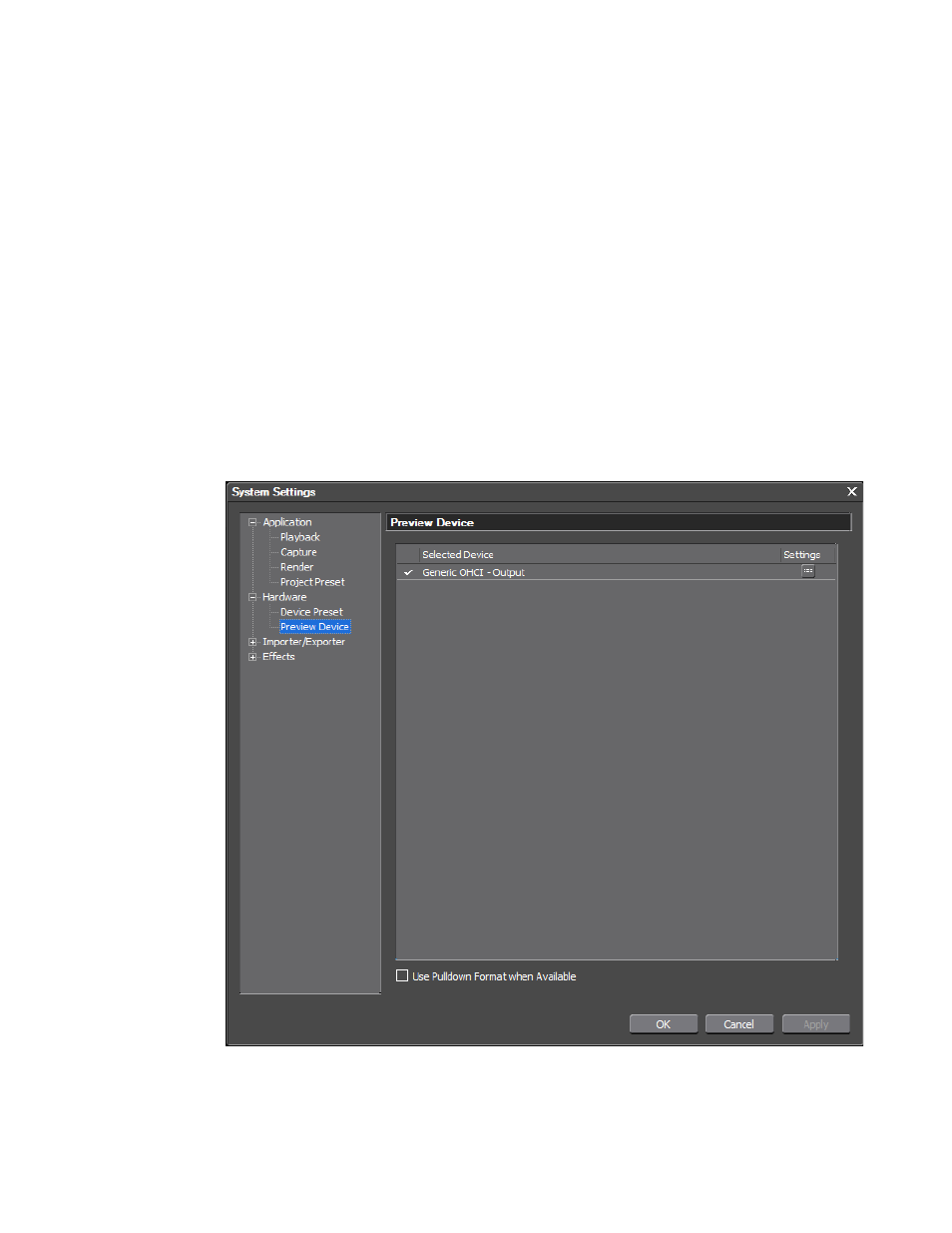

Figure 88. Preview Device Dialog
The attached preview device connection appears in the dialog.
