132 EDIUS NEO — User Reference Guide
Section 2 — Settings and Configuration
Show Level Meter
Selecting Show Level Meter will display audio meter levels as shown above
in
Figure 117 . Default = Selected.
Color and Threshold
Meter bar colors and thresholds at which colors change may be custom-
ized. To change colors, click on the color you wish to change. The color
selector shown in
Figure 119 appears.

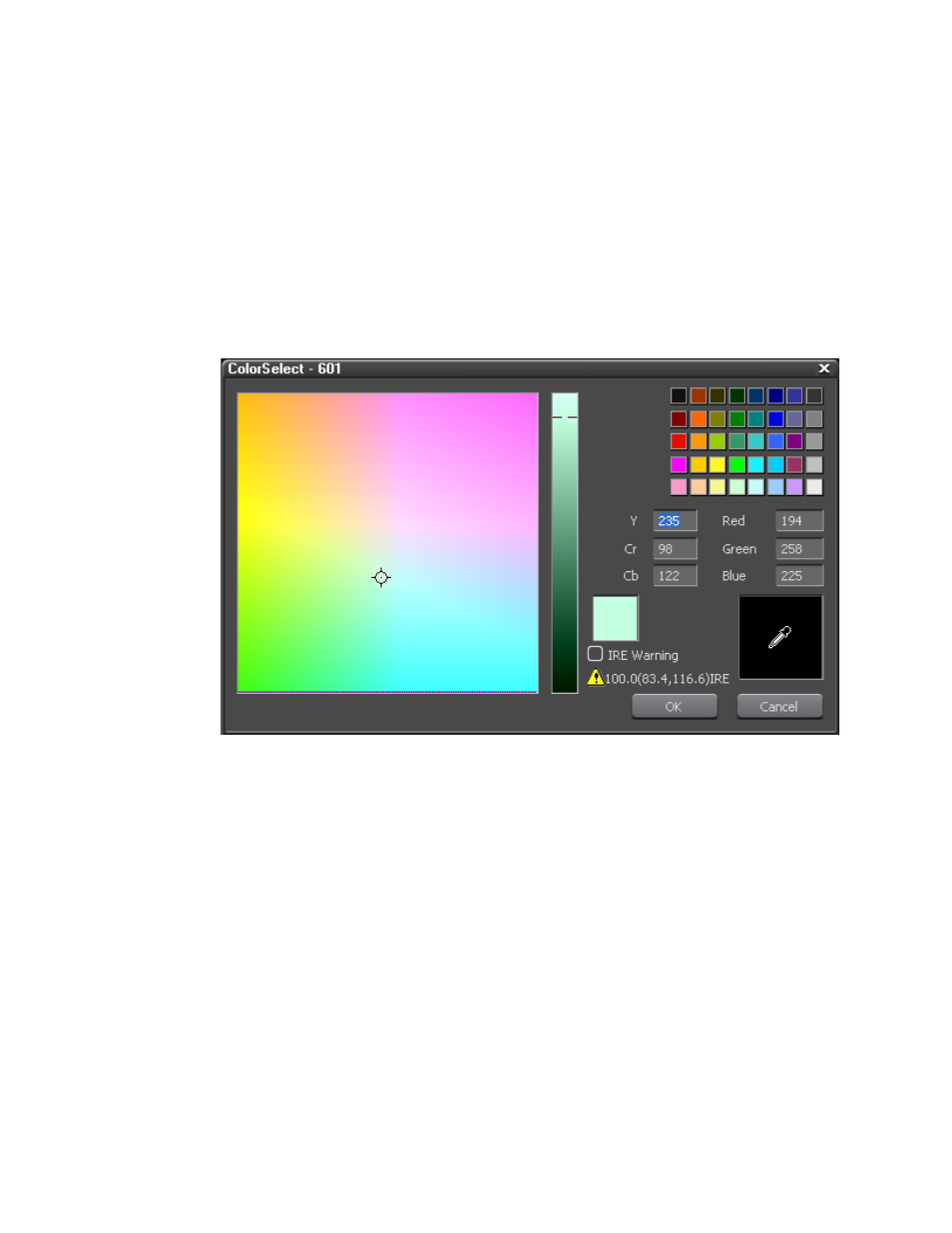

Figure 119. Meter Bar Color Selector
Select the desired color for the meter bar segment.
Note Check the IRE warning box to limit color selection to pre-determined safe IRE
levels.
To change the thresholds, enter the desired dB level for segments two and
three at which meter bar colors will change.
Click the Default* button to return meter colors and thresholds to the default
settings.
Overlay Settings
Overlay settings determine update frequency, zebra preview parameters
and safe area settings. See
Figure 120 .
