602 EDIUS NEO — User Reference Guide
Section 6 — Effects and Titles

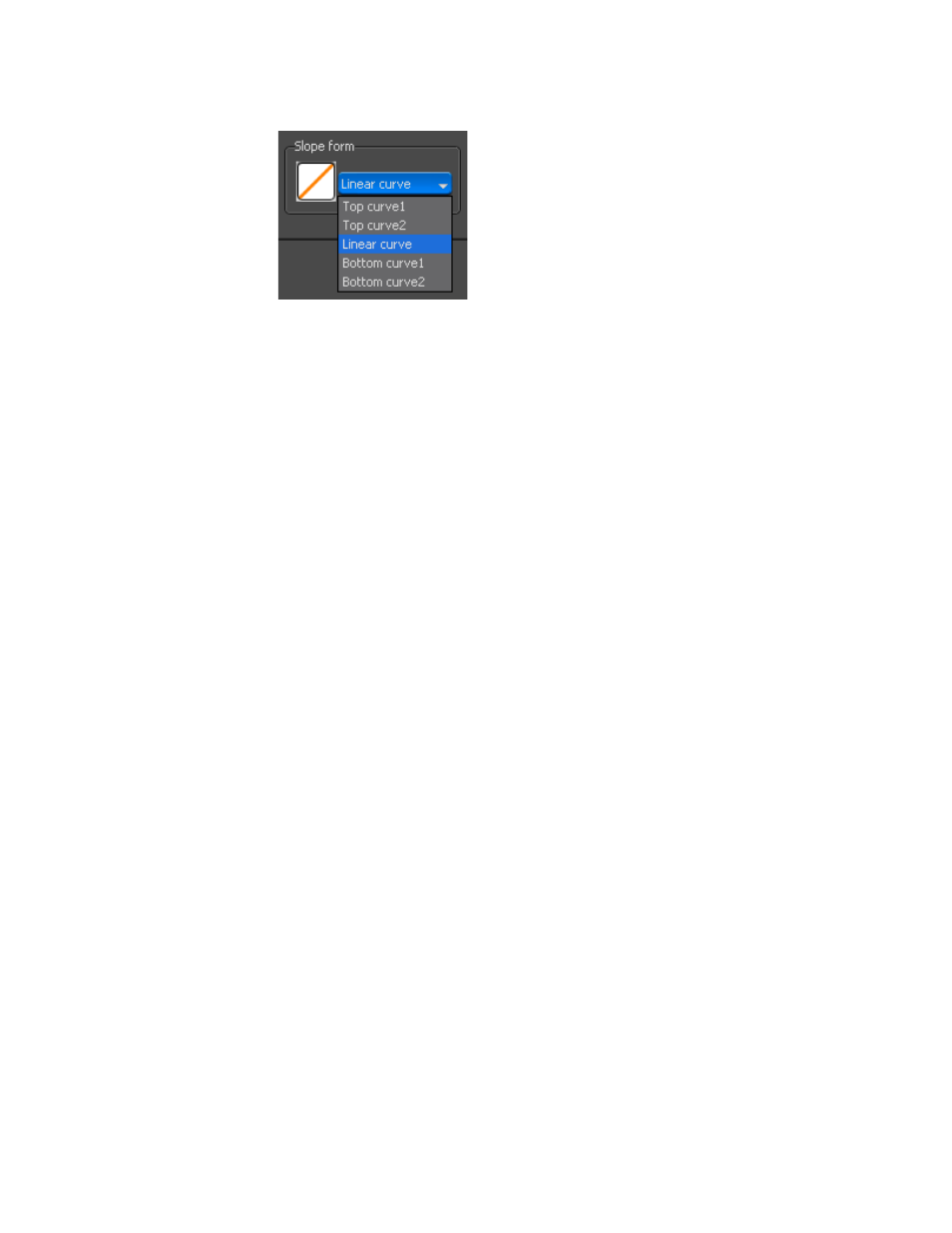

Figure 714. Luminance Slope Shape
Refresh Histogram Button
Click the button to refresh the video histogram in the Luminance Range
Settings window.
Auto Fit Button
Click this button to automatically apply luminance keyer settings. Make
manual adjustments with the slider or numeric entry fields to change the
auto fit settings.
Bypass
Enable this setting to return the image to the original settings and bypass
the luminance settings.
Rectangle Enable
Selecting the Rectangle enable option allows luminancekey settings to be
applied to a selected rectangular area of the video clip instead of the entire
video clip as illustrated in
Figure 715 .
The area outside the rectangle becomes completely transparent and the
background image on the lower numbered track is revealed.
If Outside Rect. Enable is selected, luminancekey settings are applied
within the rectangular area only and the area outside the rectangle displays
the original video with no luminancekey settings applied.
