410 EDIUS NEO — User Reference Guide
Section 5 — Timeline Operations
In Figure 462 , the trim handle is active on the transition Out point; there-
fore, moving the trim cursor to the right would lengthen the transition and
moving it to the left would shorten the transition on the Out side.
Trimming Notes:
• Transitions can be trimmed in the same way described above with clips.
• Set the Timeline cursor on the trim to point in advance to trim more pre-
cisely.
• While trimming, the image of the In (beginning) frame is displayed in
the Recorder and the image of the Out (end) frame is displayed in the
Player.
Note In some trimming operations, there may be four displays; two for the
Recorder and two for the Player.
• In Single Mode, the Recorder shows the images at the edit point on two
displays.
• Select a clip and press the [ ALT ]+[ U ] keys to display the Duration dialog
box; enter the desired duration - the playback speed will be maintained.
The In (beginning) point does not change, but the Out (end) point will
be trimmed.
Trimming Mode
To enter trimming mode, select Mode>Trimming Mode on the Preview
window menu bar as illustrated in
Figure 463 .
Note You may also press the [F6] key on the keyboard to enter trimming mode.

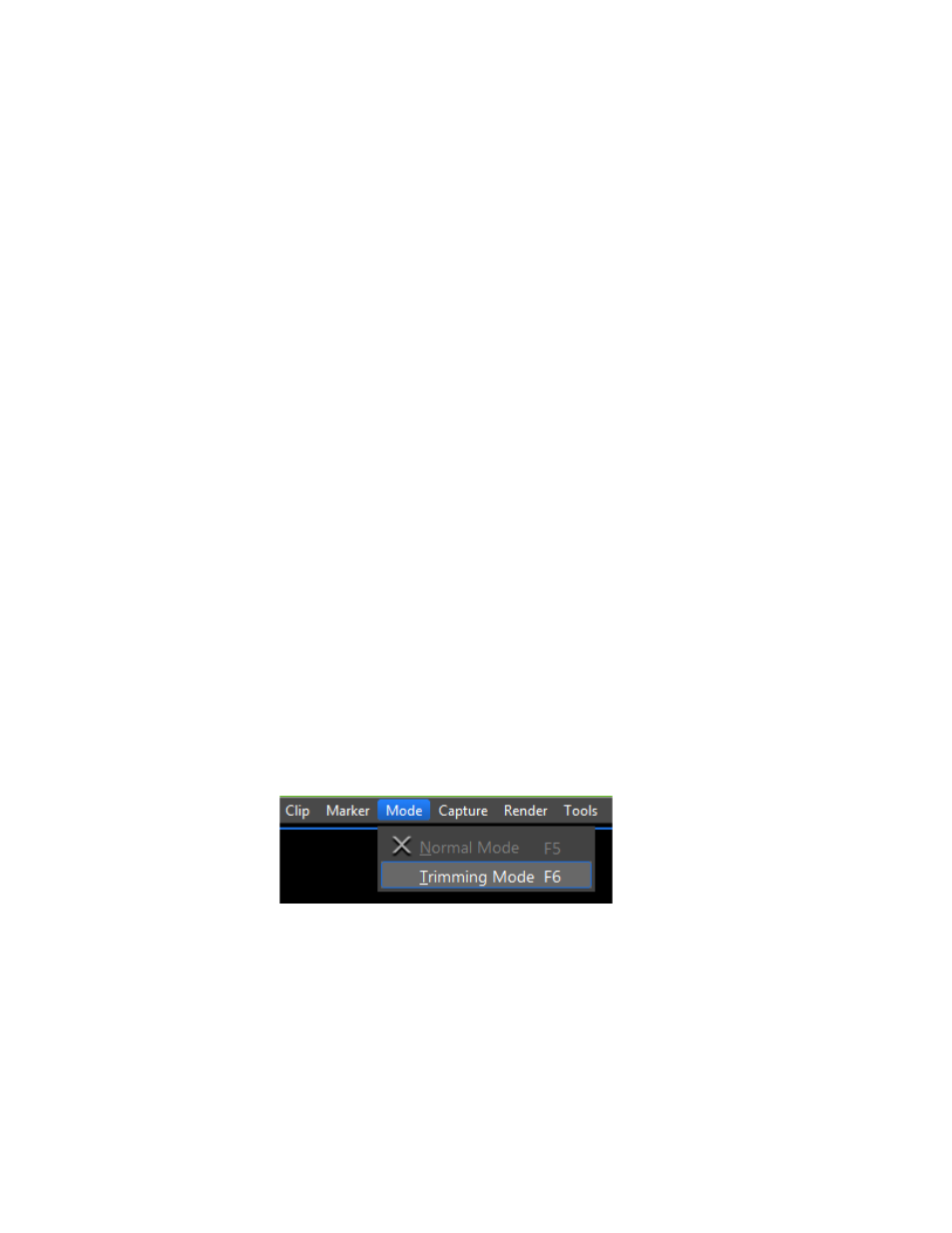

Figure 463. Trimming Mode Selection
The Preview window switches from the normal mode to the Trim window
mode as shown in
Figure 464 (Dual-Mode display) and Figure 465 (Single-
Mode display).
