EDIUS NEO — User Reference Guide 373
Timeline Clip Operations
Video Display Layouter
The layout of video clips can be adjusted in many ways with the Layouter
tools.
To change the video layout, do the following:
1. Right-click the video portion of a clip on a V or VA track on the
Timeline.
2. Select Layouter... from the menu as shown in Figure 423 .
Note Pressing the [F7] on the keyboard also displays the Layouter dialog for the
currently-selected clip.

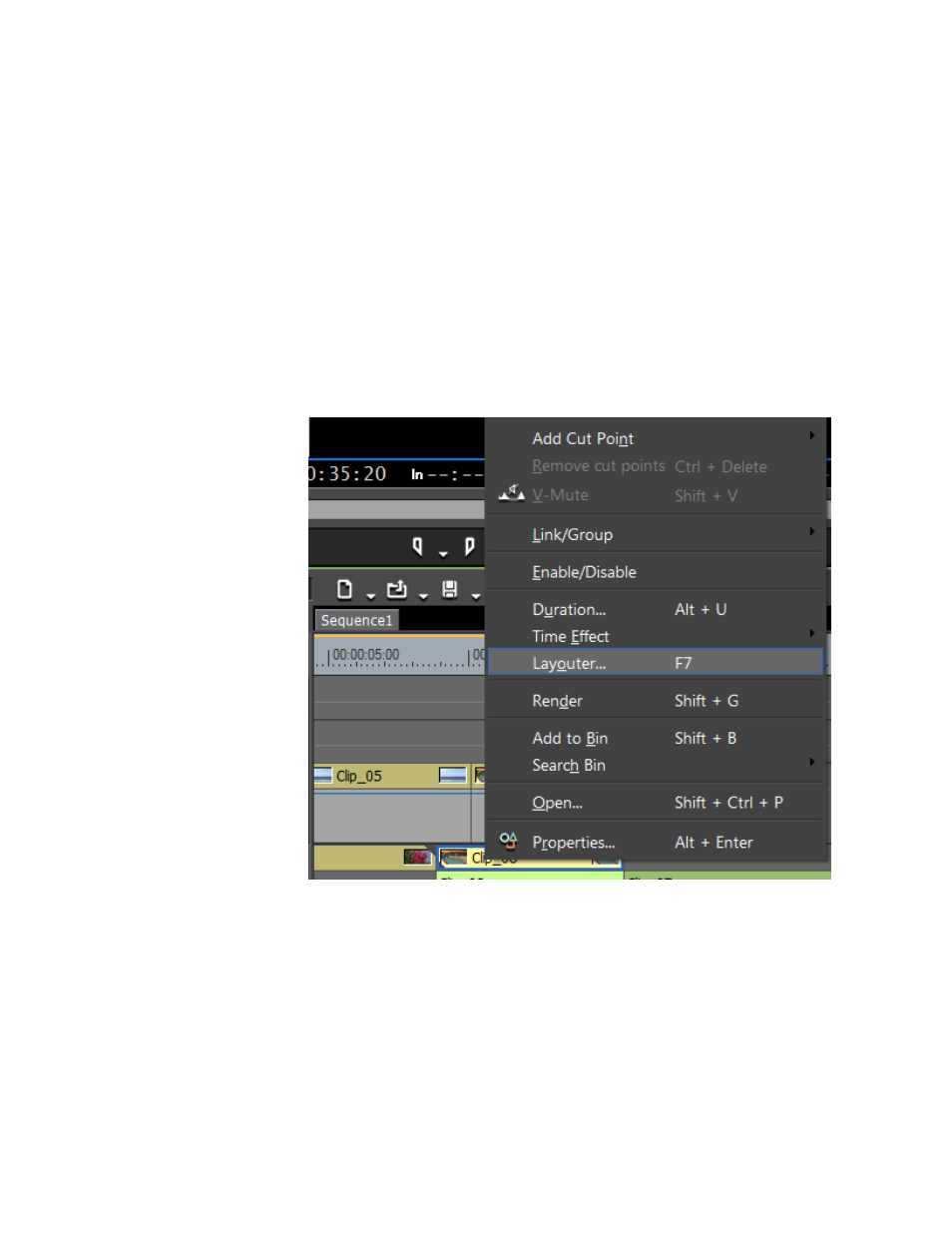

Figure 423. Clip Menu - Layout
The Video Layouter dialog illustrated in Figure 424 appears.
3. Adjust the video layout as desired by referring to the descriptions
below of the Video Layouter dialog functions.
4. Click the OK button on the Video Layout Dialog.
