EDIUS NEO — User Reference Guide 513
Applying Filters to Clips
Alternatively, you may click on the parameter keys in the key list and drag
the adjustment points as desired. This is illustrated in
Figure 595 .

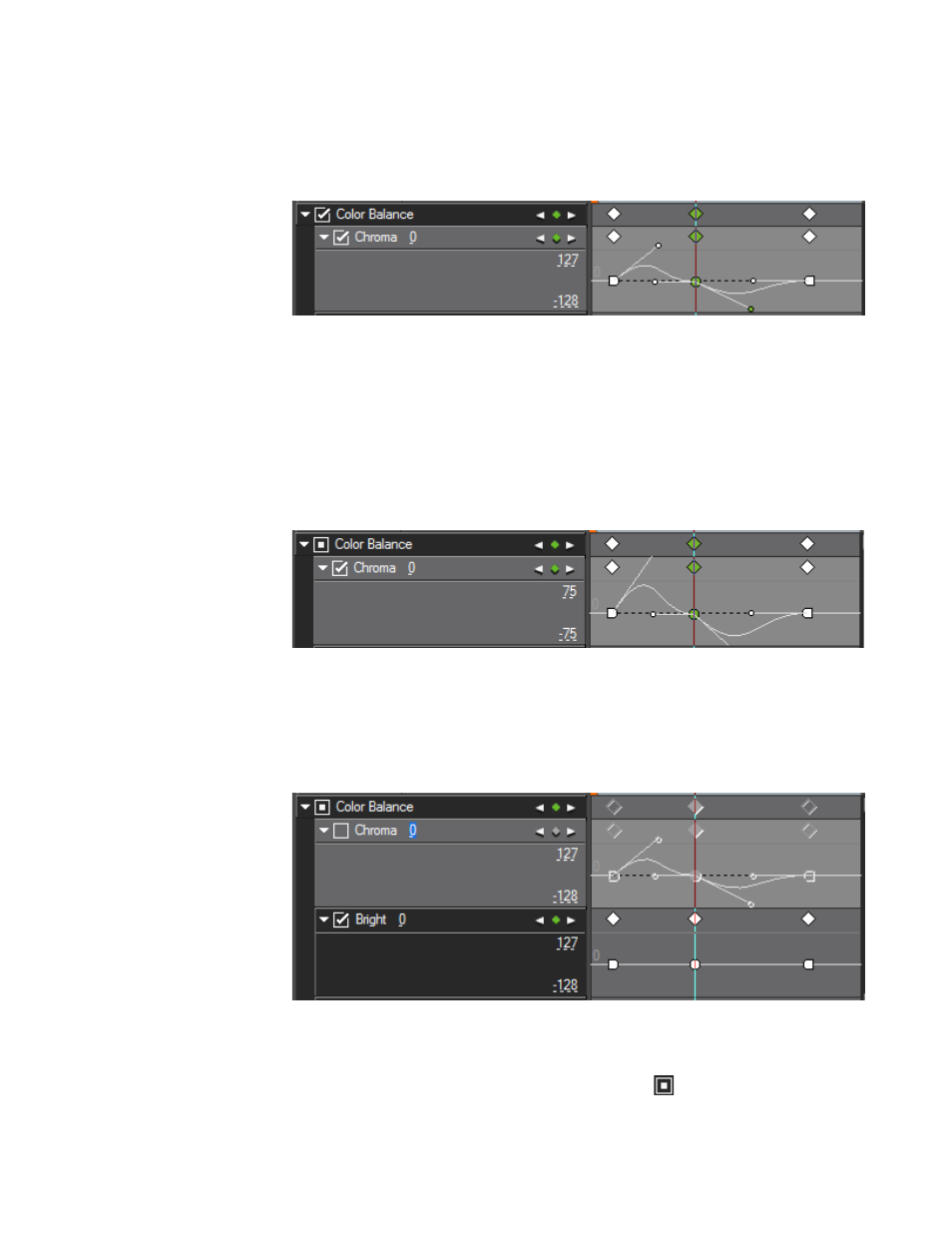

Figure 595. Parameter Adjustment in Key List
The numbers on the right edge of the parameter panel, 127 and -128 in the
example above, are the maximum and minimum values for the graph. To
adjust these numeric values, use any of the numeric value entry methods
explained in Entering Numeric Data
on page 17 .
Figure 596 shows the effect on the graph depicted in Figure 595 with the
maximum and minimum values set to 75 and -75 respectively.
Figure 596. Graph Maximum and Minimum Values Changed
If the parameter is deselected (check removed from parameter checkbox) as
depicted in
Figure 597 , the existing key adjustments remain, but they are
greyed out and may not be changed.
Figure 597. Effect Parameter Deselected
Note In the example above, Chroma is deselected and Bright remains selected. In
the case where at least one parameter is selected and others are deselected,
the checkbox for the effect displays a square
.
