590 EDIUS NEO — User Reference Guide
Section 6 — Effects and Titles

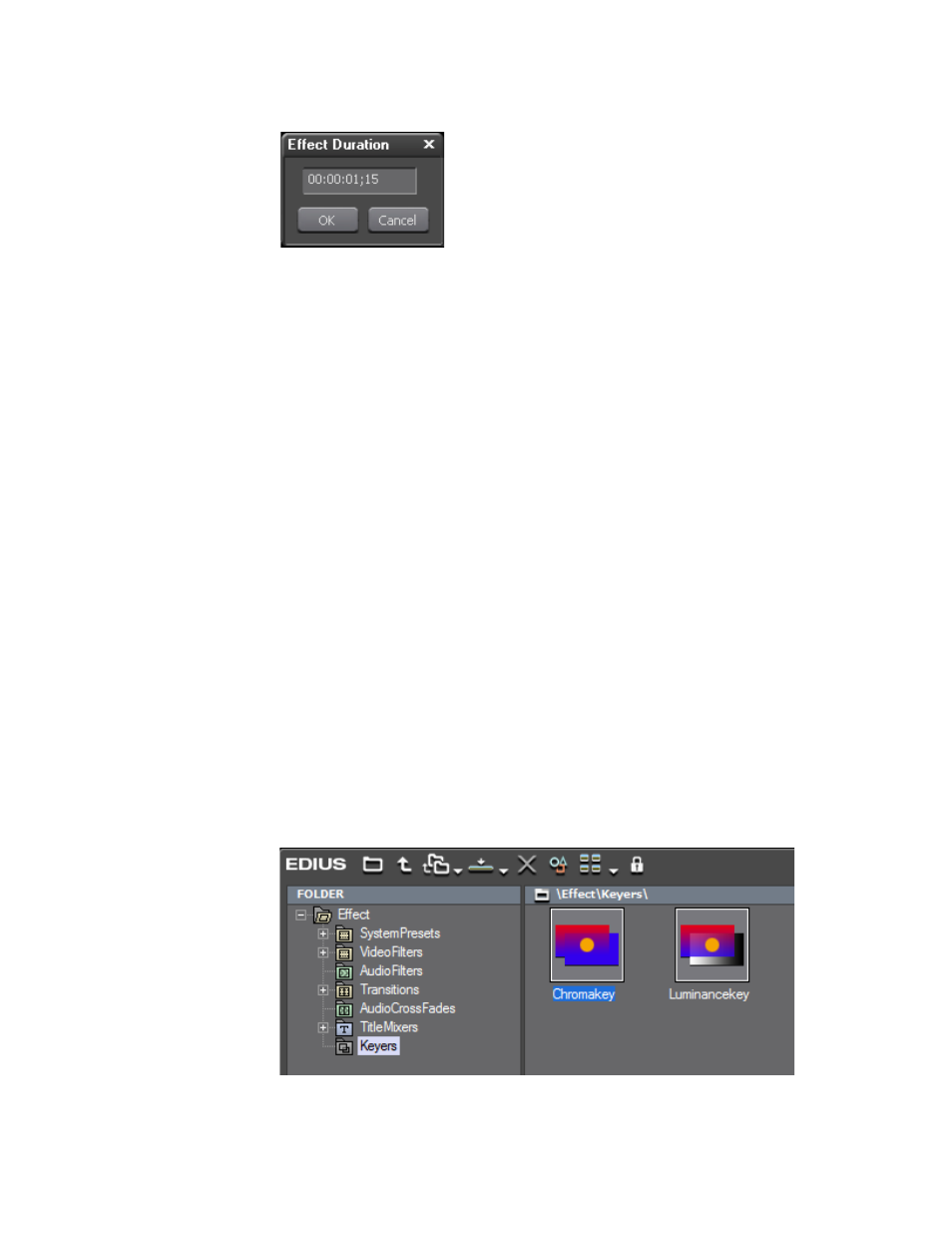

Figure 694. Effect Duration Dialog
3. Enter the desired duration and click the OK button.
Keyers
The keyer effects available in EDIUS NEO are the Chroma Key and the
Luminance Key.
Chroma Key
Chroma key provides the ability to eliminate parts of a video based on color
selection and have those parts replaced by another video source. Often
chroma key video is shot in front of a blue or green screen and the screen
color is then eliminated and replaced with a background video.
To create a chroma key effect, do the following:
1. Select the Keyers folder from the Effect Palette as shown in Figure 695 .
2. Drag and drop the Chromakey effect to the Mixer area of the clip that
will be in the overlay window.
Note If the Effect view is hidden, the keyer effects will be listed under the Keyers
folder in the Effect Palette.
Figure 695. Chroma Key Effect
