EDIUS NEO — User Reference Guide 507
Applying Filters to Clips
To preview the filter effects from the position of the Timeline cursor to the
end of the clip, click the
Play button in the KeyFrame operation buttons.
Figure 588 illustrates some sample YUV Curve settings and Preview set-
tings. The affect of these settings on the video in the Recorder video display
is shown in
Figure 589 .
Note Curve settings are intentionally exaggerated for illustrative purposes.

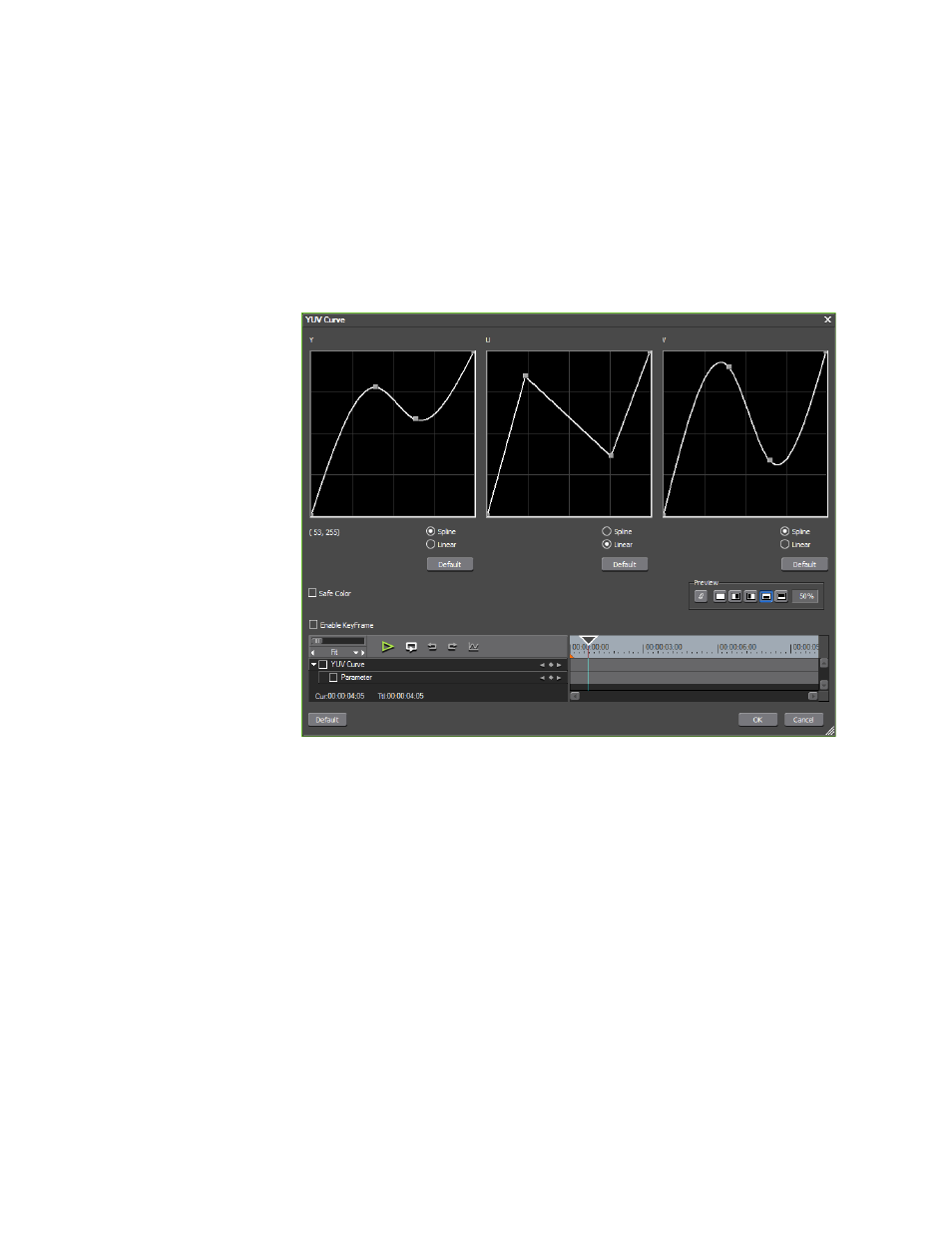

Figure 588. YUV Curve Filter and Preview Settings
The settings in the YUV Curve dialog above result in the preview display
shown below.
