86 EDIUS NEO — User Reference Guide
Section 2 — Settings and Configuration

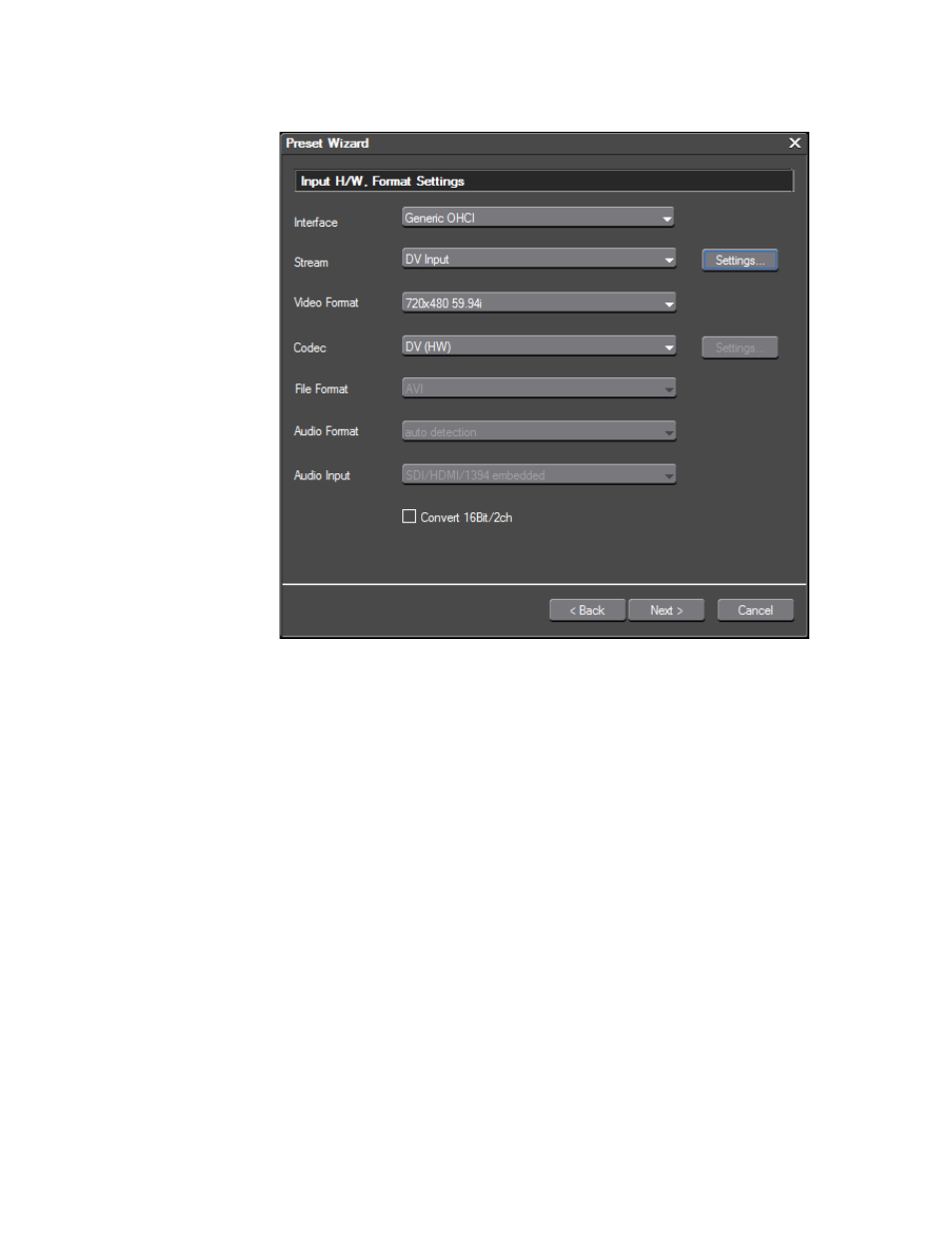

Figure 81. Device Preset Input Hardware Format Settings Dialog
8. Select the desired input (capture) settings for each accessible format in
the format settings dialog.
Note The available selections in the drop-down lists and the accessibility (not
greyed out) of the format settings are device dependent. They will vary based
on the type of device attached to the EDIUS NEO computer. The accessibility
of some settings may also be dependent upon other format settings in the
dialog.
9. Click the Settings... button next to the Stream input selection if it is
active.
The Input settings dialog depicted in Figure 82 appears.
Note If the device is playing, input preview is shown in this dialog.
