Page 92

92
Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Chapter 4
Logic Configuration
Import Application Logic Examples
Follow these steps to add logic examples to your R10_ApplicationCode routine within your application
modules.

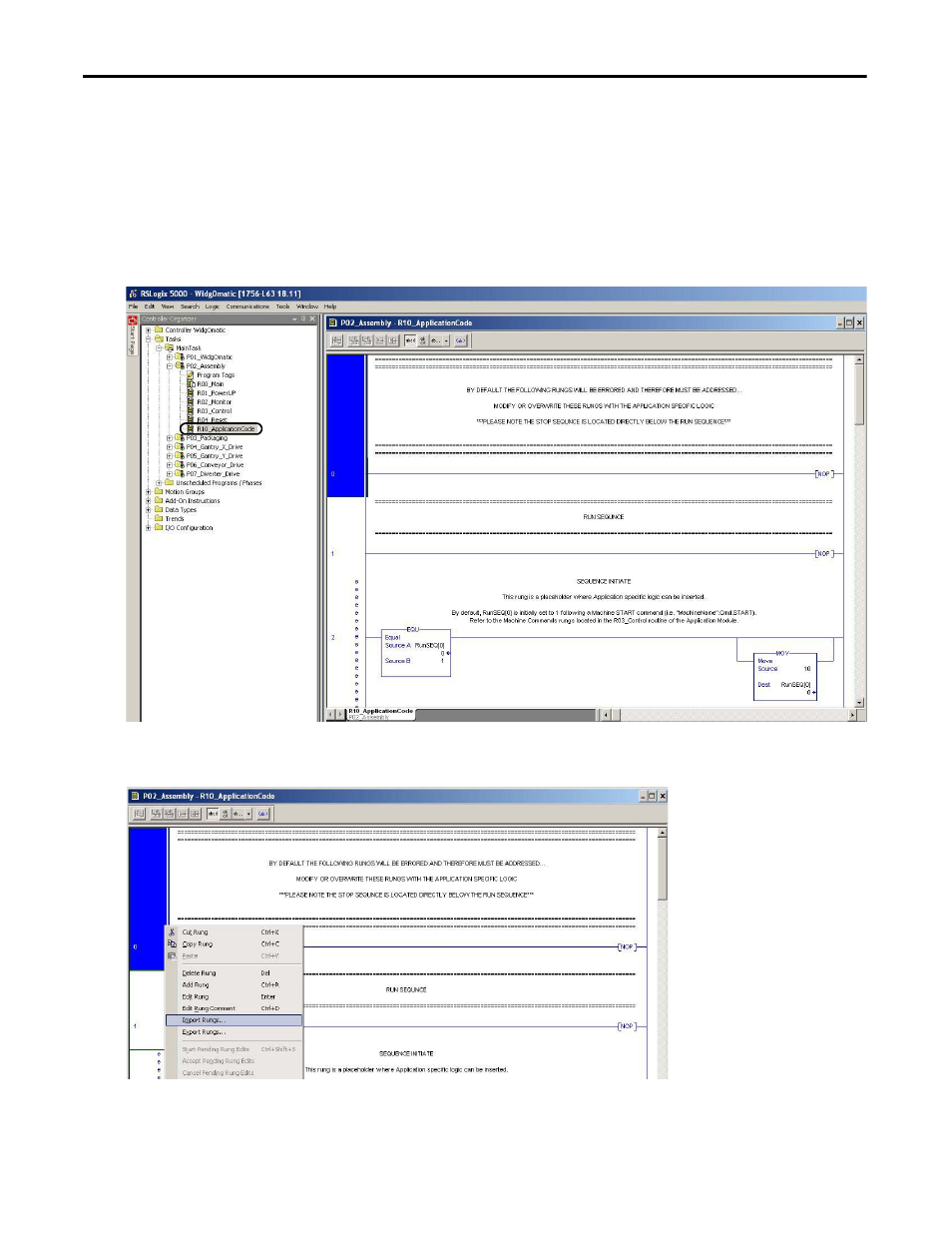

1.
Expand the Tasks folder in the Controller Organizer.
2.
Navigate to and open the R10_ApplicationCode routine within your first application program file.
For the Widg-O-matic application example, the R10_ApplicationCode routine within the P02_Assembly
program was opened.
3.
Select all rungs of the R10_ ApplicationCode routine.
4.
Right-click the selected rungs and choose Import Rungs.
