Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
287
Controller, Network, and Device Configuration Without the DMAT Wizard
Appendix G

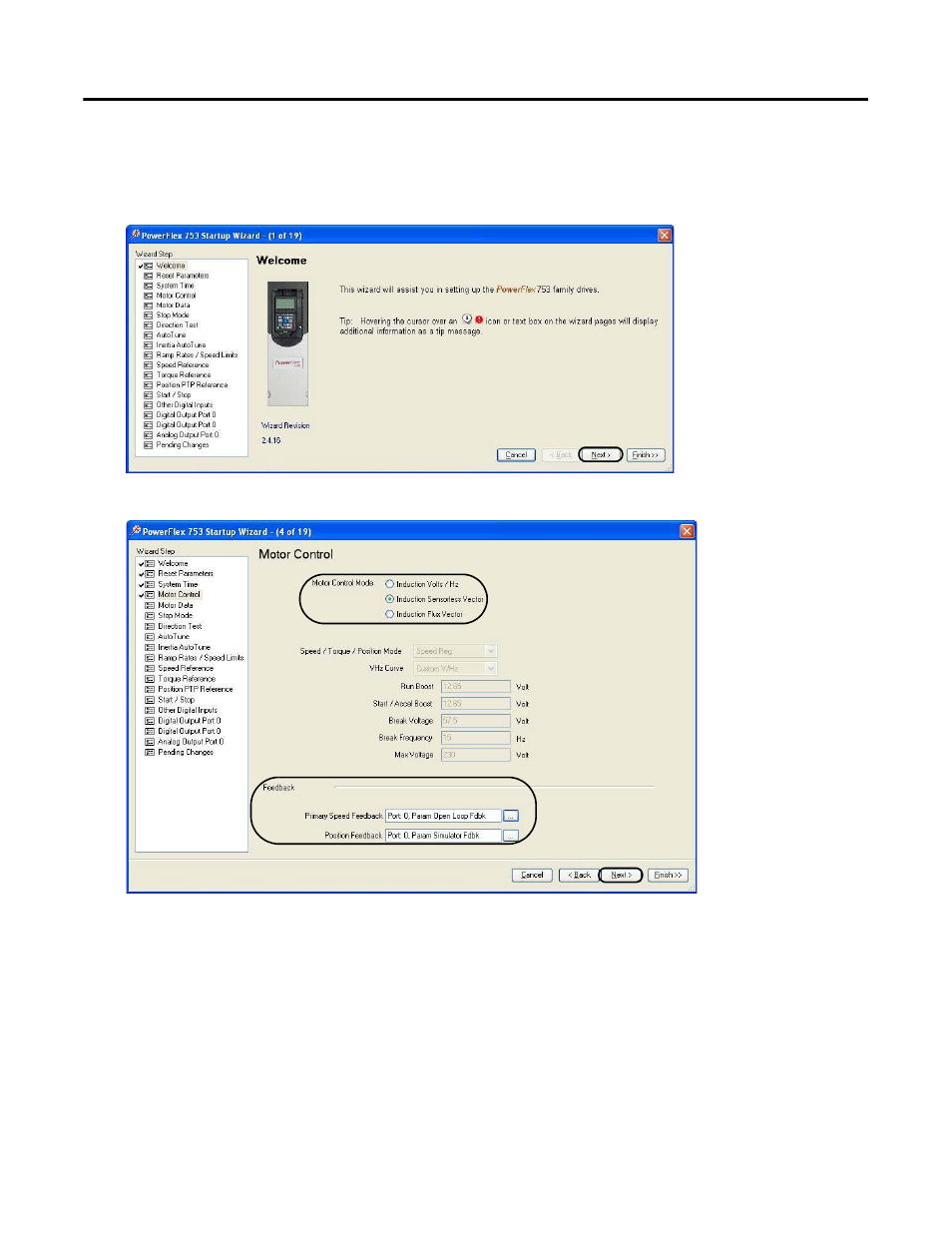

The Startup Wizard dialog box opens. These steps guide you through configuration of the most critical
PowerFlex 753 parameter groups. Other PowerFlex drives may have fewer parameter groups.
6.
Click Next to proceed through the Welcome, Reset Parameters and System Time wizard steps.
The Motor Control wizard step opens.
7.
Select the appropriate Motor Control Mode and Feedback options for your application.
8.
Click Next.
TIP
If motor is unavailable at setup time, select Simulator Fdbk to use the internal simulation feedback capabilities of the
drive.
