Appendix G
Controller, Network, and Device Configuration Without the DMAT Wizard
2.

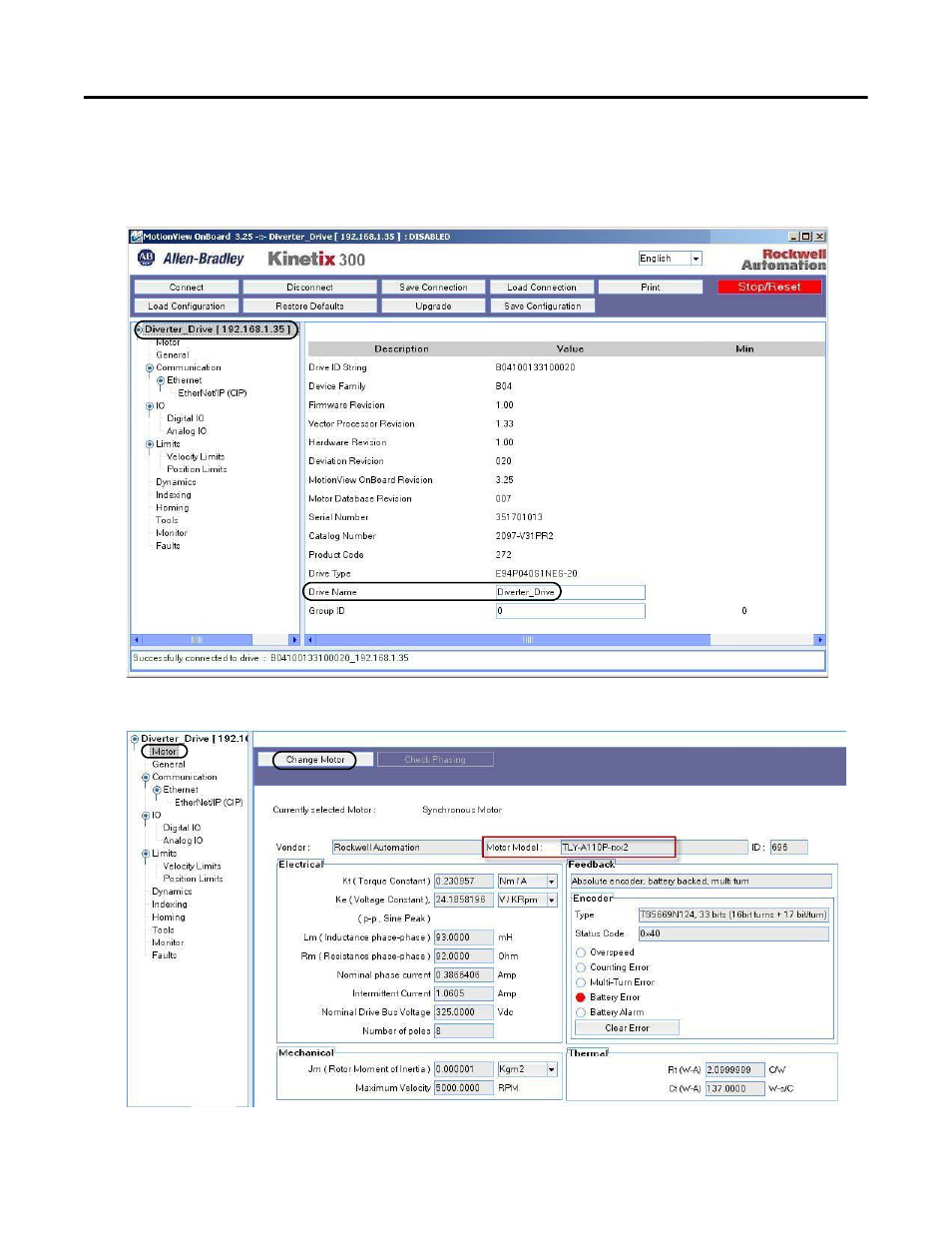

Click the drive identification in the drive organizer and enter your Kinetix 300 drive name in the Drive
Name field (optional).
For the Widg-O-matic application example, Diverter_Drive is the Drive Name.
3.
Select Motor
in the drive organizer.
