178 Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Chapter 7 System Application Guide

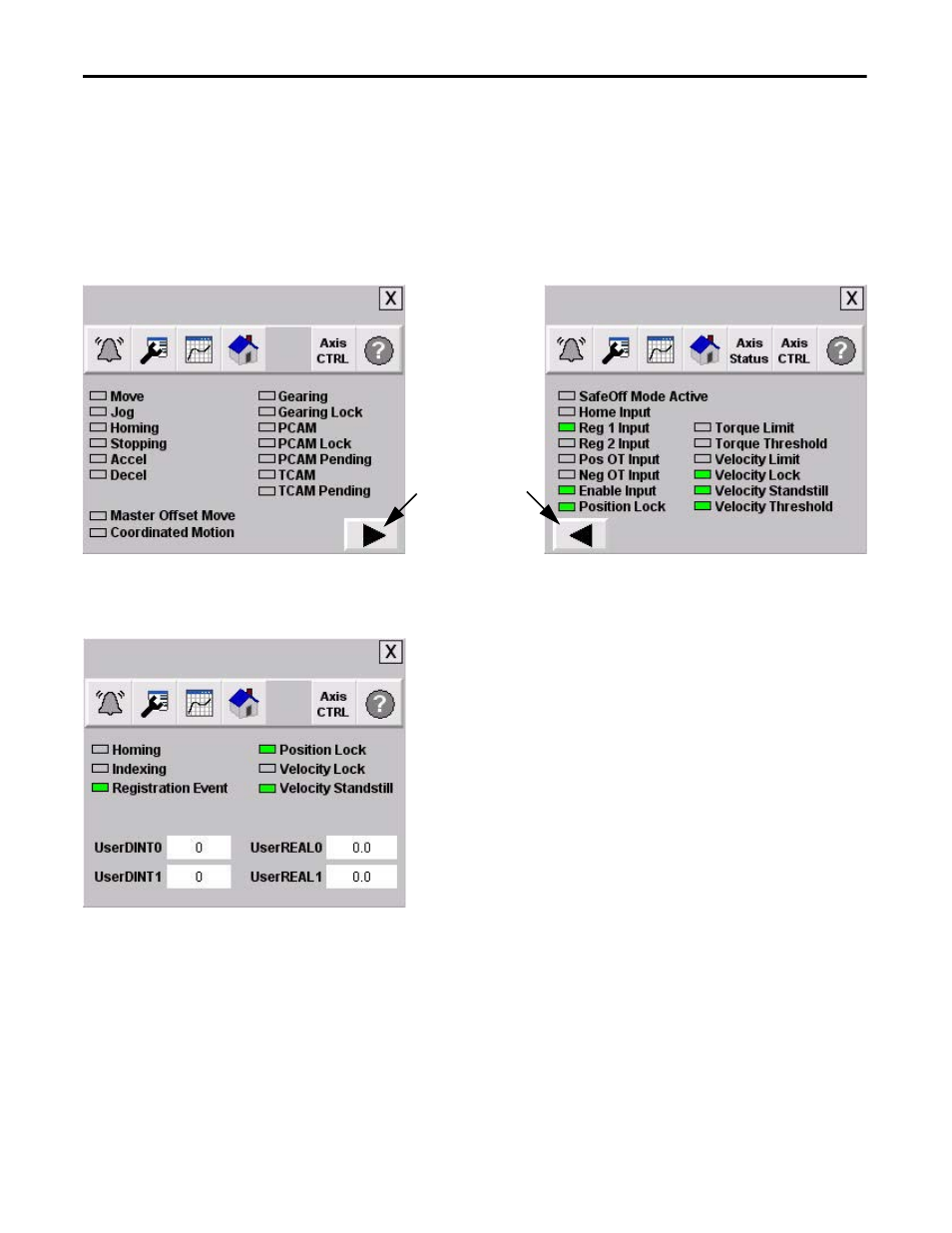

Axis Status Views
The Axis Status views let you display general motion, axis, and drive status.
• Green = ON state
• Gray = OFF state
CIP Motion Axis Status Views
Kinetix 300 Axis Status View
The Kinetix 300 faceplate contains only one axis status view
and is slightly different from the CIP Motion and sercos
faceplates. The Kinetix 300 axis status view also displays the
four Input Assembly Links that are transmitted from the drive
to the controller.
Press arrows to toggle
between display views.
CIP Motion Drive CIP Motion Drive
Kinetix 300 Drive
