Chapter 5
FactoryTalk View ME Configuration
Add the Equipment Status Faceplate Display
1.

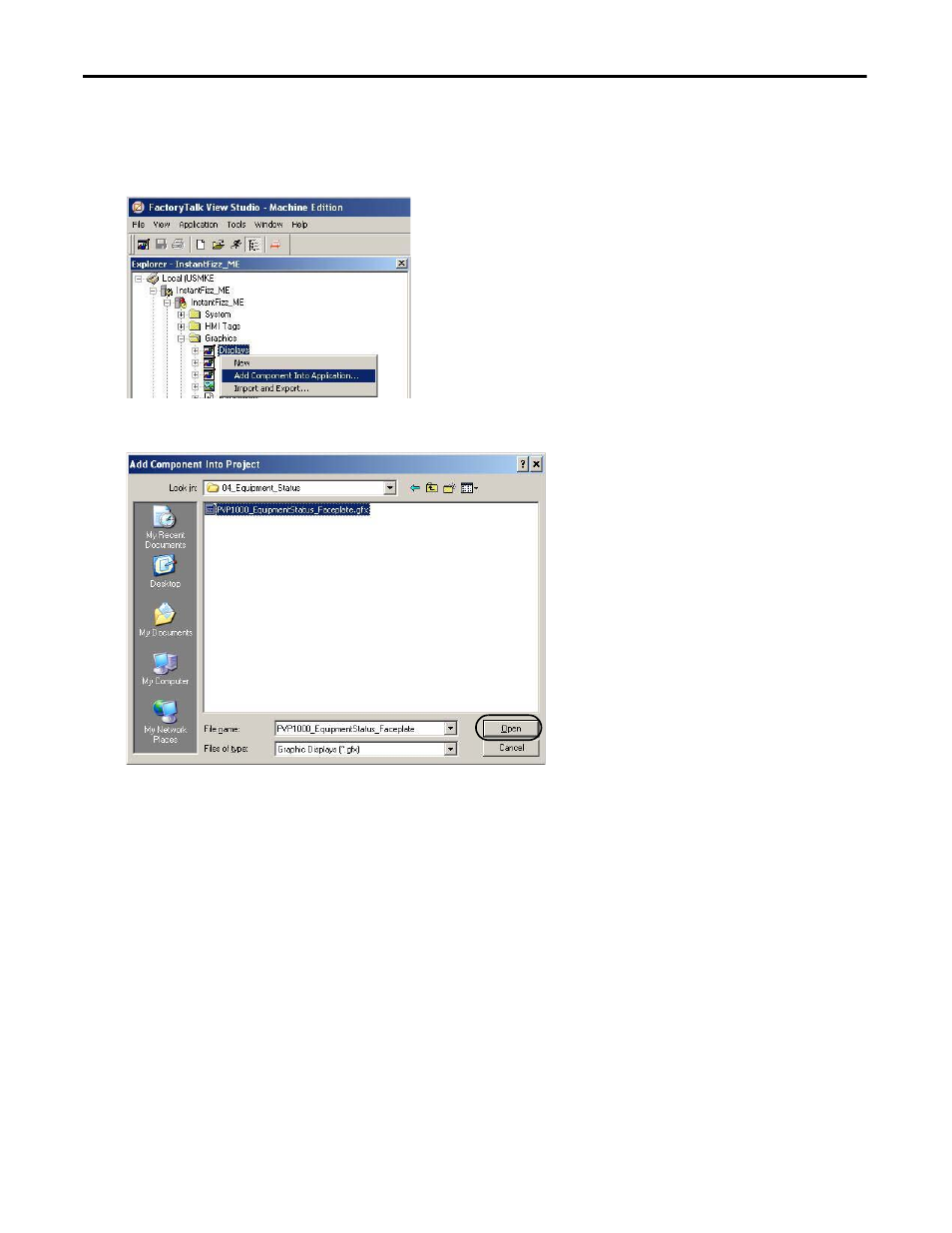

Right-click Displays within the Graphics folder and select Add Component Into Application.
2.
Navigate to the 04_Equipment_Status folder within the toolkit’s files folder.
Your personal computer’s harddrive path is C:\Program Files\RA_Simplification\DMAT\B-Files\
5-HMI\ME\HMI Modules\04_Equipment_Status.
3.
Select the PVP1000_EquipmentStatus_Faceplate.gfx file.
4.
Click Open.
