Rockwell Automation 193 Drives and Motion Accelerator Toolkit Quick Start User Manual
Page 80

80
Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Chapter 4
Logic Configuration
Set Visible Rows for Equipment Status Faceplate for Energy Monitoring
If you plan to use the Equipment Status faceplate with Energy Monitoring in your HMI application, follow these
steps to set the Inp_NumRowsVis tag value within the energy object AOI of the device you intend to place in the
first row.
1.
Determine how many of the nine available rows you will use in the Equipment Status faceplate for Energy.
Refer to
for an overview of the faceplate so you can determine how many status
rows you require and what device you would like to place in the first row.
2.

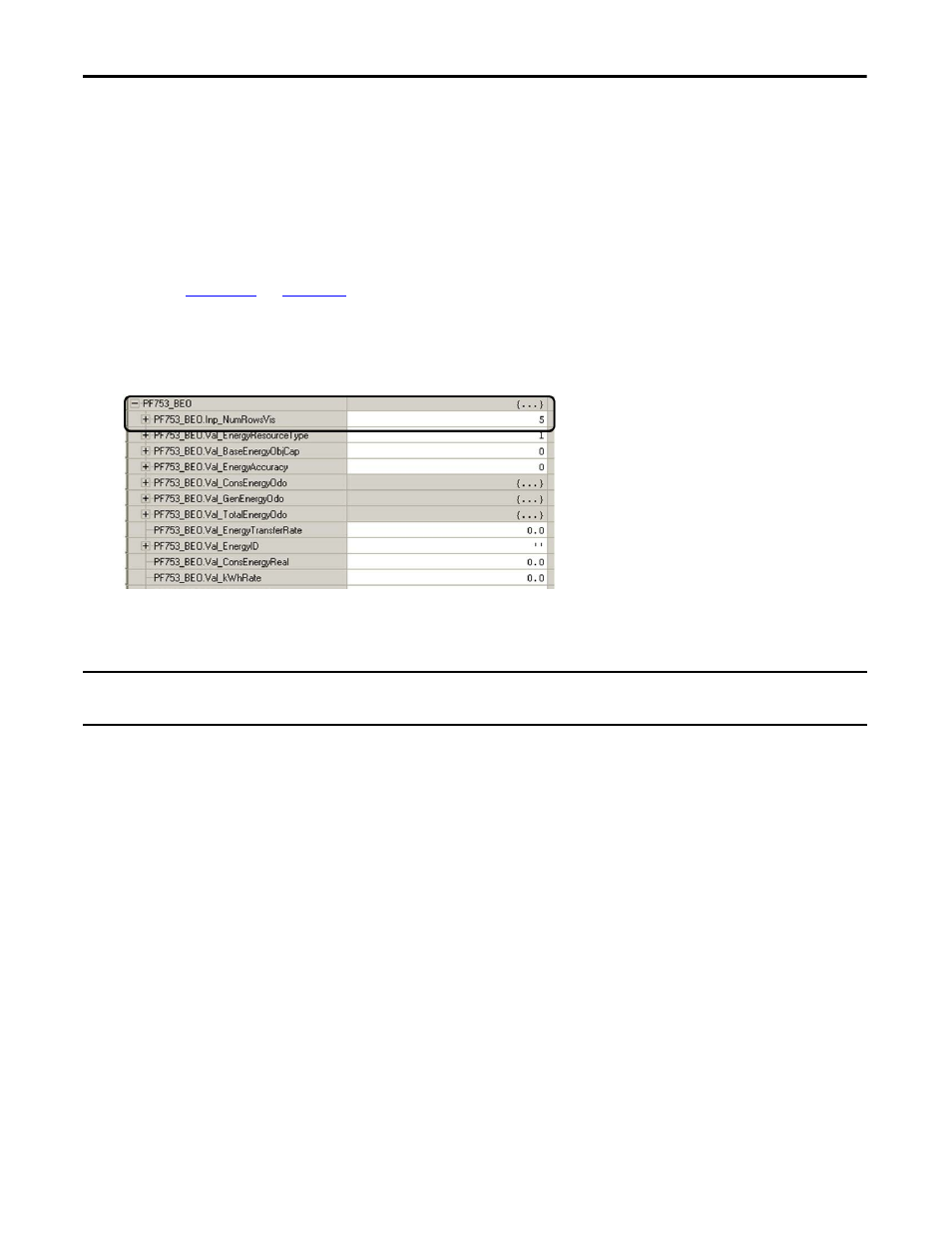

Open the controller tags and expand the energy object tag for the device located in the first row of the
Equipment Status faceplate for Energy (DriveName_BEO).
3.
Enter the number of required rows as the tag value for the Inp_NumRowsVis attribute.
In this example, the number of required rows is 5.
IMPORTANT
You must use the device module routines with energy support if you plan to use the equipment status faceplate for energy
monitoring.
