Appendix D Logix Designer Communication and Controller Configuration

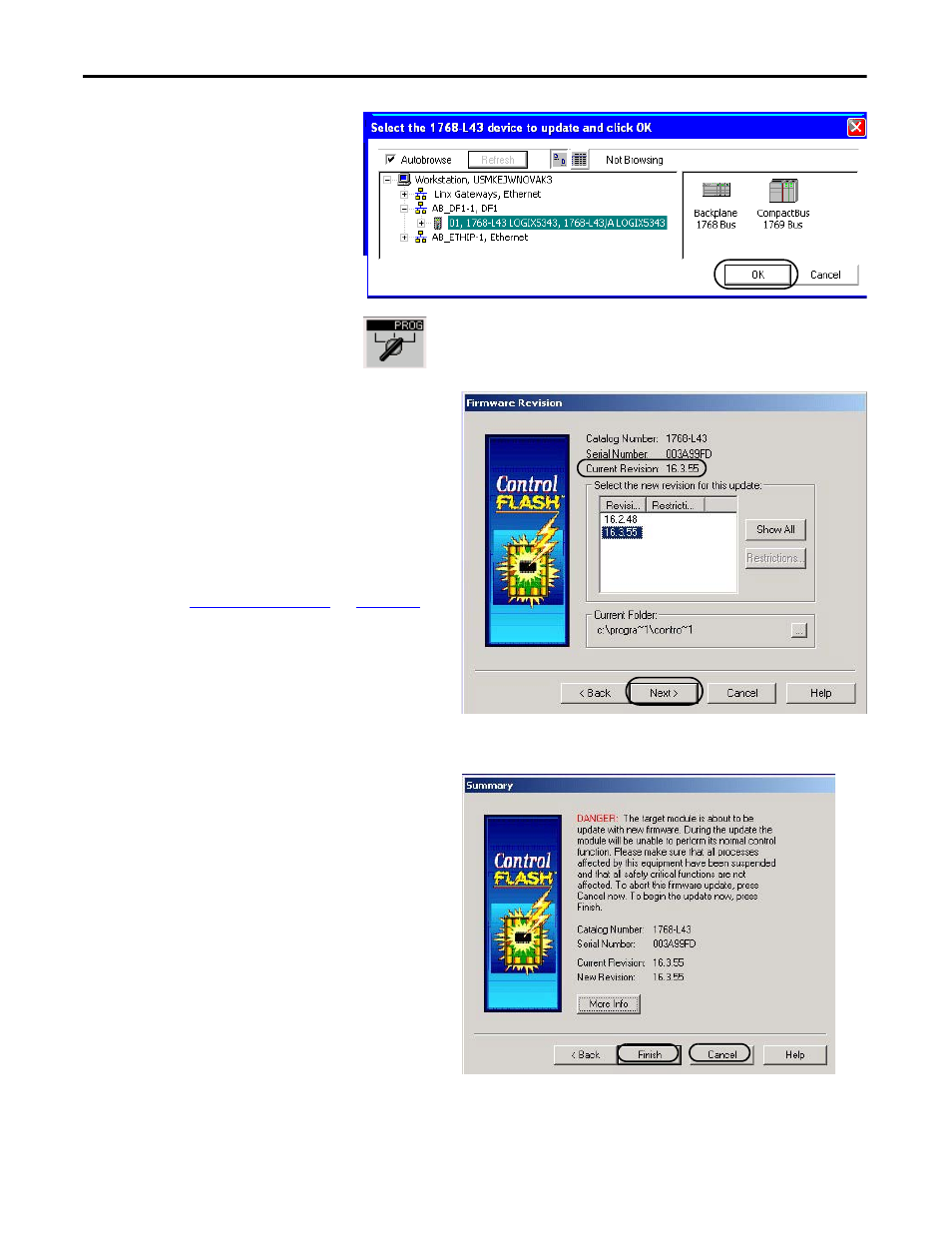

6. Under AB_DF1-1, select the
1768-L43 controller.
7. Click OK.
8. Move the controller keyswitch
to Program.
9. Compare the current drive firmware revision
to the latest revision listed.
If the Current Revision matches the newest
Revision listed, then your controller already
has the latest firmware and a firmware update
is not needed.
a. Click Cancel to abort the firmware
upgrade.
b. Go to Assign IP Addresses on page 241 .
If the Current Revision does not match the
latest revision listed, click Next.
10. Click Finish, then click Yes to start the
firmware update.
When the controller is updated, the status box
displays Update Complete.
11. Click Ok.
12. Click Cancel to close the ControlFLASH
software.
13. Click Yes.
TIP If you are unsure which revision to use, select the latest.
