Page 190

190
Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Chapter 7
System Application Guide

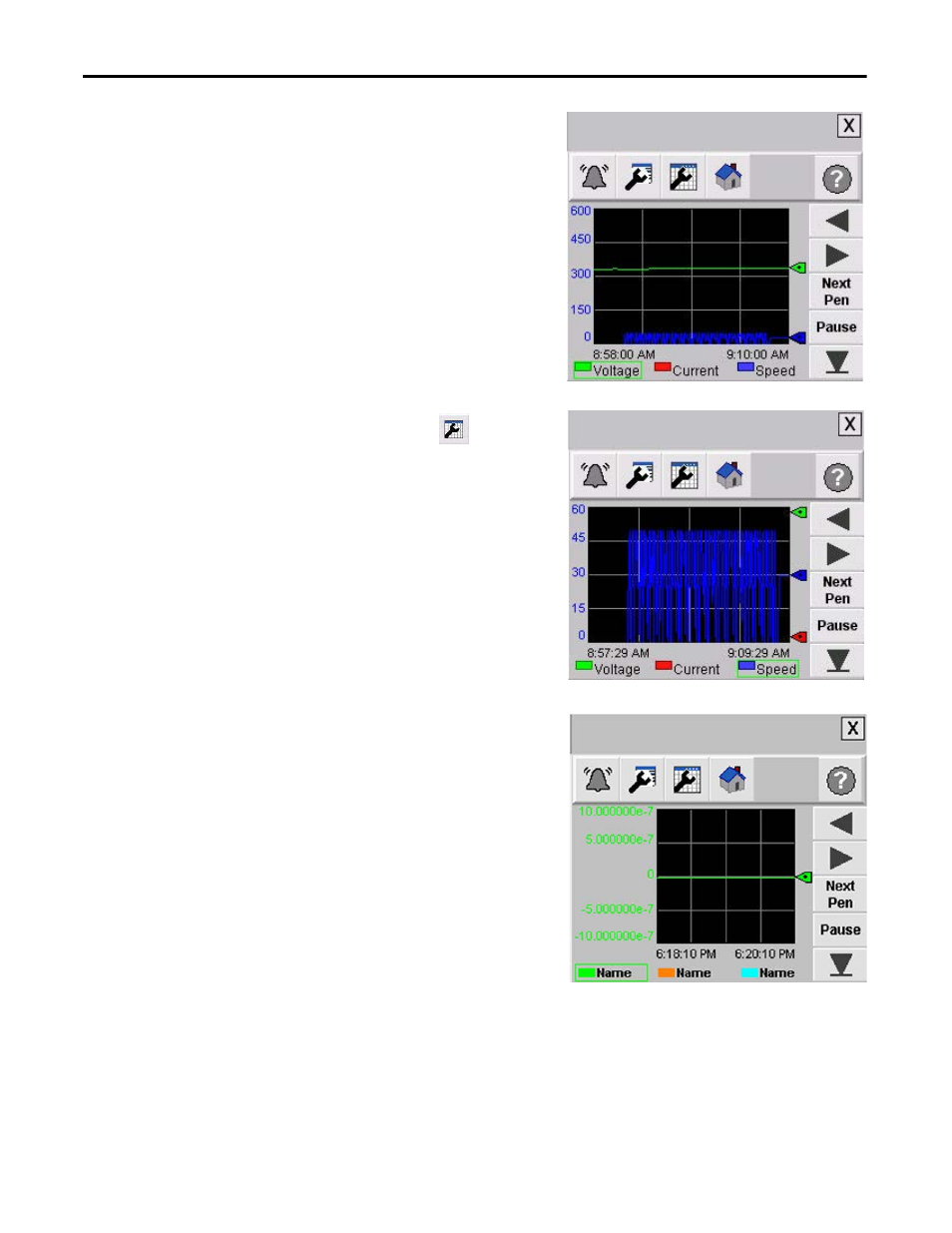

In this example, the Voltage trend is selected and the
Y-axis scale is adjusted accordingly.
3.
Press the trend configuration toolbar button
to set the
minimum and maximum values of the trend scale.
This HMI faceplate applies to the PowerFlex 525 drives.
The trend scale configuration screen opens.
PowerFlex Drive
PowerFlex Drive
PowerFlex 525 Drive
