Page 162: Start-up routines

162
Rockwell Automation Publication IASIMP-QS019E-EN-P - August 2013
Chapter 6
System Commissioning
Commissioning PowerFlex 4-class Drives
These commissioning procedures apply to PowerFlex 4, PowerFlex 40, PowerFlex 40P, and PowerFlex 400 drives.
For more information on drive commissioning, refer to the appropriate user manual listed in
Apply Power to the Drive
Apply control power first if using an auxiliary power supply option, and then apply three-phase drive power.
Status Indicators
Drives are ready when the Fault status indicator is off.

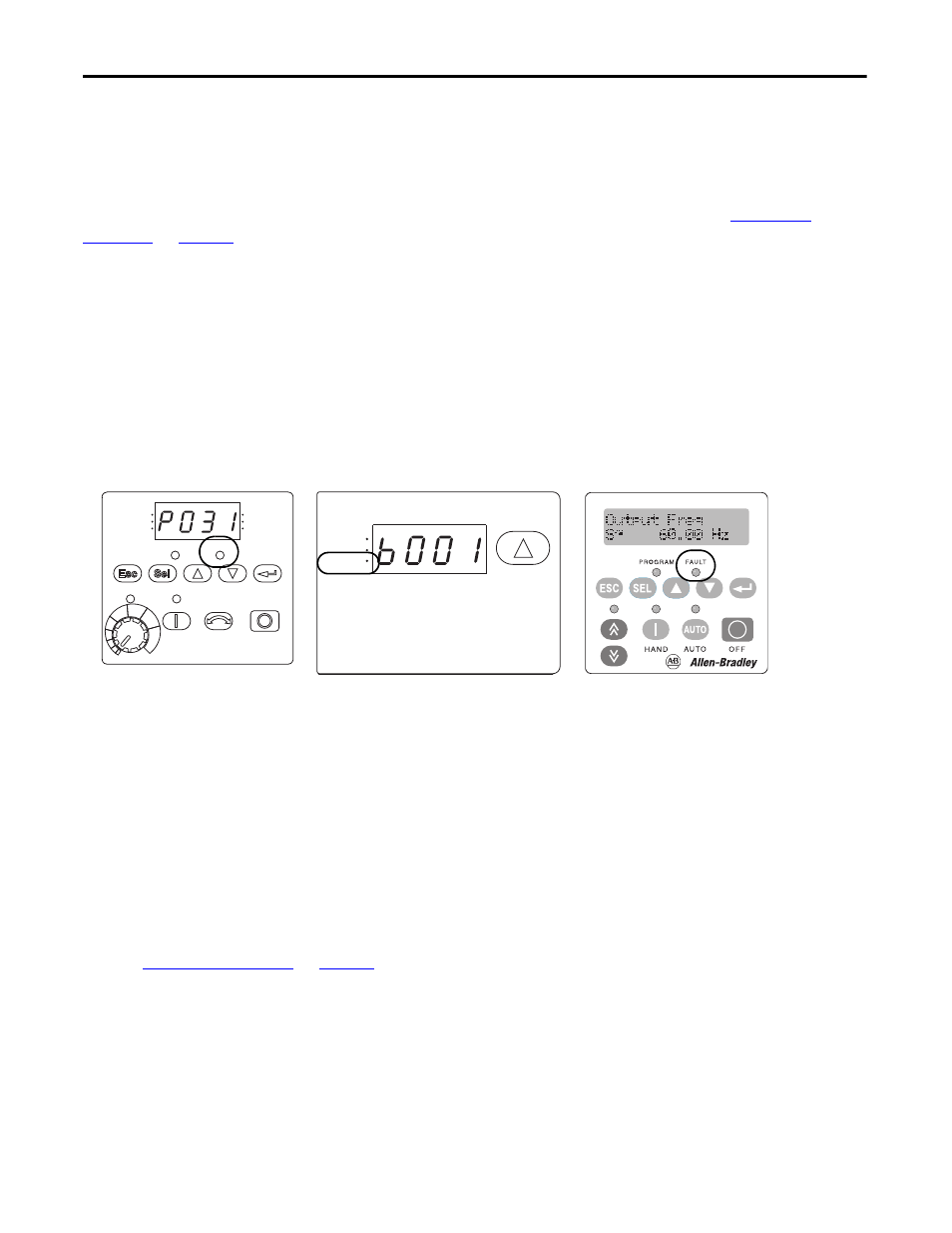

PowerFlex 4, 40, 40P, and 400 Drive Status Indicators
Start-up Routines
The drive integrated keypad can assist in configuration and start-up by organizing the commonly used
parameters into the basic group. An assisted start-up routine is available for the PowerFlex 4-class drives through
the Start-Up Wizard from one of the software tools. The software-based start-up wizard is available in
DriveExplorer software, DriveTools, or with the Custom Download AOP for the PowerFlex 4-class drives. The
start-up wizard steps through configuration and tuning.
For more information on drive start-up routines for PowerFlex 4-class drives, refer to the appropriate user manual
listed in
FAULT
VOLTS
AMPS
HERTZ
RUN
FWD
REV
PROGRAM
RUN
REV
FAULT
PowerFlex 4 or 40 Drives
Status Indicators
PowerFlex 400 Drives
Status Indicators
PowerFlex 40P Drives
Status Indicators
