Logix Designer Communication and Controller Configuration
Appendix D

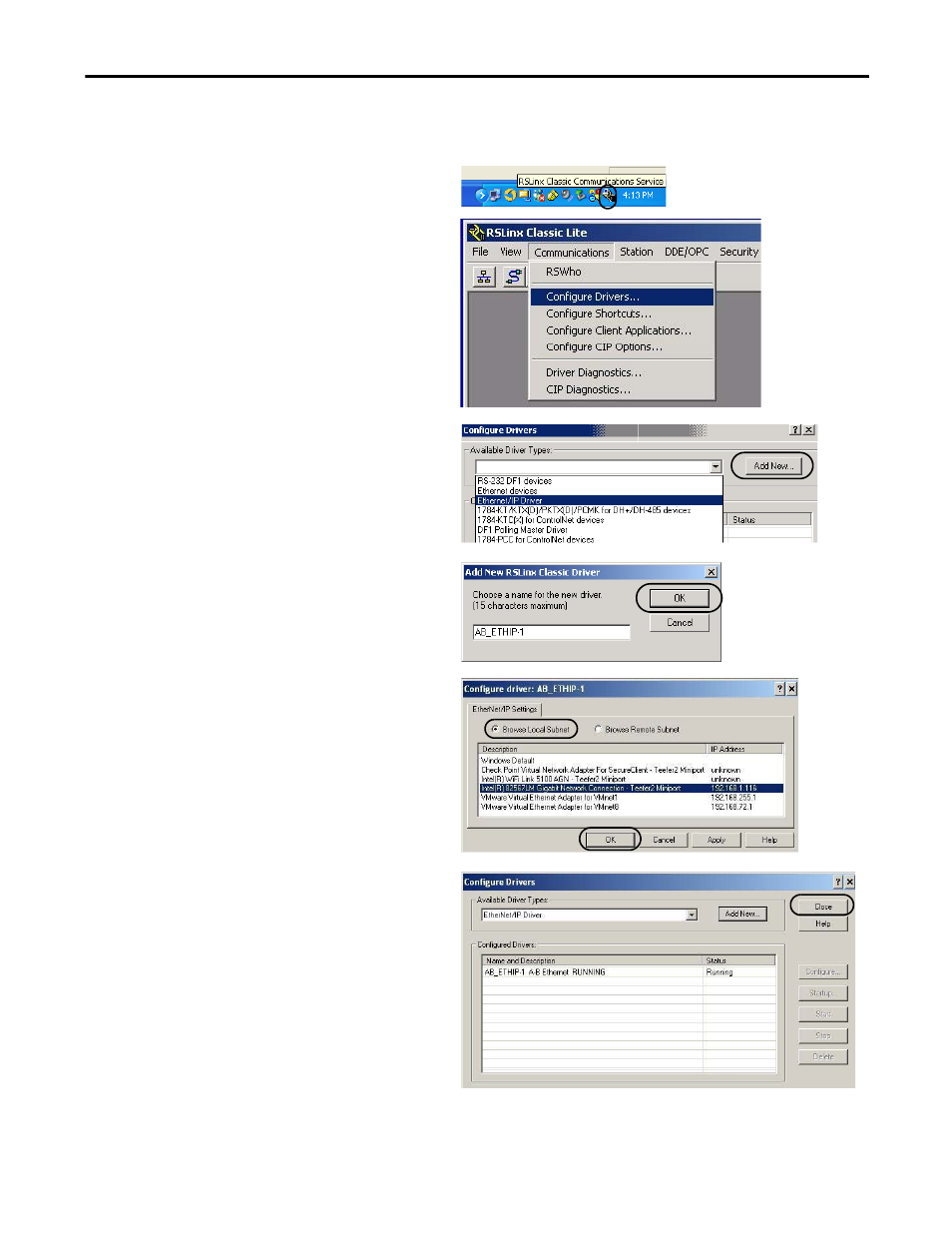

Configure the EtherNet/IP Driver
1.
Click the RSLinx icon in the system tool tray
to start the RSLinx Classic software.
2.
From the Communications menu, choose
Configure Drivers.
The Configure Drivers dialog box opens.
3.
From the Available Driver Types pull-down
menu, choose EtherNet/IP Driver.
4.
Click Add New.
5.
Click OK to accept the default name.
The Configure Driver dialog box opens.
6.
Select Browse Local Subnet and associated
personal computer EtherNet/IP port.
7.
Click OK.
The EtherNet/IP driver is added to the
Configured Drivers list.
8.
Verify that the status of the driver indicates
Running.
9.
Click Close.
