Appendix E

Create and Add BOM Device Modules Without the DMAT Wizard

4.

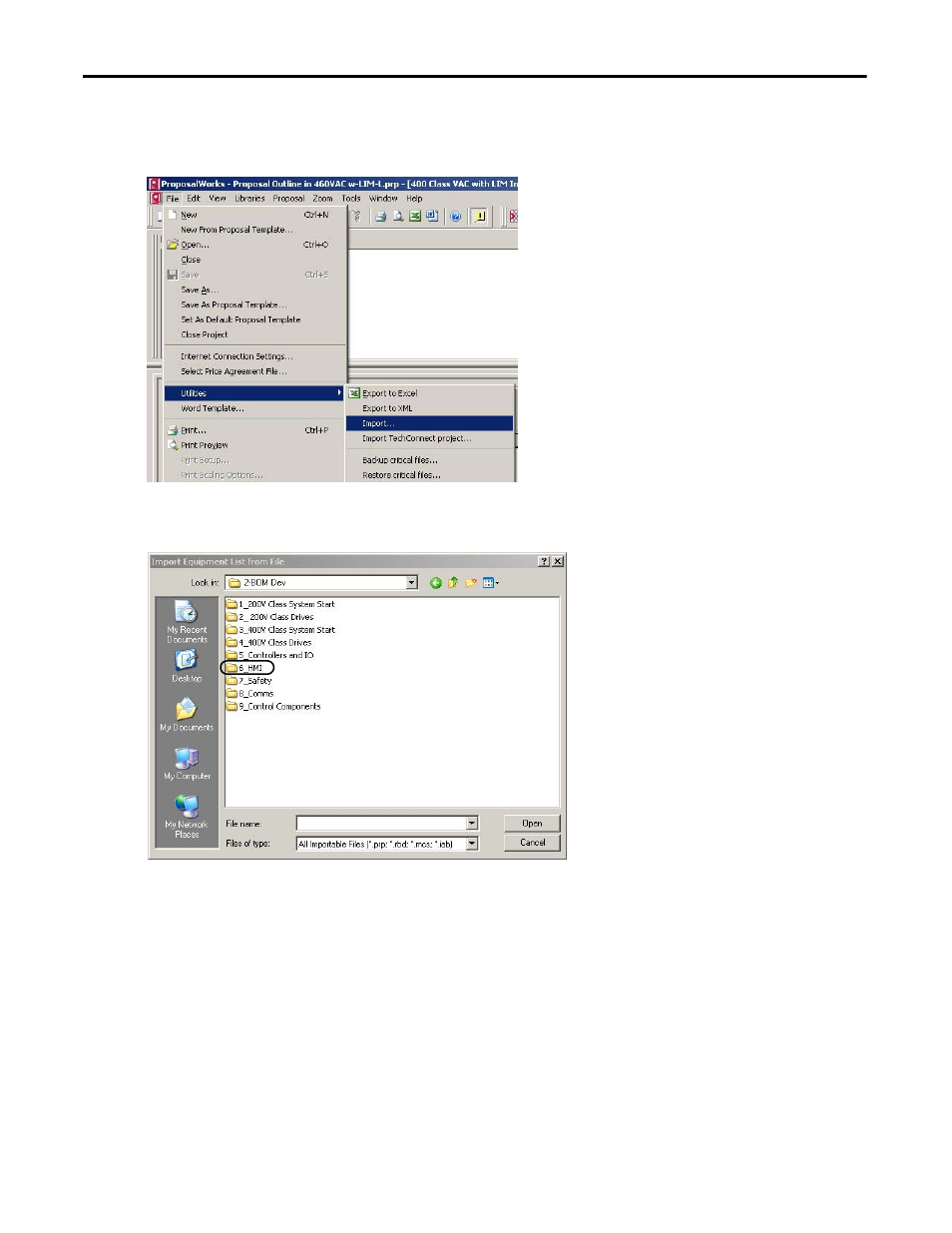

Import HMI BOM files.

a. Click File and choose Utilities>Import.

The Import Equipment List from File dialog box opens.

b. Navigate to the 2-BOM Dev folder within the toolkit’s Files folder.

Your personal computer’s harddrive path is
C:\Program Files\RA_Simplification\DMAT\B-Files\2-BOM Dev.

c. Double-click the 6_HMI folder.
